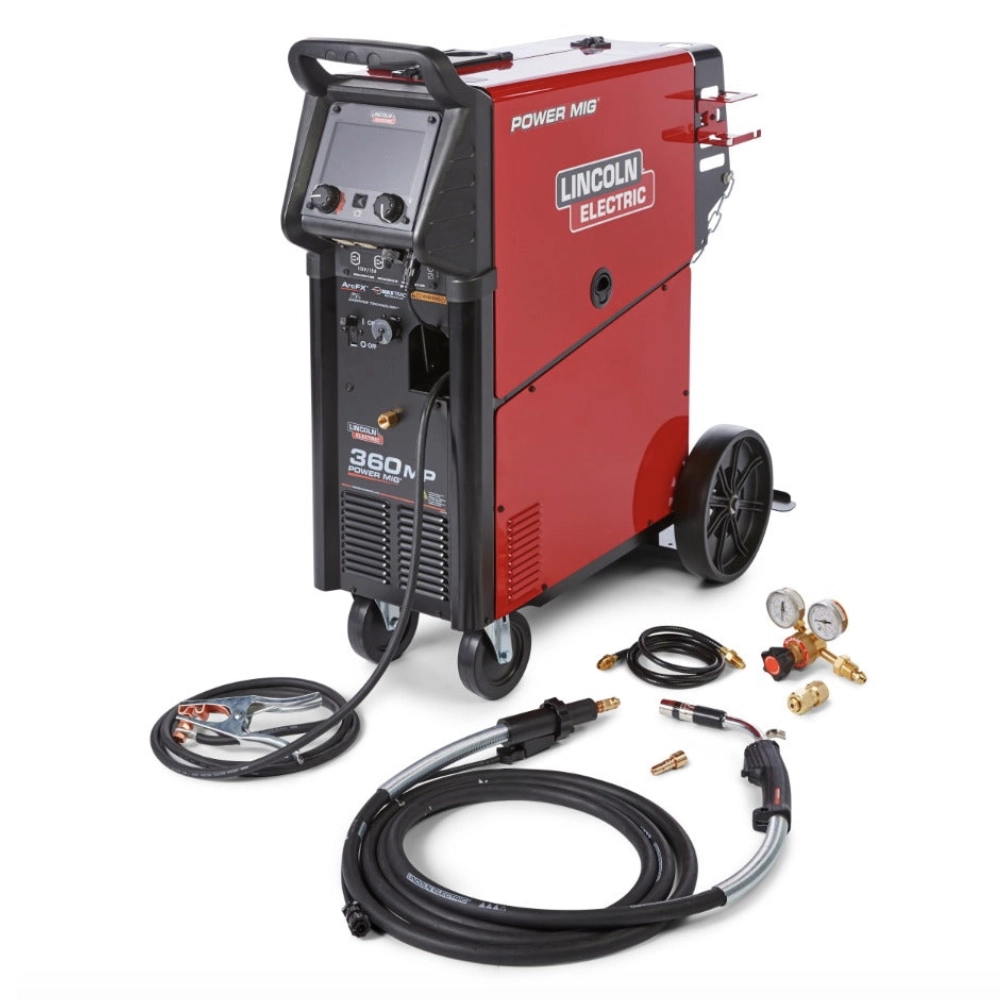

Lincoln K4467-1 Power MIG 360 MP Pulsed Multi-Process Welder (208-575V)
$4,650.00
In Stock
Lincoln K4467-1 Power MIG 360 MP is a pulsed Multi-Process welder with 208-575V input. This high-output machine is built for industrial production.
- Delivers advanced Pulsed MIG waveforms to optimize results on aluminum, steel, and stainless steel in heavy manufacturing
- Massive output and duty cycle allow for continuous welding in the most demanding shop environments
- Brand New industrial unit including professional MIG gun and Lincoln’s 3-year limited warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Lincoln Power Mig 360Mp Multiprocess Welder With Pulse 208-575V K4467-1 Specs
- Brand: Lincoln Electric
- Model: Power MIG 360MP
- MPN: K4467-1
- Processes: MIG (GMAW), Pulsed MIG, Flux-Cored (FCAW), Stick (SMAW), DC TIG (GTAW)
- Input Voltage: 208–575V, 1/3 Phase, 50/60 Hz
- Output Range: 5 – 360 Amps
- Rated Output: 300A @ 29V, 60% Duty Cycle
- Wire Feed Speed: 50 – 700 IPM
- Technology: Inverter, Pulse, Waveform Control Technology, True Torque Drive System
- Control Interface: Color LCD, push-button navigation, Synergic setup
- Spool Capacity: 8 in and 12 in spools
- Material Compatibility: Mild Steel, Stainless Steel, Aluminum
- Included Accessories: Magnum PRO MIG gun, work clamp, gas regulator, drive rolls
- Dimensions: 39.8 in H × 19.5 in W × 38.0 in D
- Weight: 240 lbs (108.9 kg)
- Portability: Industrial wheeled cart compatible
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Lincoln Industrial Warranty
Lincoln Power MIG 360 MP Pulsed Multi-Process Welder Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | Power MIG 360 MP (K4467-1) |
| Country of Origin | USA |
| Welding Process | MIG, Pulsed MIG, Flux-Cored, Stick, DC TIG, Aluminum MIG |
| Inverter/Transformer Technology | Chopper Technology (CT) |
| Input Voltage | 208 / 230 / 460 / 575 V (Auto-Reconnect) |
| Output Current Range | 5 – 360 A |
| Duty Cycle | 40% @ 360 A, 100% @ 250 A |
| Open Circuit Voltage (OCV) | 60 VDC |
| Rated Input Capacity | 11.2 kW |
| Power Factor & Efficiency | High-Efficiency Inverter Control |
| Wire Feed Speed Range | 1.3 – 17.8 m/min (50 – 700 ipm) |
| Protection Class | IP23 |
| Insulation Class | Class F |
| Cooling System | Fan-As-Needed (F.A.N.) |
| Dimensions | 947 x 457 x 1016 mm |
| Net Weight | 115 kg |
| Smart Features | 7-inch Color Display, Ready.Set.Weld, ArcFX, Maxtrac Drive System |
| Standard Compliance | CSA, IEC 60974-1 |
| Primary Application | High-End Fabrication, Metal Manufacturing, Automotive Aluminum |
