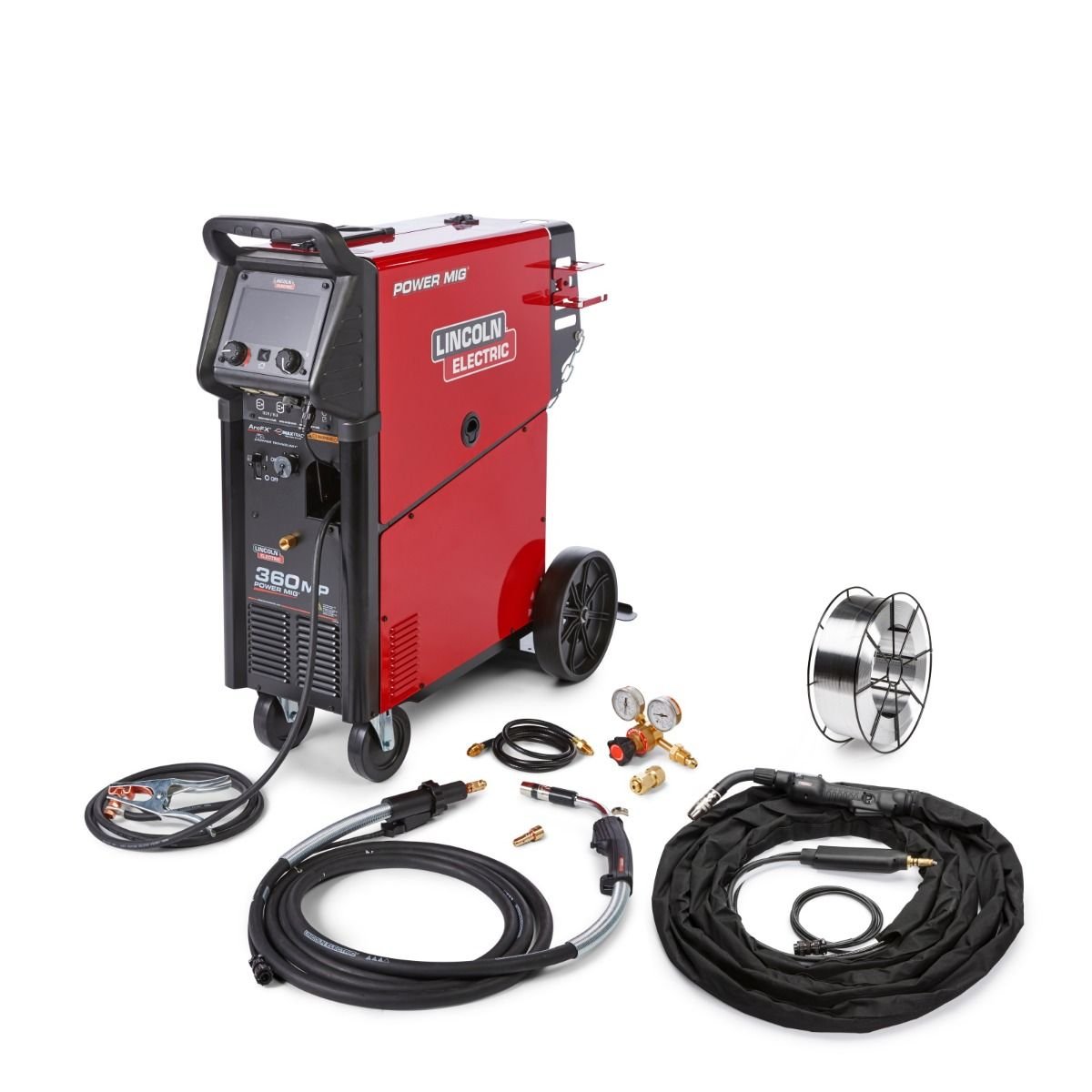

Lincoln K4663-1 Power MIG 360 Multi-Process Welder – Aluminum Auto Repair One-Pak
$6,870.00
In Stock
Lincoln K4663-1 Power MIG 360 is a Multi-Process welder featuring the Aluminum Auto Repair One-Pak. This unit is specialized for high-end collision centers.
- Optimized for the thin-gauge aluminum used in modern automotive manufacturing, providing superior pulsed MIG performance
- Includes specialized aluminum feeding equipment to ensure reliable, bird-nest free operation during critical repairs
- Brand New One-Pak including push-pull gun and cart with Lincoln’s professional automotive warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Lincoln Power Mig 360 Multiprocess Welder Aluminum Auto Repair One-Pak K4663-1 Specs
- Brand: Lincoln Electric
- Model: Power MIG 360 Multiprocess Aluminum Auto Repair One-Pak
- SKU/MPN: K4663-1
- Processes: MIG, Pulsed MIG, Flux-Cored, DC TIG
- Input Voltage: 208/230/460V, 1- or 3-Phase
- Output Range: 30–360 Amps
- Rated Output: 300A @ 40% Duty Cycle
- Pulsed MIG: Yes
- Control Interface: Digital LCD with Synergic Settings
- Aluminum Ready: Yes – Push-Pull Gun Compatible
- Wire Feed Speed: 50–700 inches per minute (IPM)
- Spool Gun Ready: Yes
- Cooling System: Fan-On-Demand
- Dimensions: 39 in L × 18 in W × 32 in H
- Weight: Approx. 220 lbs
- Included Accessories: Magnum Pro Gun, gas regulator, drive rolls, work clamp, cable set, power cord
- Material Compatibility: Aluminum, Mild Steel, Stainless Steel
- Use Case: Automotive aluminum repair, fabrication shops, light industrial use
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Limited Warranty from Lincoln Electric
Lincoln Power MIG 360 Multi-Process Welder - Aluminum Auto Repair One-Pak Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | Power MIG 360 MP Aluminum One-Pak (K4663-1) |
| Country of Origin | USA |
| Welding Process | Aluminum MIG (Pulsed), MIG (GMAW), Flux-Cored, Stick, DC TIG |
| Inverter/Transformer Technology | Chopper Technology (CT) |
| Input Voltage | 208/230/460/575 V (Auto-Line) |
| Output Current Range | 5 – 360 A |
| Duty Cycle | 40% @ 360 A |
| Open Circuit Voltage (OCV) | 60 VDC |
| Rated Input Capacity | 11.2 kW |
| Power Factor & Efficiency | Specialized Aluminum Waveform Efficiency |
| Wire Feed Speed Range | 1.3 – 17.8 m/min (50 – 700 ipm) |
| Protection Class | IP23 |
| Insulation Class | Class F |
| Cooling System | Fan-As-Needed (F.A.N.) |
| Dimensions | 947 x 457 x 1016 mm |
| Net Weight | 115 kg |
| Smart Features | Aluminum Optimized Programs, 7-inch LCD, Push-Pull Gun Compatible, ArcFX |
| Standard Compliance | CSA, IEC 60974-1 |
| Primary Application | Automotive Aluminum Collision Repair, Marine Fabrication, Lightweight Structural |
