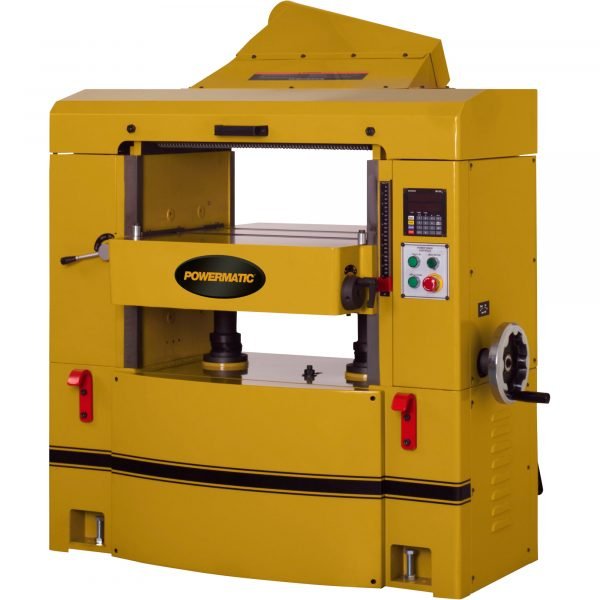

Powermatic WP2510 Wood Planer – 25in Max Width, 15 HP, Helical Head
Description
The Powermatic WP2510 Planer has a solid steel helical cutterhead with four-sided carbide knife inserts that require no adjustments when changing. With a digital readout and simple PC controller, setting up table heights is quick and easy. The frame is machined from heavy cast iron and has extra wide side panels that offer rigid bed support and ensure accurate alignment. The planer’s segmented, serrated infeed roll with segmented chip breakers has an independent yield of 1/4. Its automatically adjusting, chain drive gear box powers the 3in. diameter infeed rollers, solid pressure bar and dual outfeed rollers for precise feeding of stock. The 3-speed feed selector gives woodworkers flexibility by changing feed rates quickly and easily. The WP2510 Planer has a large 32 3/16in. x 26in. precision-ground table which contains two adjustable table rollers for smooth feeding of uneven stock. The planer has a Quick-Set micro-adjustable lever that easily raises and lowers the table rollers from 0 to 0.05in. The hood features a built-in 5in. diameter dust chute.
What’s Included
- (1) Powermatic Planer, 15 HP, 3PH, 230V/460V, Helical Head, Model# WP2510
| Item# | 84830 |
| Brand | Powermatic |
| Manufacturer’s Warranty | 5 year limited warranty |
| Ship Weight | 1585.0 lbs |
| Product Type | Planers |
| Max. Cutting Depth | 1/4 in |
| Knives (qty.) | 174 |
| Speed (RPM) | 5,000 |
| Helical Head | Yes |
| Horsepower | 15 |
| Volts | 230/460 (3PH) |
| Amps | 50/25 |
| Product Weight | 1,585 lb |
| Dimensions L x W x H (in.) | 42 x 53.5 x 60 in |
Powermatic WP2510 Wood Planer - 25in Max Width, 15 HP Technical Specifications
| Brand | Powermatic |
|---|---|
| Full Model SKU | WP2510 (84830) |
| Country of Origin | Taiwan |
| Motor Power | 15 HP |
| Power Requirements | 230/460V, 50/25 Amps, 3 Phase |
| Spindle/Blade Speed | 5,000 RPM (3-Speed Feed Selector) |
| Blade/Cutterhead Diameter | Helical Head w/ 174 Carbide Inserts |
| Max. Depth of Cut | 1/4 in |
| Max. Width of Cut / Rip Capacity | 25 in. |
| Table Material | Precision-Ground Cast Iron w/ Table Rollers |
| Safety Features | Sandsmart-style Feed Control, Segmented Chip Breakers, Micro-adjustable Table Rollers |
| Overall Dimensions | 42 x 53.5 x 60 in. |
| Net Weight | 719 kg |
| Application | Industrial Wide-stock Planing, High-precision Production |
What's Included
- (1) Powermatic Planer, 15 HP, 3PH, 230V/460V, Helical Head, Model# WP2510
