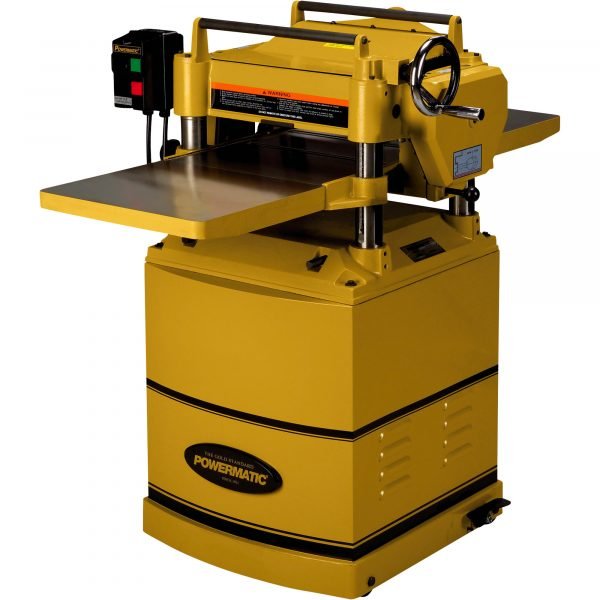

Powermatic 15HH Wood Planer – 3 HP, Helical Cutterhead, No DRO
Description
The Powermatic 15HH Planer with a helical cutterhead provides smoother cutting and a finer finish than conventional knives, and the 74 four-sided indexable carbide knife inserts do not require adjustment after installing. 3 V-belts transfer maximum power from the 3HP motor to the cutterhead. Your workpiece will get substantial support from the precision ground cast iron table and two large extension wings. The 4in. dust port angles the collection hose away from the work area. Stock return rollers atop the machine speed repetitive cuts. The serrated steel infeed and smooth steel outfeed roller allow for 1/8in. maximum depth of cut and trouble-free operation. A 2-speed gearbox features an automatic chain tensioner. The 1-piece welded steel stand has built-in lockable casters for easy movement around the shop.
What’s Included
- (1) Powermatic 15HH Planer, 74 Knives, 2-Speed, 3 HP, 1 PH, 230V
| Item# | 84648 |
| Brand | Powermatic |
| Manufacturer’s Warranty | 5 year limited warranty |
| Ship Weight | 582.0 lbs |
| Product Type | Planers |
| Max. Cutting Depth | 1/4 in |
| Knives (qty.) | 74 |
| Speed (RPM) | 4,500 |
| Helical Head | Yes |
| Horsepower | 3 |
| Volts | 230 |
| Amps | 30 |
| Product Weight | 582 lb |
| Dimensions L x W x H (in.) | 48 x 28 x 43.5 in |
Powermatic 15HH Wood Planer - 3 HP, Helical Cutterhead Technical Specifications
| Brand | Powermatic |
|---|---|
| Full Model SKU | 15HH (84648) |
| Country of Origin | Taiwan |
| Motor Power | 3 HP |
| Power Requirements | 230V, 30 Amps, 1 Phase |
| Spindle/Blade Speed | 4,500 RPM |
| Blade/Cutterhead Diameter | Helical Head w/ 74 Carbide Inserts |
| Max. Depth of Cut | 1/4 in |
| Max. Width of Cut / Rip Capacity | 15 in. |
| Table Material | Precision Ground Cast Iron |
| Dust Port Diameter | 4 in. |
| Safety Features | Anti-Kickback Fingers, Serrated Steel Infeed Roller, Magnetic Switch |
| Overall Dimensions | 48 x 28 x 43.5 in. |
| Net Weight | 264 kg |
| Application | Fine Finish Wood Planing, Industrial Thicknessing |
