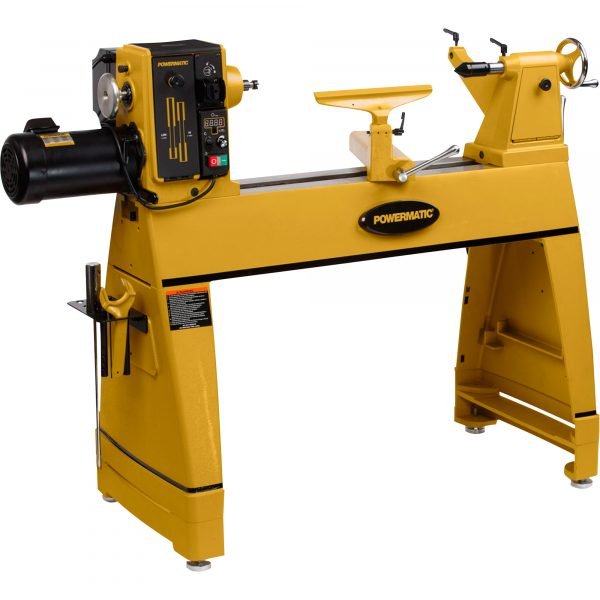

Powermatic 3520C Wood Lathe – 2 HP, 1PH
Description
The Powermatic 3520C is the fourth evolution of the time honored lathe with many new and improved features. The 3520C has retained all the features of the prior models such as the sliding headstock, electronic variable speed with low and high speed ranges, the spindle lock, digital RPM readout, and a laser etched quill that is self-ejecting. The enhanced features include a movable control box for maximum versatility, adjustable riser blocks for 6 inches or more of height adjustment, and an increased weight of 726 lbs. (814 lbs. with the optional bed extension). Additional features include a new ergonomic spindle lock design, a digital indexing readout, an anti-rotation tailstock key for smoother operation, a set of dead centers which hold a spindle for visual comparison, a two position mount for the optional bed extension, and a sliding hammer knockout rod with brass tip.
What’s Included
- (1) Powermatic Lathe, 2 HP, 1PH, 220V, Model# 3520C
| Item# | 84837 |
| Brand | Powermatic |
| Manufacturer’s Warranty | 5 year limited warranty |
| Ship Weight | 682.0 lbs |
| Product Type | Lathes |
| Distance Between Centers (in.) | 36 (with dual bearing center) |
| Swing (in.) | 20 |
| Speeds (qty.) | Variable |
| Speed Range (RPM) | 15–1,200 (low), 40–3,200 (high) |
| Horsepower | 2 HP |
| Volts | 220 |
| Amps | 20 |
| Dimensions L x W x H (in.) | 55 x 27 x 31 |
Powermatic 3520C Wood Lathe - 2 HP, 1PH Technical Specifications
| Brand | Powermatic |
|---|---|
| Full Model SKU | 3520C (84837) |
| Country of Origin | Taiwan |
| Motor Power | 2 HP |
| Power Requirements | 220V, 20 Amps, 1 Phase |
| Spindle/Blade Speed | 15–1,200 (Low) / 40–3,200 (High) RPM |
| Max. Width of Cut / Rip Capacity | 20 in. Swing |
| Table Dimensions | 36 in. Distance Between Centers |
| Table Material | Cast Iron |
| Safety Features | Movable Control Box, Spindle Lock, Digital Indexing Readout, Anti-rotation Tailstock Key |
| Overall Dimensions | 55 x 27 x 31 in. |
| Net Weight | 329 kg |
| Application | Professional Woodturning, Versatile Spindle and Bowl Work |
