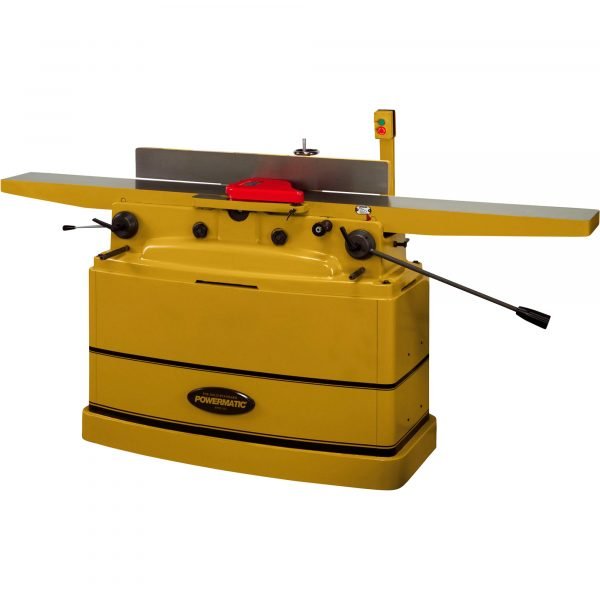

Powermatic PJ-882HH 8 In. Jointer – Helical Head, 2 HP
Description
The Powermatic 8in. Parallelogram Jointer offers performance and value in a machine loaded with features. The cutterhead is a helical design with 54 four-sided knife inserts that produce a superior finish and much quieter operation than conventional cutterheads, and the inserts do not require adjustment once installed. The Jointer has an extra long 82in. bed for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45° and 90°. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also insures the table remains perfectly parallel, even after years of heavy use. The 2 HP motor is totally enclosed in a heavy steel stand, providing plenty of power and stability for the most demanding jobs.
What’s Included
- (1) Powermatic 8in. Parallelogram Jointer, Helical Cutterhead, 2 HP, 230V, Model# PJ-882HH
| Item# | 82609 |
| Brand | Powermatic |
| Manufacturer’s Warranty | 5 year limited warranty |
| Ship Weight | 744.0 lbs |
| Product Type | Jointers |
| Max. Cutting Depth | 1/2 in |
| Cutters (qty.) | 54 |
| Cutterhead Speed (RPM) | 7,000 |
| Motor Power (HP) | 2 |
| Motor Voltage | 230 |
| Product Weight | 744 lb |
| Dimensions L x W x H (in.) | 84 x 28 x 44 in |
Powermatic PJ-882HH 8 In. Jointer - Helical Head Technical Specifications
| Brand | Powermatic |
|---|---|
| Full Model SKU | PJ-882HH (1610082K) |
| Country of Origin | Taiwan |
| Motor Power | 2 HP |
| Power Requirements | 230V, 1 Phase |
| Spindle/Blade Speed | 7,000 RPM |
| Blade/Cutterhead Diameter | Helical Head w/ 54 Carbide Inserts |
| Max. Depth of Cut | 1/2 in |
| Max. Width of Cut / Rip Capacity | 8 in. |
| Table Dimensions | 82 in. Bed Length |
| Table Material | Cast Iron |
| Safety Features | Parallelogram Design, High-Precision Adjustment Handwheels |
| Overall Dimensions | 82 x 25 x 40 in. |
| Net Weight | 248 kg |
| Application | High-Volume Industrial Wood Finishing |
