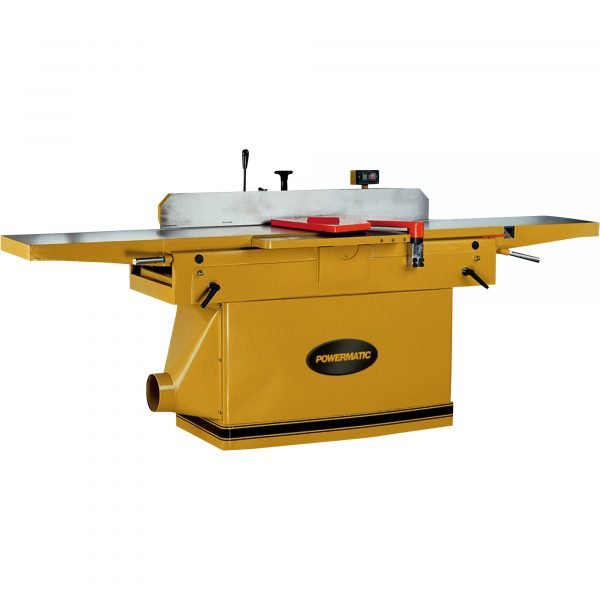

Powermatic PJ1696 16 In. Jointer – 7.5 HP, 3 PH
Description
The Powermatic 16in. jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially designed solid steel helical cutterhead consists of 6 rows of precision ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7 1/2 HP motor delivers all the power you need for even the biggest jobs.
What’s Included
- (1) Powermatic 16in. Jointer, 7.5 HP, 3PH, 230V/460V, Model# PJ1696
| Item# | 84831 |
| Brand | Powermatic |
| Manufacturer’s Warranty | 5 year limited warranty |
| Ship Weight | 1280.0 lbs |
| Product Type | Jointers |
| Max. Cutting Depth | 3/4 in |
| Cutters (qty.) | 58 |
| Cutterhead Speed (RPM) | 5,200 |
| Motor Power (HP) | 7 1/2 |
| Motor Phase | 3 |
| Motor Voltage | 230/460 |
| Amps | 30/15 |
| Product Weight | 1,406 lb |
| Dimensions L x W x H (in.) | 46 X 96 X 43 in |
Powermatic PJ1696 16 In. Jointer - 7.5 HP, 3 PH Technical Specifications
| Brand | Powermatic |
|---|---|
| Full Model SKU | PJ1696 |
| Country of Origin | Taiwan |
| Motor Power | 7.5 HP |
| Power Requirements | 230/460V, 3 Phase |
| Spindle/Blade Speed | 5,000 RPM |
| Max. Depth of Cut | 9/16 in |
| Max. Width of Cut / Rip Capacity | 16 in. |
| Table Dimensions | 96 in. Bed Length |
| Table Material | Precision Ground Cast Iron |
| Fence System Type | Center Mount with Positive Stops |
| Dust Port Diameter | 4 in. |
| Safety Features | Parallelogram Table Adjustment, Cutterhead Guard |
| Net Weight | 580 kg |
| Standard Compliance | CSA |
| Application | Heavy Industrial Straightening and Jointing |
What's Included
- (1) Powermatic 16in. Jointer, 7.5 HP, 3PH, 230V/460V, Model# PJ1696
