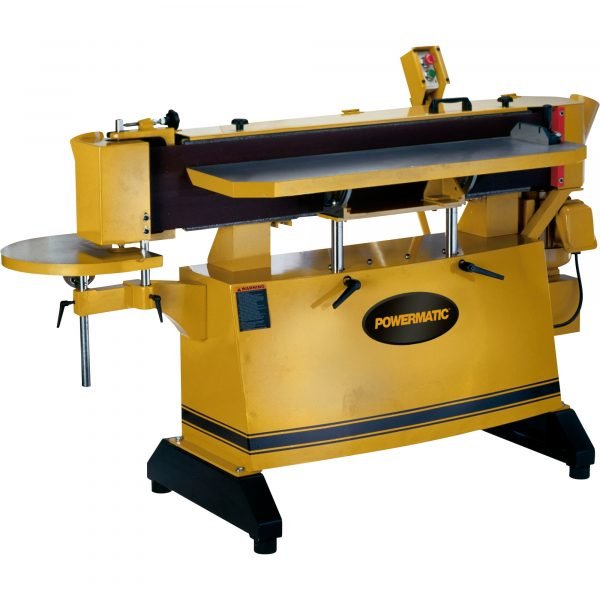

Powermatic OES9138 Oscillating Edge Sander – 3 HP, 3PH
Description
The Powermatic Oscillating Edge Sander features a large 11 3/4in. x 48in. table that travels a full 8in. in vertical height to accommodate most woodworking pieces. It will also tilt negative 5° and out to positive 45°. The cast iron platen is a generous 48in. x 9 1/2in. and covered with graphite for production sanding, offering super support and cool running to extend belt life. With 24 oscillations per minute you can use the entire belt face without burning. A 3 HP motor powers the belt and runs a large gearbox to provide the oscillating action. The entire head pivots on a massive shaft with 2 sealed ball bearings for trouble-free performance. Dual dust collection ports keep the work area clean and extend the life of your abrasive belt.
What’s Included
- (1) Powermatic Oscillating Edge Sander, 3 HP, 3 PH, 230/460 Volt, Model# OES9138
| Item# | 84649 |
| Brand | Powermatic |
| Manufacturer’s Warranty | 5 year limited warranty |
| Ship Weight | 870.0 lbs |
| Amps | 15/10 |
| Volts | 230/460 |
| Horsepower | 3 HP |
| Motor Phase | 3 |
| Belt Speed | 3,542 ft./min. |
| Table Length | 48 in |
| Table Width | 11.75 in |
| Dust Collection Port Size | 4 in |
| Number of Dust Collection Ports | 2 |
| Cordless | No |
| Charger Included | No |
| Sander Type | Edge and Belt |
| Product Weight | 870 lb |
| Dimensions L x W x H (in.) | 83 x 32 x 50 |
Powermatic OES9138 Oscillating Edge Sander - 3 HP, 3PH Technical Specifications
| Brand | Powermatic |
|---|---|
| Full Model SKU | OES9138 (84649) |
| Country of Origin | Taiwan |
| Motor Power | 3 HP |
| Power Requirements | 230/460V, 15/10 Amps, 3 Phase |
| Spindle/Blade Speed | 3,542 ft./min. (24 Oscillations/min) |
| Table Dimensions | 11 3/4 x 48 in. (8 in. Vertical Travel) |
| Table Material | Cast Iron Platen w/ Graphite Cover |
| Fence System Type | Tilting Head (-5° to +45°) |
| Dust Port Diameter | 4 in. (Dual Ports) |
| Safety Features | Sealed Ball Bearings, Cool Running Graphite Platen |
| Overall Dimensions | 83 x 32 x 50 in. |
| Net Weight | 395 kg |
| Application | Production Sanding, Edge and Belt Finishing |
What's Included
- (1) Powermatic Oscillating Edge Sander, 3 HP, 3 PH, 230/460 Volt, Model# OES9138
