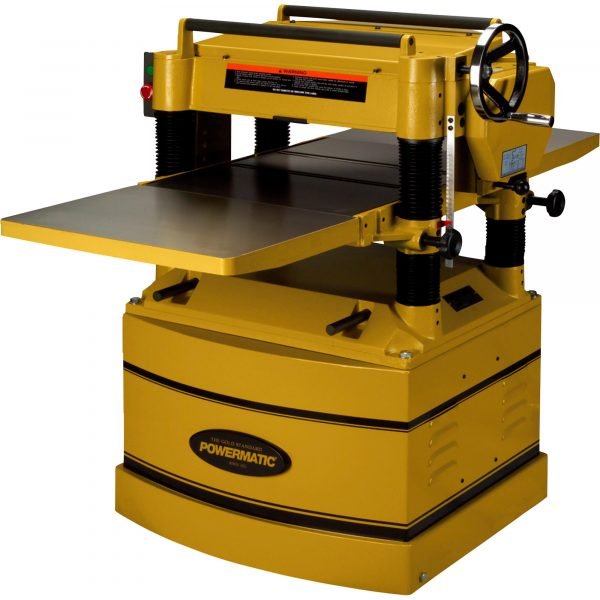

Powermatic 209 HH Wood Planer – 5 HP, Helical, 4-Speed
Description
The Powermatic 209 HH Planer is a heavy-duty unit with standard features not found on other machines in its class. The powerful 5 HP motor and 20in. planing capacity will handle the most demanding work. The helical cutterhead provides quieter operation and finer finishing than conventional systems, and the 4-sided knife inserts seat themselves without requiring a setup gauge. The 5in. dust port connects easily to any dust collector. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision-ground and polished cast iron table rides on 4 steel columns, giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.
What’s Included
- (1) Powermatic 209 HH Planer, 100 Knives, 4-Speed, 5 HP, 1 PH, 230
| Item# | 84657 |
| Brand | Powermatic |
| Manufacturer’s Warranty | 5 year limited warranty |
| Ship Weight | 801.0 lbs |
| Product Type | Planers |
| Max. Cutting Depth | 3/32 in |
| Knives (qty.) | 100 |
| Speed (RPM) | 5,000 |
| Helical Head | Yes |
| Horsepower | 5 |
| Volts | 230 (1 PH) |
| Amps | 40 |
| Product Weight | 801 lb |
| Dimensions L x W x H (in.) | 26 x 36.63 x 41.4 in |
Powermatic 209 HH Wood Planer - 5 HP, Helical, 4-Speed Technical Specifications
| Brand | Powermatic |
|---|---|
| Full Model SKU | 209 HH (84657) |
| Country of Origin | Taiwan |
| Motor Power | 5 HP |
| Power Requirements | 230V, 40 Amps, 1 Phase |
| Spindle/Blade Speed | 5,000 RPM (16/20/24/31 FPM Feed) |
| Blade/Cutterhead Diameter | Helical Head w/ 100 Carbide Inserts |
| Max. Depth of Cut | 3/32 in |
| Max. Width of Cut / Rip Capacity | 20 in. |
| Table Material | Precision Polished Cast Iron on 4 Columns |
| Dust Port Diameter | 5 in. |
| Safety Features | Anti-Kickback Fingers, Pressure Bar Finish Control |
| Overall Dimensions | 26 x 36.6 x 41.4 in. |
| Net Weight | 363 kg |
| Application | High-Demand Production Planing, Quiet Industrial Operation |
What's Included
- (1) Powermatic 209 HH Planer, 100 Knives, 4-Speed, 5 HP, 1 PH, 230
