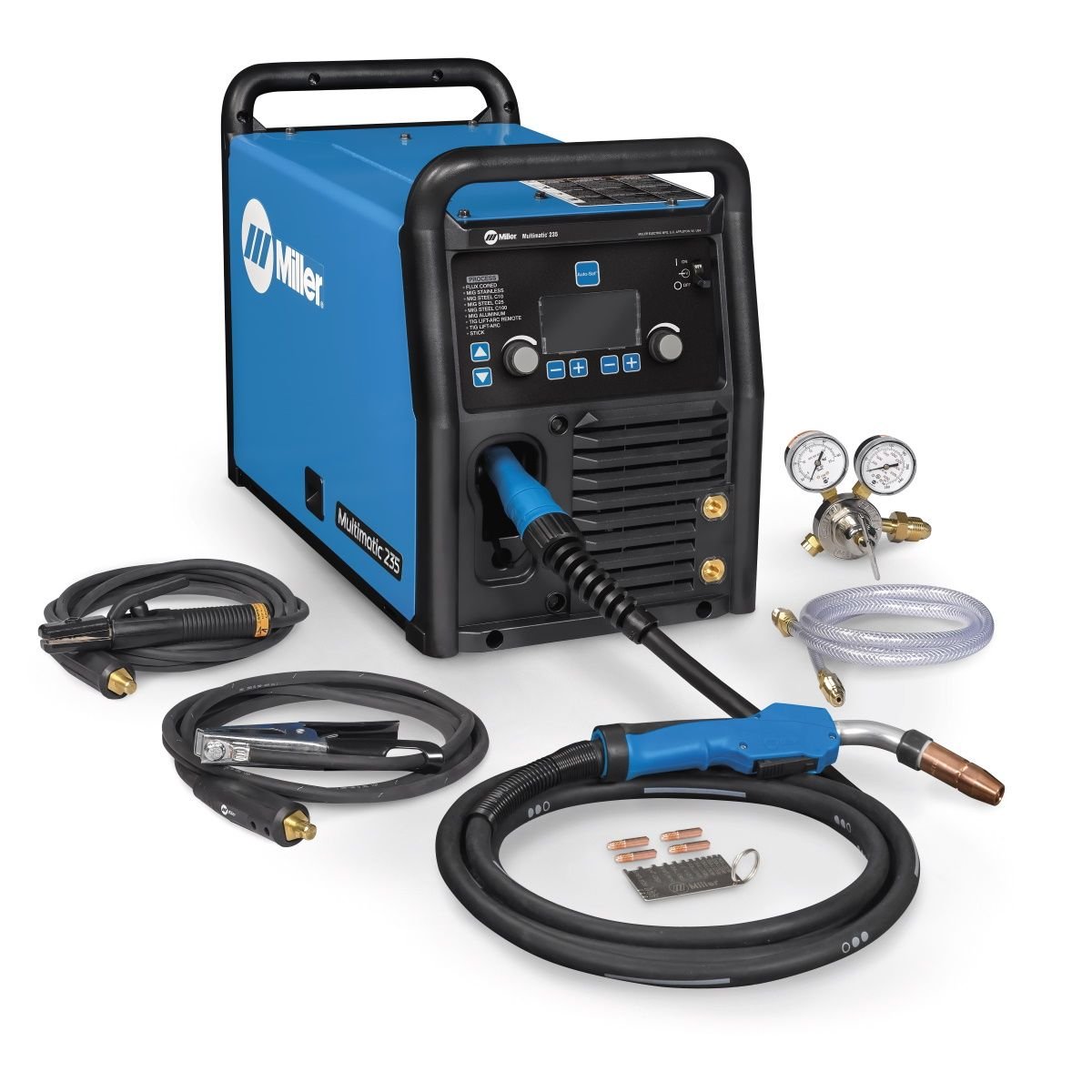

Miller Multimatic 235 Advanced Multi-Process Welder (MIG/TIG/Stick)
$1,656.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Miller Multimatic 235 Multiprocess Welder 907780 Specs
- Brand: Miller
- Model: Multimatic 235
- MPN: 907780
- Type: Multiprocess Welder
- Processes: MIG, Flux-Cored, Stick, DC TIG
- Input Power: 240V, Single Phase
- Output Amperage: 20–235 Amps
- Duty Cycle: 200A @ 60%
- Display: Full-Color LCD
- Auto-Set Elite: Yes
- Wire Feed Speed: 50–700 IPM
- Wire Size Compatibility: 0.023 in – 0.045 in
- Spool Gun Compatible: Yes (Spoolmate 200)
- TIG Capable: Yes (with optional TIG kit)
- Weight: 74.5 lbs (33.8 kg)
- Dimensions: 13.5 in W × 21.5 in H × 25.5 in D
- Included: MIG gun, work clamp, regulator, gas hose
- Warranty: Miller True Blue 3-Year Warranty
- Applications: Light industrial, fabrication, repair
- Google Product Category: 2920 (Welding Machines)
Miller Multimatic 235 Advanced Multi-Process Welder Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Multimatic 235 Advanced (907757) |
| Country of Origin | USA |
| Welding Process | MIG (GMAW), Flux-Cored (FCAW), Stick (SMAW), DC TIG (GTAW) |
| Inverter/Transformer Technology | IGBT Inverter |
| Input Voltage | 240 V (Single-Phase Only) |
| Output Current Range | 20 – 235 A |
| Duty Cycle | 40% @ 170 A, 15% @ 235 A |
| Open Circuit Voltage (OCV) | 54 VDC |
| Rated Input Capacity | 6.3 kW |
| Power Factor & Efficiency | Advanced Digital Control Efficiency |
| Wire Feed Speed Range | 1.5 – 20 m/min (60 – 800 ipm) |
| Protection Class | IP21S |
| Insulation Class | Class F |
| Cooling System | Fan-On-Demand |
| Dimensions | 483 x 330 x 610 mm (Power Source Only) |
| Net Weight | 28.6 kg (Power Source Only) |
| Smart Features | Auto-Set Elite (Materials/Gas/Wire), Color LCD Screen, Spool Gun Compatible |
| Standard Compliance | CSA, IEC 60974-1 |
| Primary Application | Mechanical Contractors, Automotive, High-Quality Light Industrial |
