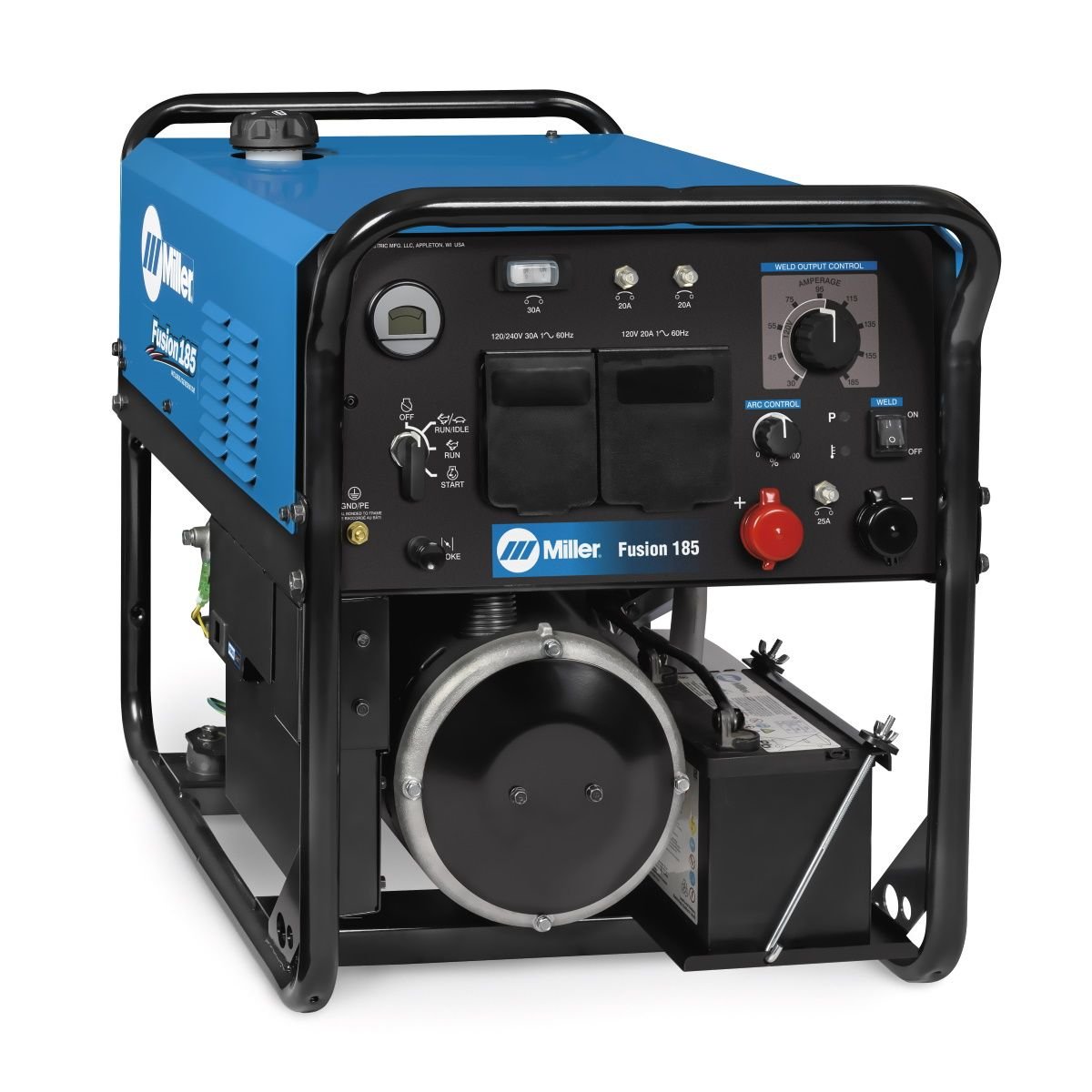

Miller Fusion 185 Welder/Generator w/ Electric Start
$3,156.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Miller Fusion 185 Welder/Generator W/Electric Start 907781 Specs
- Brand: Miller
- Model: Fusion 185
- MPN: 907781
- Type: Engine Driven Welder/Generator
- Processes: Stick (SMAW), TIG (GTAW)
- Engine: Kohler SH265, 4-cycle, overhead valve
- Engine Start: Electric Start
- Rated Output: 185 Amps @ 60% Duty Cycle
- Generator Power: 6,500 watts peak, 6,200 watts continuous
- Fuel Type: Gasoline
- Fuel Capacity: 1.9 gallons (7.2 L)
- Run Time: Up to 6.5 hours at 50% load
- Noise Level: Low decibel for quieter operation
- Weld Output Range: 40–185 Amps
- Auxiliary Power Receptacles: 120V Duplex
- Weight: 242 lbs (109.8 kg)
- Dimensions: 29.9 in H × 21.1 in W × 41.5 in D
- Applications: Construction, Maintenance, Farm & Ranch
- Warranty: Miller True Blue 3-Year Warranty
- Google Product Category: 2920 (Welding Machines)
Miller Fusion 185 Welder/Generator w/ Electric Start Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Fusion 185 Electric Start (907784) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW) |
| Inverter/Transformer Technology | IGBT Inverter (Rotating Field Generator) |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 30 – 185 A |
| Duty Cycle | 20% @ 185 A, 100% @ 85 A |
| Open Circuit Voltage (OCV) | 75 VDC |
| Rated Input Capacity | 6,500 Watts (Peak) / 6,200 Watts (Continuous) |
| Power Factor & Efficiency | Inverter Technology for Smooth Arc Output |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class F |
| Cooling System | Air-Cooled (Kohler CH440) |
| Dimensions | 616 x 527 x 794 mm |
| Net Weight | 110 kg |
| Smart Features | Electric Start, PowerShift Technology (Weld or Generator), Inverter-Based Arc |
| Standard Compliance | CSA, EPA Tier 4 |
| Primary Application | Homeowners, Farm/Ranch Maintenance, On-site Repair |
