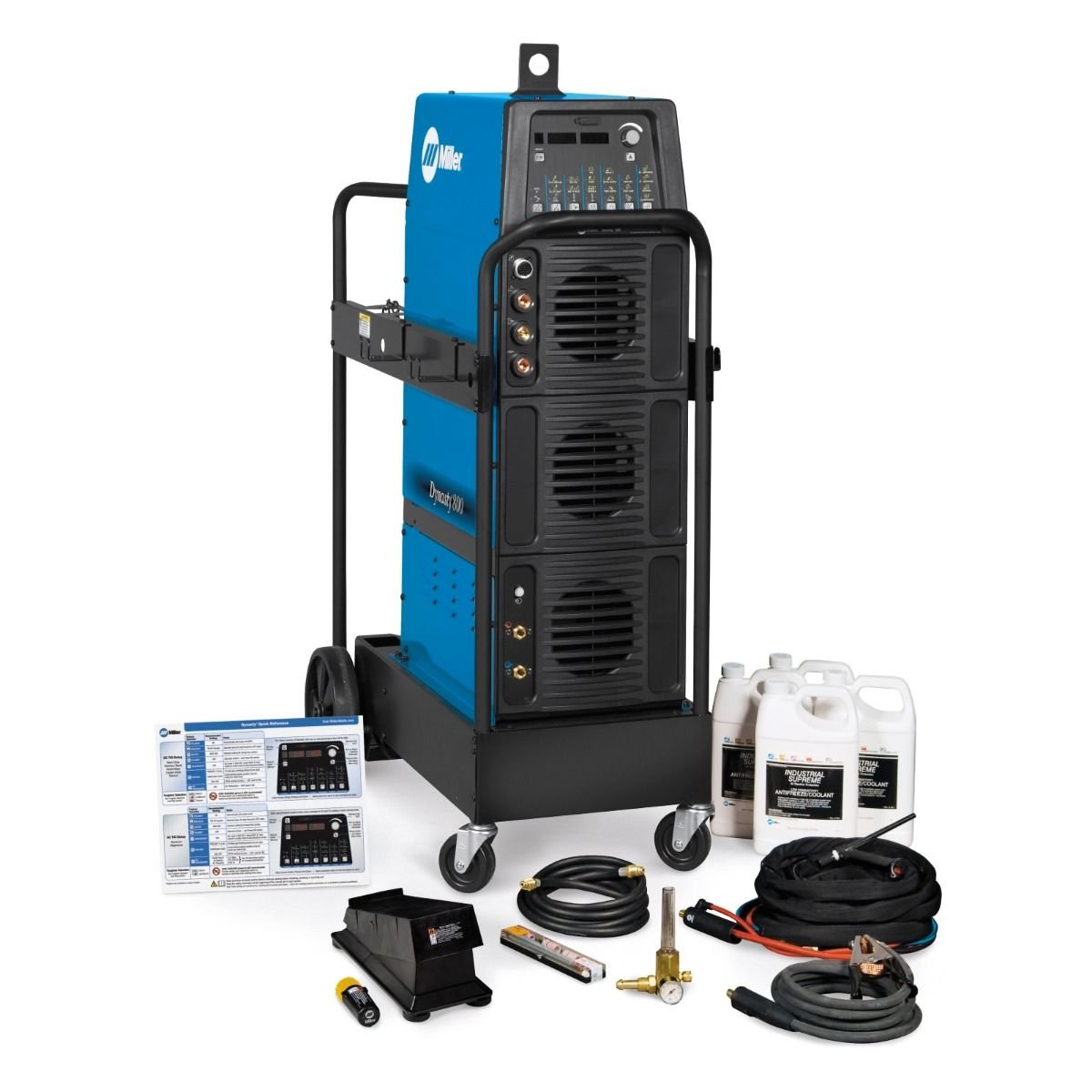

Miller 951875 Dynasty 800 AC/DC TIG Water-Cooled Pkg w/ Wireless Foot Control
$17,124.00
In Stock
Miller 951875 Dynasty 800 is a water-cooled AC/DC TIG package featuring a wireless foot control. This is the ultimate high-amperage welding station.
- Complete water-cooled system allows for continuous 800 Amp operation on thick aluminum without torch overheating
- Wireless foot control provides total mobility in large industrial shops, removing cables and trip hazards from the workspace
- Brand New complete package including cart, water cooler, and wireless remote with Miller’s industrial warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Miller Dynasty 800 Tig Welder And Water-Cooled Package With Wireless Foot Control 951875 Specs
- Brand: Miller
- Model: Dynasty 800 TIG Welder Water-Cooled Package
- Part Number (MPN): 951875
- Processes: AC/DC TIG (GTAW), Stick (SMAW)
- Input Power: Auto-Line 208–575V, Single or Three Phase
- Output Range: 5 – 800 Amps
- Rated Output: 800A @ 44V, 60% Duty Cycle
- Cooling System: Water-Cooled (Coolmate 3.5 included)
- Foot Control: Wireless Foot Pedal Included
- AC Waveforms: Advanced Squarewave, Soft Squarewave, Sine, Triangle
- Technology: Inverter-Based, Pro-Set, Auto-Line, Blue Lightning
- Display: Digital Front Panel Controls
- Dimensions: 32.5 in H x 17 in W x 24.5 in D
- Weight: Approx. 222 lb (100.7 kg)
- Applications: Heavy Fabrication, Pipe Welding, Aerospace, Aluminum TIG
- Warranty: 3-Year Miller True Blue Warranty
- Condition: New in Box
- Google Product Category: 2920 (Welding Machines)
Miller Dynasty 800 AC/DC TIG Water-Cooled Pkg w/ Wireless Foot Control Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Dynasty 800 Wireless Package (951875) |
| Country of Origin | USA |
| Welding Process | AC/DC TIG, Pulsed TIG, Stick, Air Carbon Arc Gouging |
| Inverter/Transformer Technology | High-Output AC/DC Inverter |
| Input Voltage | 208 – 575 V (Three-Phase) |
| Output Current Range | 5 – 800 A |
| Duty Cycle | 100% @ 600 A, 60% @ 800 A |
| Open Circuit Voltage (OCV) | 75 VDC |
| Rated Input Capacity | 32 kVA / 30 kW |
| Power Factor & Efficiency | Low Energy Consumption High-Output Design |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Coolmate 3.5 (Water-Cooled Package) |
| Dimensions | 1111 x 591 x 1187 mm |
| Net Weight | 181 kg (Full System) |
| Smart Features | Wireless Foot Control, Independent AC Amplitude Control, Extended Pulse Frequency |
| Standard Compliance | CSA, CE, IEC 60974-1 |
| Primary Application | Heavy Industrial Aluminum Fabrication, Mold Repair, Shipbuilding |
