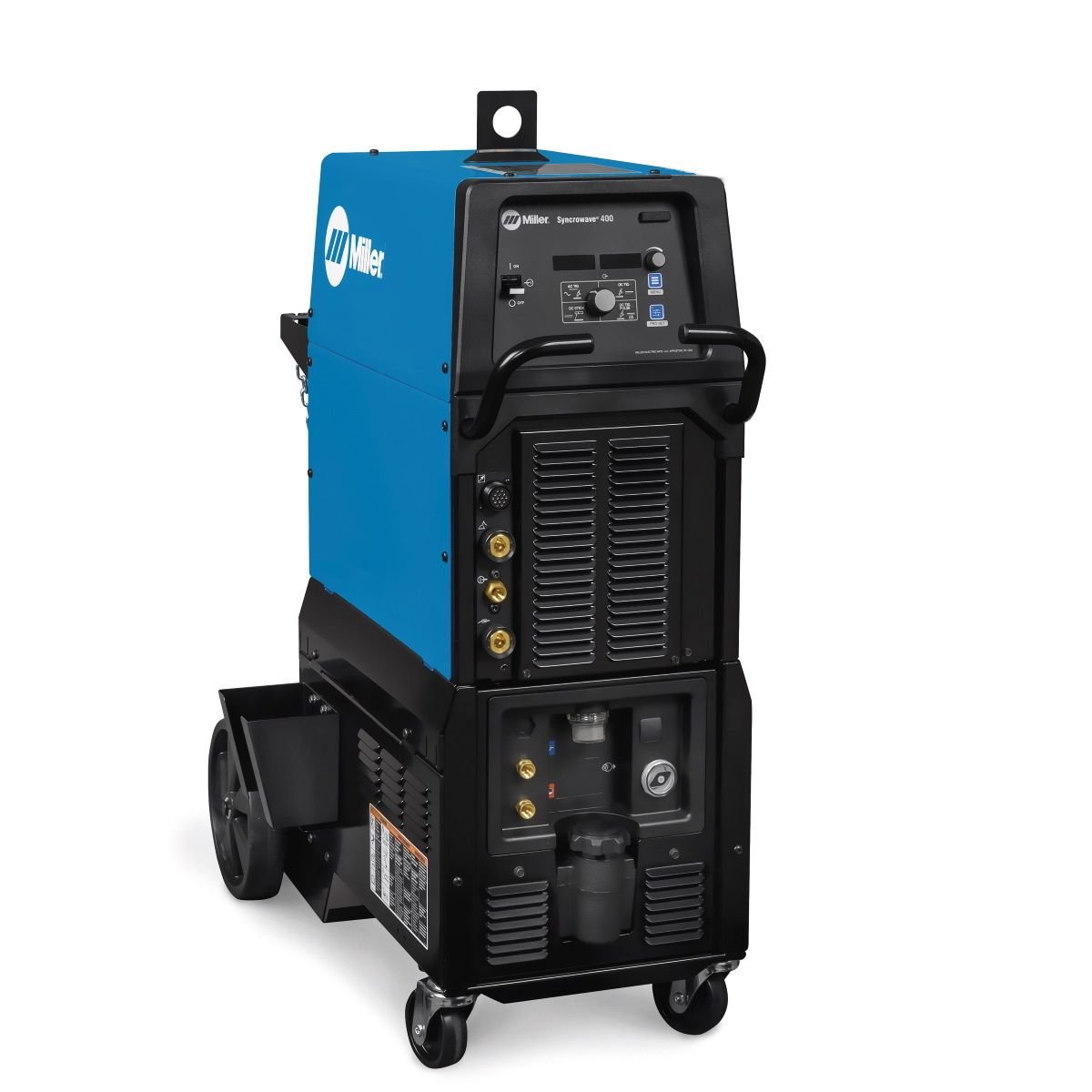

Miller 907783001 Syncrowave 400 AC/DC TIG Welder TigRunner Package
$8,616.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Miller Syncrowave 400 Ac/Dc Tig And Stick Welder Tigrunner Pkg 907783001 Specs
- Brand: Miller
- Model: Syncrowave 400 TIGRunner Package
- MPN/SKU: 907783001
- Processes: AC/DC TIG (GTAW), Stick (SMAW)
- Input Voltage: 208–575V, 3-Phase
- Amperage Range: 5–400 Amps
- Duty Cycle: 300A @ 60% (TIG), 350A @ 60% (Stick)
- Cooling: Water-Cooled (Coolmate 3.5 included)
- Start Type: High-Frequency Start, Lift-Arc
- AC Balance Control: Adjustable for cleaning and penetration
- Pulse TIG: Yes, adjustable parameters
- Arc Control: Adaptive hot start, DIG control
- Weight: 452 lbs (205 kg)
- Dimensions: 30.6 in H × 22.5 in W × 40.5 in D
- Included in Package: TIG torch, Coolmate 3.5 cooler, running gear, regulator, and cables
- Material Compatibility: Steel, Stainless Steel, Aluminum
- Application: Heavy Fabrication, Pipe Welding, Industrial Maintenance
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year True Blue Warranty
Miller Syncrowave 400 AC/DC TIG Welder TigRunner Package Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Syncrowave 400 TigRunner (907783001) |
| Country of Origin | USA |
| Welding Process | AC/DC TIG (GTAW), Pulsed TIG (GTAW-P), Stick (SMAW) |
| Inverter/Transformer Technology | AC/DC Squarewave Inverter |
| Input Voltage | 208 – 460 V (Three-Phase) |
| Output Current Range | 2 – 400 A |
| Duty Cycle | 100% @ 300 A, 40% @ 400 A |
| Open Circuit Voltage (OCV) | 70 VDC |
| Rated Input Capacity | 16.5 kVA / 14.5 kW |
| Power Factor & Efficiency | Auto-Line Technology Efficiency |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Coolmate 3.5 (Liquid-Cooled Package) |
| Dimensions | 1092 x 559 x 889 mm (Total System) |
| Net Weight | 107 kg (Total System) |
| Smart Features | ArcTimer, Digital Meters, Sync Config, Pro-Set Technology, Coolmate CPS |
| Standard Compliance | CSA, CE, IEC 60974-1 |
| Primary Application | Industrial Manufacturing, Precision Aluminum Fabrication, Tool and Die Repair |
