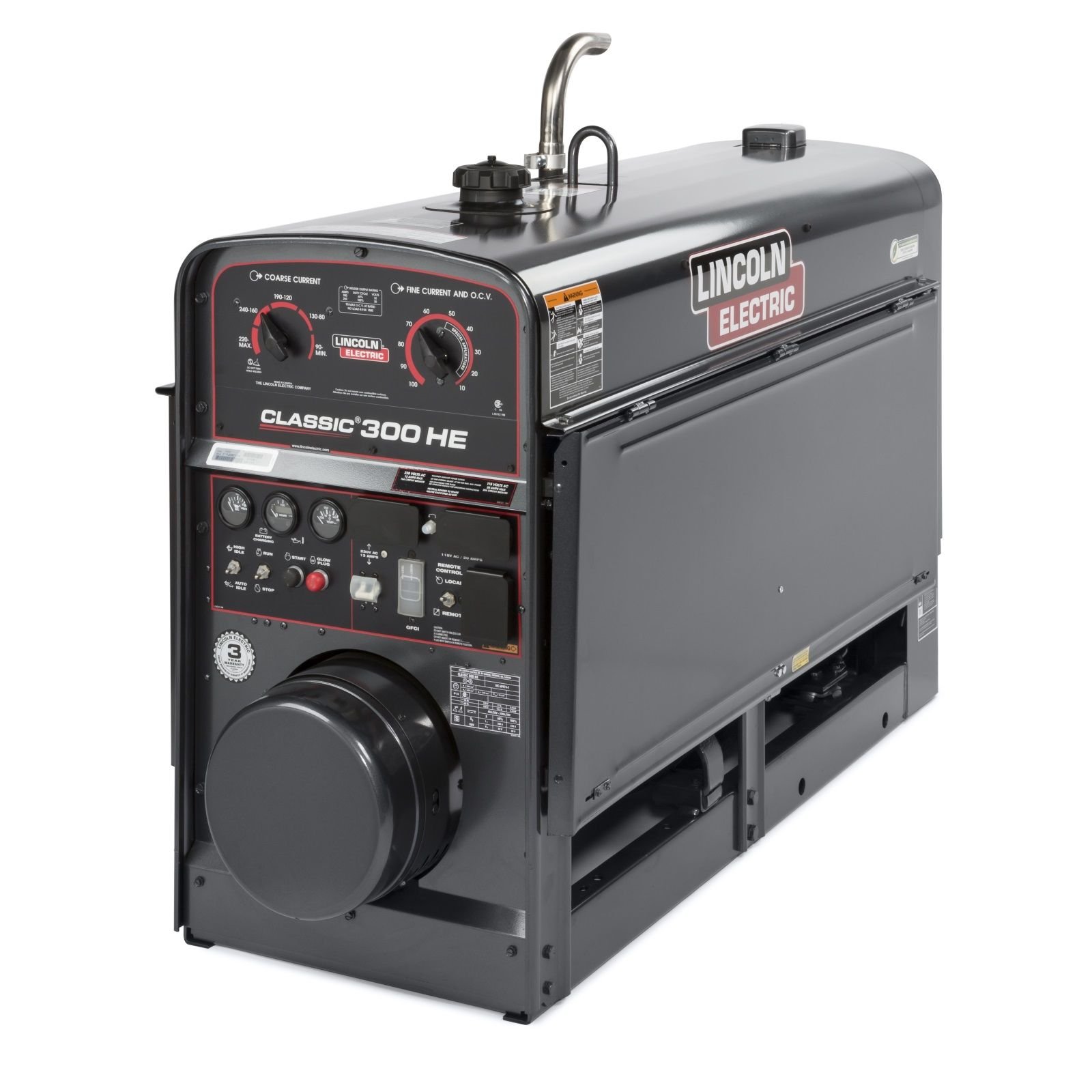

Lincoln Classic 300 HE Kubota T4 Welder Generator (High Efficiency)
$15,996.00
In Stock
Lincoln Classic 300 HE is a high-efficiency Kubota T4 welder generator designed for pipeline and heavy construction. Engineered for fuel savings and legendary arc performance.
- High-efficiency Kubota engine delivers superior fuel economy and low emissions
- Pure DC generator welding output provides the smooth arc required for pipe
- Brand New T4 compliant unit backed by a professional 3 Year Warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Lincoln Classic 300 He Kubota T4 Welder Generator K3198-1 Specs
- Brand: Lincoln Electric
- Model: Classic 300 HE Kubota T4
- MPN: K3198-1
- Welding Output: Up to 300 Amps DC
- Welding Process: Stick (SMAW), Gouging
- Generator Output: 3,000 Watts Continuous, 1-Phase AC Power
- Engine: Kubota D1503 3-Cylinder Diesel
- Engine Emission Compliance: Tier 4 Final
- Fuel Type: Diesel
- Fuel Tank Capacity: 17 gallons (64.3 liters)
- Run Time: Up to 13.5 hours at 1/2 load
- Start Type: Electric Start
- Duty Cycle: 100% @ 250A
- Auxiliary Power Receptacles: 120V Duplex, 240V Single
- Arc Performance: Smooth DC arc with Chopper Technology
- Applications: Pipeline, Structural Steel, Heavy Fabrication
- Weight: Approx. 1,235 lbs (560 kg)
- Dimensions: 66.7 in L × 24.3 in W × 40 in H
- Enclosure: Fully enclosed steel case
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Manufacturer Warranty
Lincoln Classic 300 HE Kubota T4 Welder Generator Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | Classic 300 HE Kubota (K4179-1) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW) |
| Inverter/Transformer Technology | Pure DC Generator with All-Copper Windings |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 40 – 350 A |
| Duty Cycle | 100% @ 300 A / 32V |
| Open Circuit Voltage (OCV) | 67 VDC |
| Rated Input Capacity | 3,000 Watts (Continuous) |
| Power Factor & Efficiency | HE (High Efficiency) Dedicated Diesel Output |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Liquid-Cooled (Kubota V1505) |
| Dimensions | 942 x 617 x 1651 mm |
| Net Weight | 632 kg |
| Smart Features | Fuel-Sip Idle, Optimized CC/CV Modes, Custom Pipeline Arc |
| Standard Compliance | NEMA, CSA, EPA Tier 4 Final |
| Primary Application | Pipeline Welding, Field Fabrication, Maintenance |
