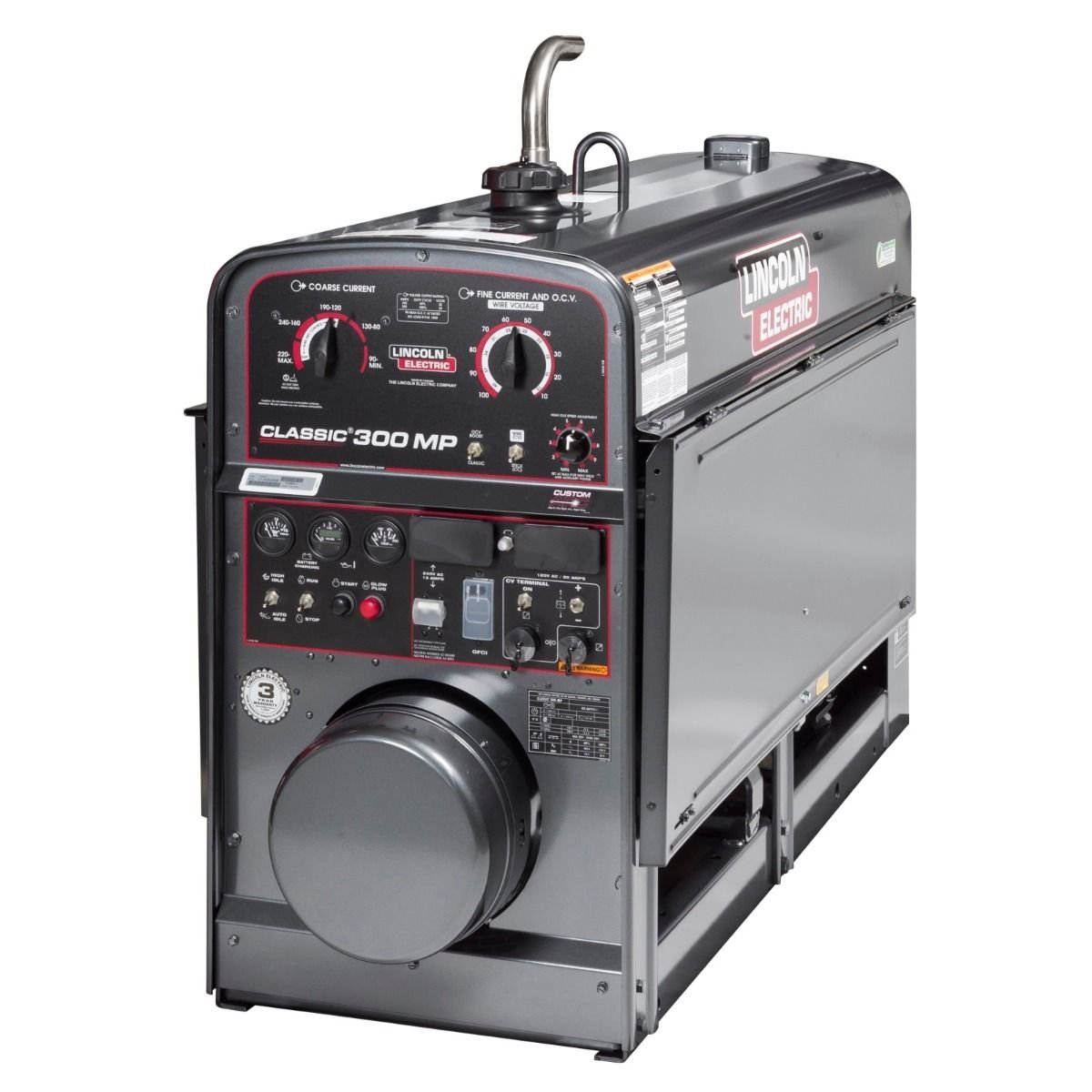

Lincoln Classic 300 MP Kubota CC/CV Welder Generator
$16,050.00
In Stock
Lincoln Classic 300 MP Kubota is a purpose-built pipeline welder offering superior CC/CV arc performance and multi-process capabilities. Engineered for fuel savings and durability.
- Pure DC generator welding output provides the smooth arc required for critical pipe
- Reliable Kubota diesel engine ensures long-term performance in remote locations
- Brand New unit features high-efficiency technology and 3-Year Lincoln Warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Lincoln Classic 300 Mp Kubota Cc/Cv Welder Generator K4264-1
- Brand: Lincoln Electric
- Model: Classic 300 MP (Kubota Diesel)
- MPN: K4264-1
- Engine: Kubota D1503, 3-Cylinder, Tier 4 Final Diesel
- Engine Power: 24.7 HP @ 1,800 RPM
- Fuel Type: Diesel
- Fuel Tank Capacity: 17 gallons (64.3 liters)
- Welding Output: 40 – 300 Amps DC
- Welding Duty Cycle: 100% at 250A
- Processes Supported: Stick, DC TIG, MIG, Flux-Cored (CV mode)
- Output Control: All-mechanical with fine control dial
- Generator Power: 3,000W continuous @ 120/240V AC
- Arc Characteristic: Pure DC output for X-ray quality welds
- Alternator Type: Brushless, maintenance-free
- Enclosure: Stainless steel roof and side panels
- Dimensions: 66 in L × 24.6 in W × 40 in H
- Weight: Approx. 1,585 lbs (719 kg)
- Noise Level: ~76 dB @ 23 ft under load
- GTIN: 015082680884
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Lincoln Electric Limited Warranty
Lincoln Classic 300 MP Kubota CC/CV Welder Generator Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | Classic 300 MP Kubota (K4091-1) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW) |
| Inverter/Transformer Technology | Pure DC Generator with Chopper Control |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 40 – 350 A |
| Duty Cycle | 100% @ 300 A / 32V |
| Open Circuit Voltage (OCV) | 67 VDC |
| Rated Input Capacity | 3,000 Watts (Continuous) AC Generator Power |
| Power Factor & Efficiency | Traditional Pipeline Arc with Modern Efficiency |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Liquid-Cooled (Kubota V1505) |
| Dimensions | 942 x 617 x 1651 mm |
| Net Weight | 623 kg |
| Smart Features | Multi-Process Switch (CC/CV), All-Copper Windings, Fuel-Sip Idle |
| Standard Compliance | NEMA, CSA, EPA Tier 4 Final |
| Primary Application | Cross-Country Pipeline, Oil and Gas Construction |
