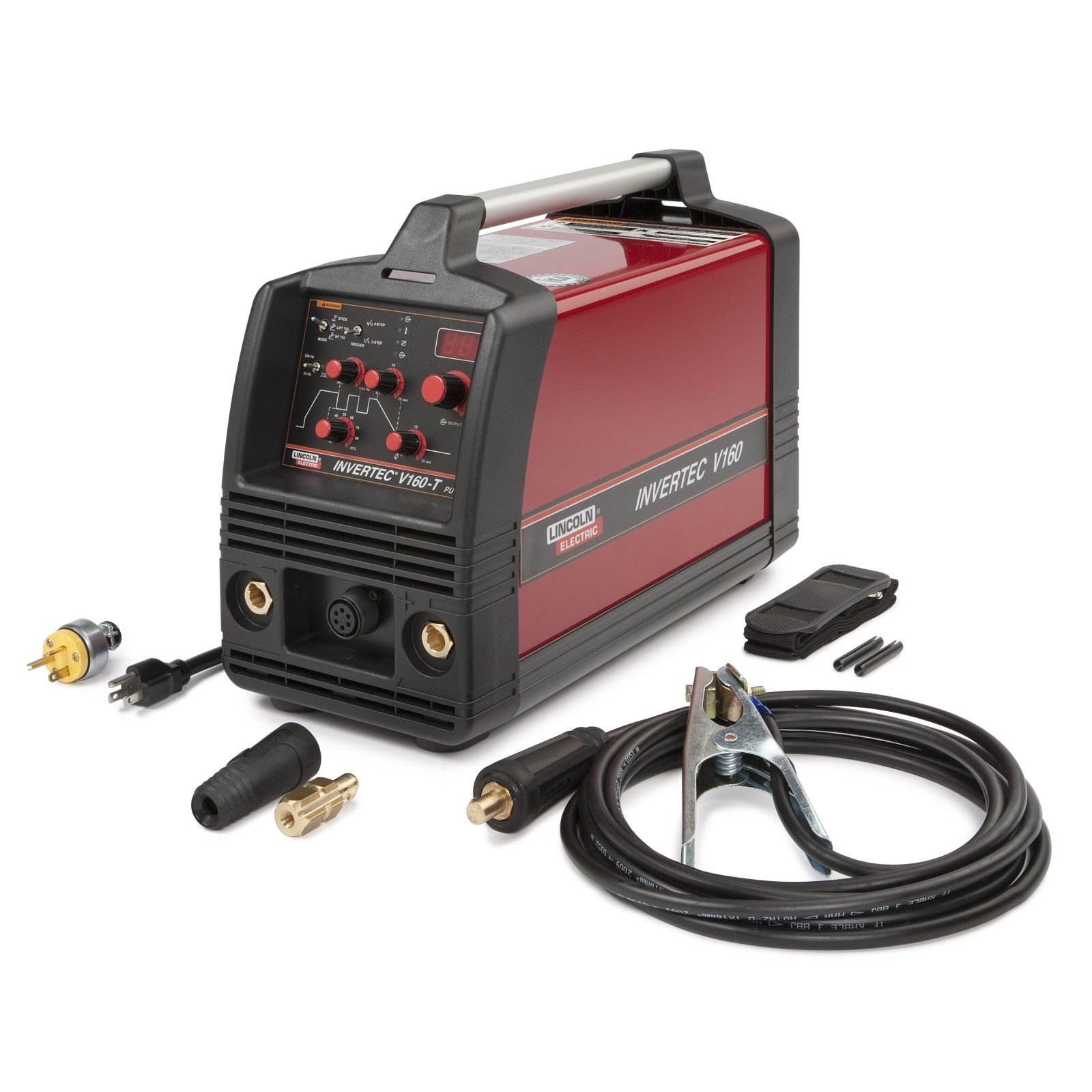

Lincoln K1845-1 Invertec 160-T Portable DC TIG Welder
$1,692.00
In Stock
Lincoln K1845-1 Invertec 160-T is a portable DC TIG welder for professional site repairs. This compact unit offers high-performance TIG and Stick.
- Features high-frequency TIG starting for non-contact ignition, preventing tungsten contamination in critical pressure and pipe welds
- Lightweight design and rugged construction make it the go-to machine for maintenance crews and HVAC technicians
- Brand New portable unit featuring Lincoln’s legendary reliability and manufacturer warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Lincoln Invertec 160-T Tig Welder K1845-1 Specs
- Brand: Lincoln Electric
- Model: Invertec 160-T
- MPN: K1845-1
- Processes: TIG (GTAW), Stick (SMAW)
- Input Voltage: 115/230V, 50/60 Hz
- Rated Output: 160A @ 30% Duty Cycle (230V)
- Output Range: TIG: 5–160A, Stick: 20–130A
- Power Source Type: Inverter
- Arc Starting: High Frequency Start
- Pulse TIG: Built-in
- Cooling: Fan-cooled
- Controls: Adjustable current, pulse, down slope, and post flow
- Remote Capability: Optional foot pedal or hand remote
- Weight: 24 lbs (10.9 kg)
- Dimensions: 14.6 x 5.9 x 11.4 in (370 x 150 x 290 mm)
- Applications: Light fabrication, automotive, repair, stainless and carbon steel
- Google Product Category: 2920 (Welding Machines)
- Condition: New
- Warranty: 3-Year Manufacturer Warranty
Lincoln Invertec 160-T Portable DC TIG Welder Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | Invertec 160-T (K1845-1) |
| Country of Origin | USA |
| Welding Process | DC TIG (GTAW), Stick (SMAW) |
| Inverter/Transformer Technology | Single-Phase IGBT Inverter |
| Input Voltage | 115 / 230 V (Dual Voltage) |
| Output Current Range | 5 – 160 A |
| Duty Cycle | 30% @ 160 A, 100% @ 100 A |
| Open Circuit Voltage (OCV) | 48 VDC |
| Rated Input Capacity | 5.5 kVA |
| Power Factor & Efficiency | Energy Efficient Portable Circuitry |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Forced Air |
| Dimensions | 320 x 200 x 430 mm |
| Net Weight | 10.5 kg |
| Smart Features | HF Start, Touch Start TIG, Adjustable Downslope, Digital Meter |
| Standard Compliance | CSA, CE, IEC 60974-1 |
| Primary Application | Light Industrial Maintenance, Installation Projects, HVAC |
