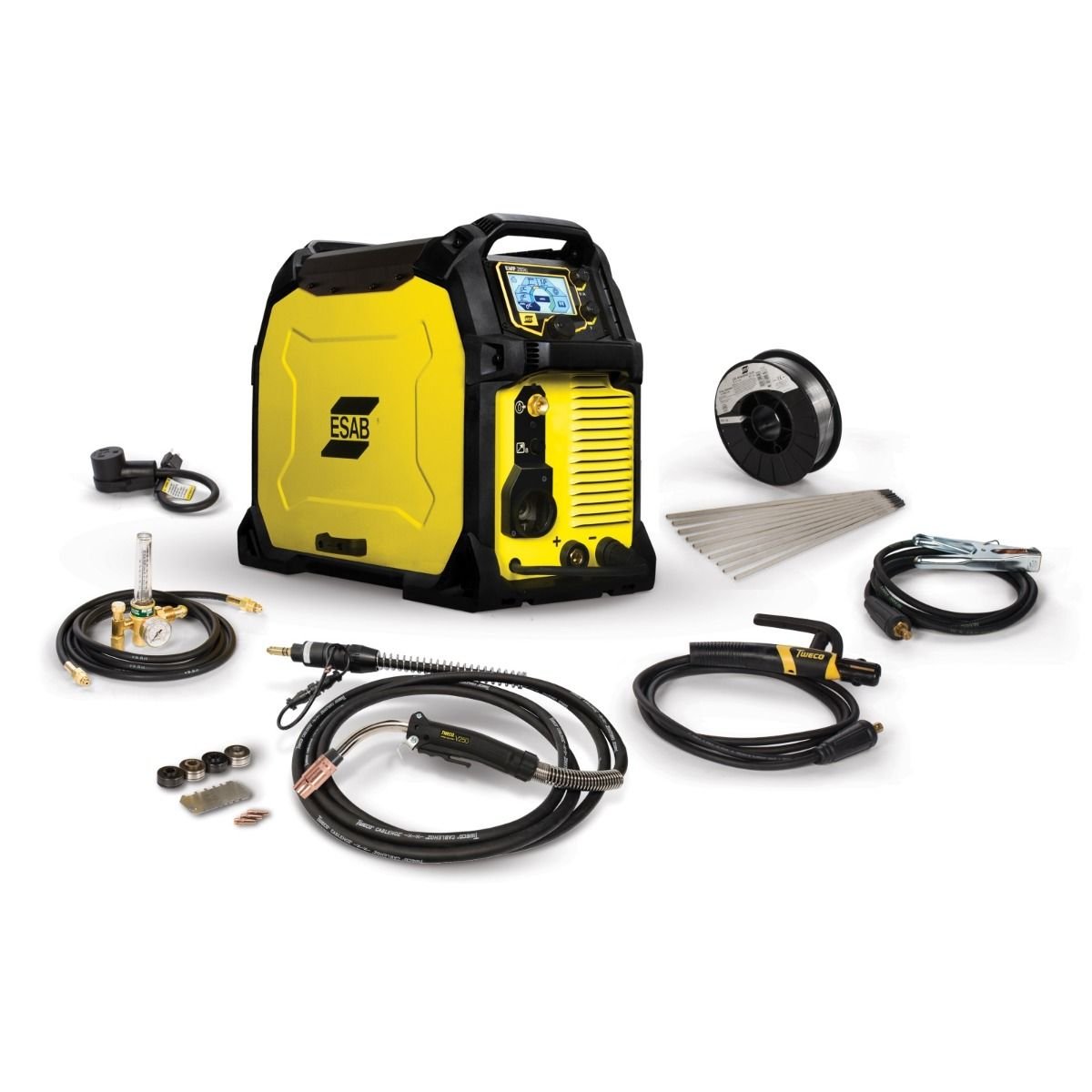

ESAB 0558102554 Rebel EMP 285ic 285A Multi-Process Welder (1PH)
$2,556.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Esab Rebel Emp 285Ic Mig/Stick/Tig Welder 1Ph 0558102554 Specs
- Brand: ESAB
- Model: Rebel EMP 285ic 1Ph
- MPN: 0558102554
- Processes: MIG (GMAW), Flux-Cored (FCAW), Stick (SMAW), TIG (GTAW)
- Output Range: 10–285 Amps
- Input Power: 230V, Single-Phase
- Duty Cycle: 285A @ 40%
- Technology: sMIG adaptive arc control
- Wire Feeder: Built-in, accepts up to 12 in. spools
- Digital Display: 4.3″ TFT color screen
- Weld Materials: Steel, Aluminum, Stainless Steel
- Portability: Robust, industrial housing with handle
- Weight: Approx. 70 lbs (32 kg)
- Dimensions: 26.9 in L × 9.8 in W × 16.7 in H
- Use Case: Heavy fabrication, industrial repair, farm equipment, auto body
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year ESAB Warranty
ESAB Rebel EMP 285ic 285A Multi-Process Welder (1PH) Technical Specifications
| Brand | ESAB |
|---|---|
| Full Model Name/SKU | Rebel EMP 285ic (0558102554) |
| Country of Origin | China |
| Welding Process | MIG (GMAW), Flux-Cored (FCAW), Stick (SMAW), Lift TIG (GTAW) |
| Inverter/Transformer Technology | IGBT Inverter |
| Input Voltage | 230 V (Single-Phase Only) |
| Output Current Range | 5 – 300 A |
| Duty Cycle | 40% @ 285 A, 100% @ 200 A |
| Open Circuit Voltage (OCV) | 68 VDC |
| Rated Input Capacity | 11.5 kVA |
| Power Factor & Efficiency | Active Power Factor Correction (PFC) Efficiency |
| Wire Feed Speed Range | 1.5 – 12.1 m/min (60 – 475 ipm) |
| Protection Class | IP23S |
| Insulation Class | Class F |
| Cooling System | Forced Air Cooling |
| Dimensions | 686 x 292 x 495 mm |
| Net Weight | 32 kg |
| Smart Features | sMIG (smartMIG) Technology, Multi-Lingual TFT Display, Spool Gun Compatible |
| Standard Compliance | CSA, CE, ISO |
| Primary Application | Mechanical Contractors, General Fabrication, Repair and Maintenance |
