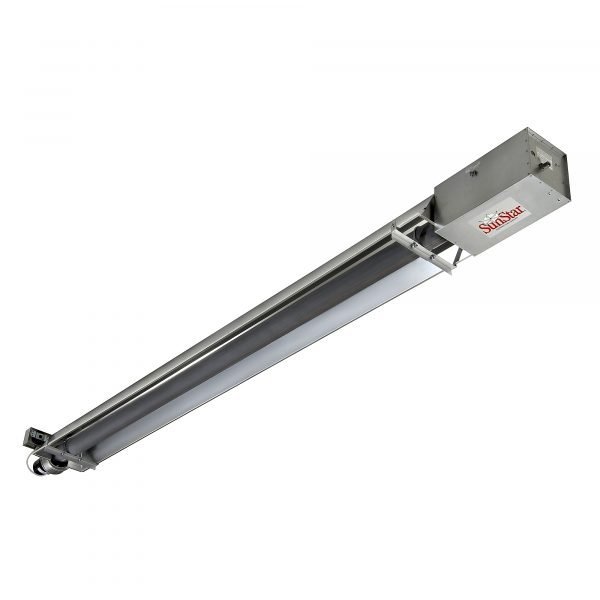

SunStar SIS175-40-TG-N5 Tough Guy Straight Vacuum Infrared Tube Heater 175K BTU
The SunStar SIS175-40-TG-N5 Tough Guy Straight Vacuum Infrared Tube Heater delivers 175,000 BTU of focused heat across a 40-foot straight tube, combining high output with the durability of the Tough Guy series for large commercial spaces. The vacuum (negative pressure) system ensures maximum thermal efficiency and safety containment of combustion products throughout the entire tube length. Ideal for heating long service bays, loading docks, and medium-sized factories, this heater provides uniform radiant warmth where air stratification is a concern. Choose the powerful, reliable, and safe performance of the SunStar SIS175-40-TG-N5 Tough heater for economical, high-quality industrial heating solutions.
Description
Offers fuel savings up to 50%. Tough Guy Straight Tube heaters ideal for complete building heating and can be installed in high humidity or corrosive environments. The emitter tubes are made of heat treated aluminized steel. Vacuum system pulls products of combustion through combustion chamber for increased radiant efficiency and greater safety. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 50ft. of ducting in fresh air and 75ft. sidewall venting capability. Vacuum system features a totally enclosed combustion chamber. Heavy duty draft inducer assembly features permanently lubricated totally enclosed ball bearing motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA. Installation and service must be performed by a licensed contractor and must conform to local codes and SunStar’s Installation Instructions. Read the Installation and Operating Instructions for specific Installation requirements prior to purchase. To help pick out the heater that’s right for you, view the Heat Loss Estimating Chart for proper model and heater selection.
What’s Included
- (1) Burner Package: Main Burner and hardware Emitter Tubes and Reflectors
| Item# | 4745595 |
| Brand | SunStar |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 198.0 lbs |
| Fuel Type | Natural Gas |
| Heat Output | 175,000 Btu/hour |
| Heat Type | Infrared |
| Heating Capability | 2,000 ft² |
| Blower Included | Yes |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 480 in |
| Thermostat Included | No |
| Volts | 120 |
| Amps | 3 |
| Product Weight | 158.4000 lb |
| Dimensions L x W x H (in.) | 480.0 x 13.0 x 8.0 in |
SunStar SIU75-20-TG-N5 Tough Guy Vacuum Heater Specs
| Brand | SunStar |
|---|---|
| Heat Output | 75,000 BTU/hr (Per Table) |
| Heating Capability | 1,000 sq. ft. |
| Fuel Type | Natural Gas |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 360 in |
| Vacuum Combustion System | Yes |
| Totally Enclosed Chamber | Yes |
| Heavy Duty Draft Inducer Assembly | Yes |
| Diagnostic Monitoring Light System | Yes |
| Sidewall Venting Capability (75ft) | Yes |
| CSA Certified | Yes |
| What's Included | (1) Burner Package: Main Burner, Hardware, Emitter Tubes, Reflectors |
| Product Weight | 129.6 lb |
| Ship Weight | 162.0 lbs |
Additional information
| Brands | SunStar |
|---|
