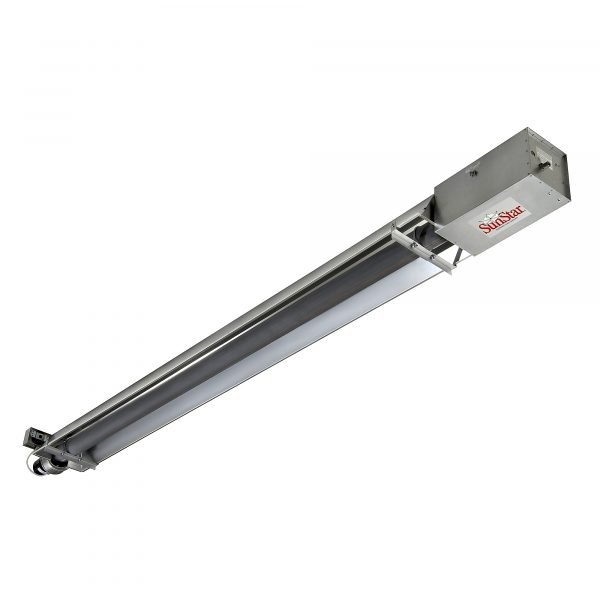

SunStar SIS175-50-TG-N5 Tough Guy Straight Vacuum Infrared Tube Heater 175K BTU
The SunStar SIS175-50-TG-N5 Tough Guy Straight Vacuum Infrared Tube Heater provides massive 175,000 BTU output across a 50-foot straight tube, engineered for durable, uniform heating in long, expansive industrial facilities. This heavy-duty Tough Guy model utilizes a vacuum (negative pressure) system for maximum heat transfer efficiency and enhanced operational safety across the extended tube length. Ideal for large assembly lines, warehouses, and vehicle inspection pits, the straight configuration ensures comprehensive radiant coverage along its path. Rely on the powerful output, superior safety features, and rugged construction of the SunStar SIS175-50-TG-N5 Tough heater for reliable, cost-effective heating in critical industrial environments.
Description
Offers fuel savings up to 50%. Tough Guy Straight Tube heaters ideal for complete building heating and can be installed in high humidity or corrosive environments. The emitter tubes are made of heat treated aluminized steel. Vacuum system pulls products of combustion through combustion chamber for increased radiant efficiency and greater safety. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 50ft. of ducting in fresh air and 75ft. sidewall venting capability. Vacuum system features a totally enclosed combustion chamber. Heavy duty draft inducer assembly features permanently lubricated totally enclosed ball bearing motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA. Installation and service must be performed by a licensed contractor and must conform to local codes and SunStar’s Installation Instructions. Read the Installation and Operating Instructions for specific Installation requirements prior to purchase. To help pick out the heater that’s right for you, view the Heat Loss Estimating Chart for proper model and heater selection.
What’s Included
- (1) Burner Package: Main Burner and hardware Emitter Tubes and Reflectors
| Item# | 4745481 |
| Brand | SunStar |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 234.0 lbs |
| Fuel Type | Natural Gas |
| Heat Output | 175,000 Btu/hour |
| Heat Type | Infrared |
| Heating Capability | 3,000 ft² |
| Blower Included | Yes |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 600 in |
| Thermostat Included | No |
| Volts | 120 |
| Amps | 3 |
| Product Weight | 187.2000 lb |
| Dimensions L x W x H (in.) | 600.0 x 13.0 x 8.0 in |
SunStar SIU175-40-TG-N5 Tough Guy Vacuum Heater Specs
| Brand | SunStar |
|---|---|
| Heat Output | 100,000 BTU/hr (Per Table) |
| Heating Capability | 1,250 sq. ft. |
| Fuel Type | Propane (Per Table) |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 360 in |
| Vacuum Pull Radiant Efficiency | Yes |
| Permanently Lubricated Blower Motor | Yes |
| Direct Spark Ignition | Yes |
| 100% Gas Shut-off Safety Control | Yes |
| Burner Inspection Sight Glass | Yes |
| Made in the USA | Yes |
| What's Included | (1) Burner Package: Main Burner, Hardware, Emitter Tubes, Reflectors |
| Product Weight | 129.6 lb |
| Ship Weight | 162.0 lbs |
