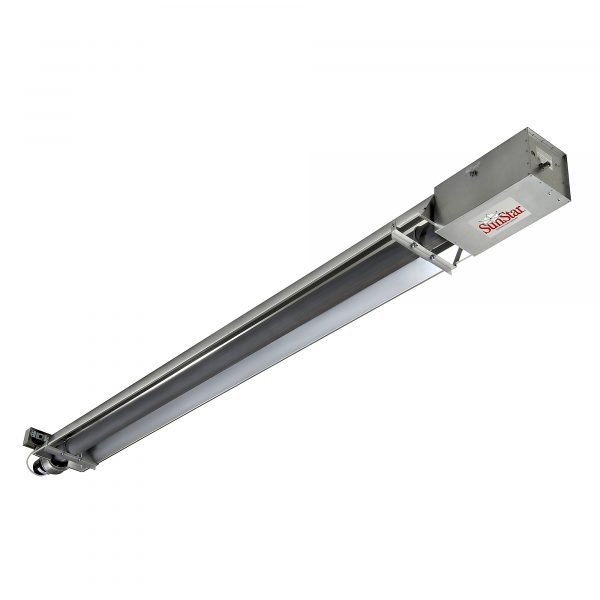

SunStar SIS50-20-TG-N5 Tough Guy Straight Vacuum Infrared Tube Heater 50K BTU
To eliminate winter drafts in heavy-duty commercial workspaces, this 20-ft straight-line radiant system delivers targeted, fuel-efficient overhead warmth. The SunStar SIS50-20-TG-N5 Tough Guy Straight Vacuum Infrared Tube Heater 50K BTU utilizes an advanced vacuum-induced burner to drive natural gas cleanly through linear tubes. A standard 120V single-phase electrical path controls the automatic spark ignition system to ensure safe, unassisted workplace heating cycles.
Description
Offers fuel savings up to 50%. Tough Guy Straight Tube heaters ideal for complete building heating and can be installed in high humidity or corrosive environments. The emitter tubes are made of heat treated aluminized steel. Vacuum system pulls products of combustion through combustion chamber for increased radiant efficiency and greater safety. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 50ft. of ducting in fresh air and 75ft. sidewall venting capability. Vacuum system features a totally enclosed combustion chamber. Heavy duty draft inducer assembly features permanently lubricated totally enclosed ball bearing motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA. Installation and service must be performed by a licensed contractor and must conform to local codes and SunStar’s Installation Instructions. Read the Installation and Operating Instructions for specific Installation requirements prior to purchase. To help pick out the heater that’s right for you, view the Heat Loss Estimating Chart for proper model and heater selection.
What’s Included
- (1) Burner Package: Main Burner and hardware Emitter Tubes and Reflectors
| Item# | 4745608 |
| Brand | SunStar |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 126.0 lbs |
| Fuel Type | Natural Gas |
| Heat Output | 50,000 Btu/hour |
| Heat Type | Infrared |
| Heating Capability | 500 ft² |
| Blower Included | Yes |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 240 in |
| Thermostat Included | No |
| Volts | 120 |
| Amps | 3 |
| Product Weight | 100.8000 lb |
| Dimensions L x W x H (in.) | 240.0 x 13.0 x 8.0 in |
SunStar SIU150-40-TG-N5 Tough Guy Vacuum Heater Specs
| Brand | SunStar |
|---|---|
| Heat Output | 75,000 BTU/hr (Per Table) |
| Heating Capability | 1,000 sq. ft. |
| Fuel Type | Propane (Per Table) |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 240 in |
| Vacuum Pull Radiant System | Yes |
| Fuel Savings up to 50% | Yes |
| Reliable Direct Spark Ignition | Yes |
| 100% Gas Shut-off Safety Control | Yes |
| Maintenance-Free Draft Inducer Motor | Yes |
| Made in the USA | Yes |
| What's Included | (1) Burner Package: Main Burner, Hardware, Emitter Tubes, Reflectors |
| Product Weight | 100.8 lb |
| Ship Weight | 126.0 lbs |
