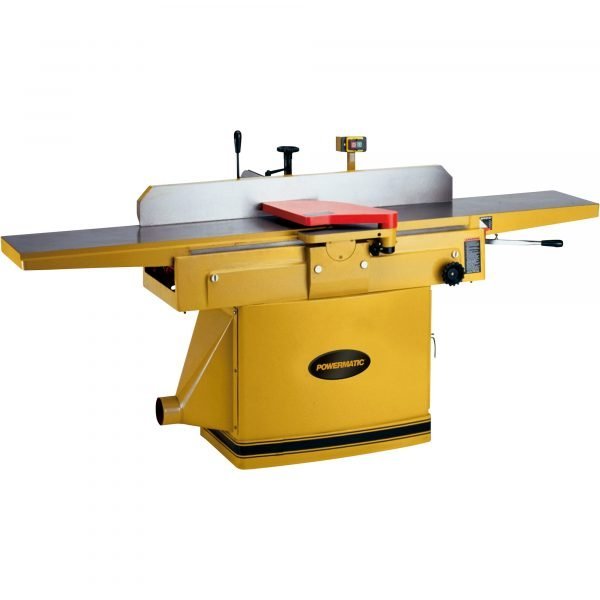

Powermatic 1285 12 In. Jointer - 3 HP, 3 PH

Powermatic 1285 12 In. Jointer – 3 HP, 3 PH

$3,941.00
In Stock
In Stock
Add to wishlist
2-Day Shipping
All orders are processed and dispatched within 2 days
SKU: 1285
Category:
Brand:

Description

The Powermatic 12in. Jointer offers big capacity and performance in a machine loaded with features. The large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle setup at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. The helical system makes fast work of knife changing and never needs adjustment.

What’s Included

    (1) Powermatic 12in. Jointer, 3 HP, 3 PH, 230/460 Volts, Model# 1285

Item# 84650
Brand Powermatic
Manufacturer’s Warranty 5 year limited warranty
Ship Weight 762.0 lbs
Product Type Jointers
Max. Cutting Depth 3/4 in
Cutters (qty.) 42
Cutterhead Speed (RPM) 5,000
Motor Power (HP) 3
Motor Voltage 230/460
Amps 15/10
Product Weight 812 lb
Dimensions L x W x H (in.) 25 x 73 x 46 in

Powermatic 1285 12 In. Jointer - 3 PH Helical Technical Specifications

BrandPowermatic
Full Model SKU1285 (84650)
Country of OriginTaiwan
Motor Power3 HP
Power Requirements230/460V, 15/10 Amps
Spindle/Blade Speed5,000 RPM
Blade/Cutterhead DiameterHelical Head w/ 42 Inserts
Max. Depth of Cut3/4 in
Max. Width of Cut / Rip Capacity12 in.
Fence System TypeRack and Pinion Fence Assembly
Safety FeaturesHelical System (No adjustment needed), Parallelogram Table Design
Overall Dimensions25 x 73 x 46 in.
Net Weight368 kg
ApplicationIndustrial High-finish Woodworking, Fast Knife Changing
