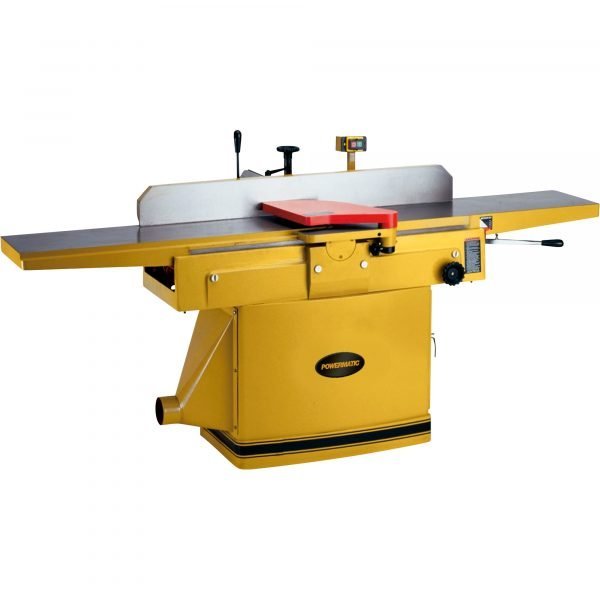

Powermatic 1285 12 In. Jointer – 3 HP, 1 PH
The Powermatic 1285 12 In. Jointer is a powerful, wide-capacity jointer, offering a 12-inch max width and driven by a robust 3 HP motor configured for convenient Single Phase (1 PH) electricity. This model brings industrial capacity and stability to larger home shops or commercial facilities where 3-phase power is unavailable. Its large, accurate tables ensure professional results on wide lumber. Choose the wide capacity, stability, and accessibility of the Powermatic 1285 12 In. Jointer 3 HP 1 PH for serious stock dimensioning.
Description
The Powermatic 12in. Jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle setup at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty.
What’s Included
- (1) Powermatic 12in. Jointer, 3 HP, 1 PH, 230V, Model# 1285 Jointer
| Item# | 84665 |
| Brand | Powermatic |
| Manufacturer’s Warranty | 5 year limited warranty |
| Ship Weight | 762.0 lbs |
| Product Type | Jointers |
| Max. Cutting Depth | 3/4 in |
| Cutters (qty.) | 3 |
| Cutterhead Speed (RPM) | 5.000 |
| Motor Power (HP) | 3 |
| Motor Voltage | 230 |
| Amps | 30 |
| Product Weight | 835 lb |
| Dimensions L x W x H (in.) | 77 x 25 x 46 in |
Powermatic 1285 12 In. Jointer - 1 PH Technical Specifications
| Brand | Powermatic |
|---|---|
| Full Model SKU | 1285 (84665) |
| Country of Origin | Taiwan |
| Motor Power | 3 HP |
| Power Requirements | 230V, 30 Amps |
| Spindle/Blade Speed | 5,000 RPM |
| Blade/Cutterhead Diameter | 3 Knives |
| Max. Depth of Cut | 3/4 in |
| Max. Width of Cut / Rip Capacity | 12 in. |
| Fence System Type | Rack and Pinion Fence Assembly |
| Safety Features | Parallelogram Design, Ram Lock Fence, 45°/90° Positive Stops |
| Overall Dimensions | 77 x 25 x 46 in. |
| Net Weight | 379 kg |
| Application | Industrial Capacity Jointing, Professional Finishing |
