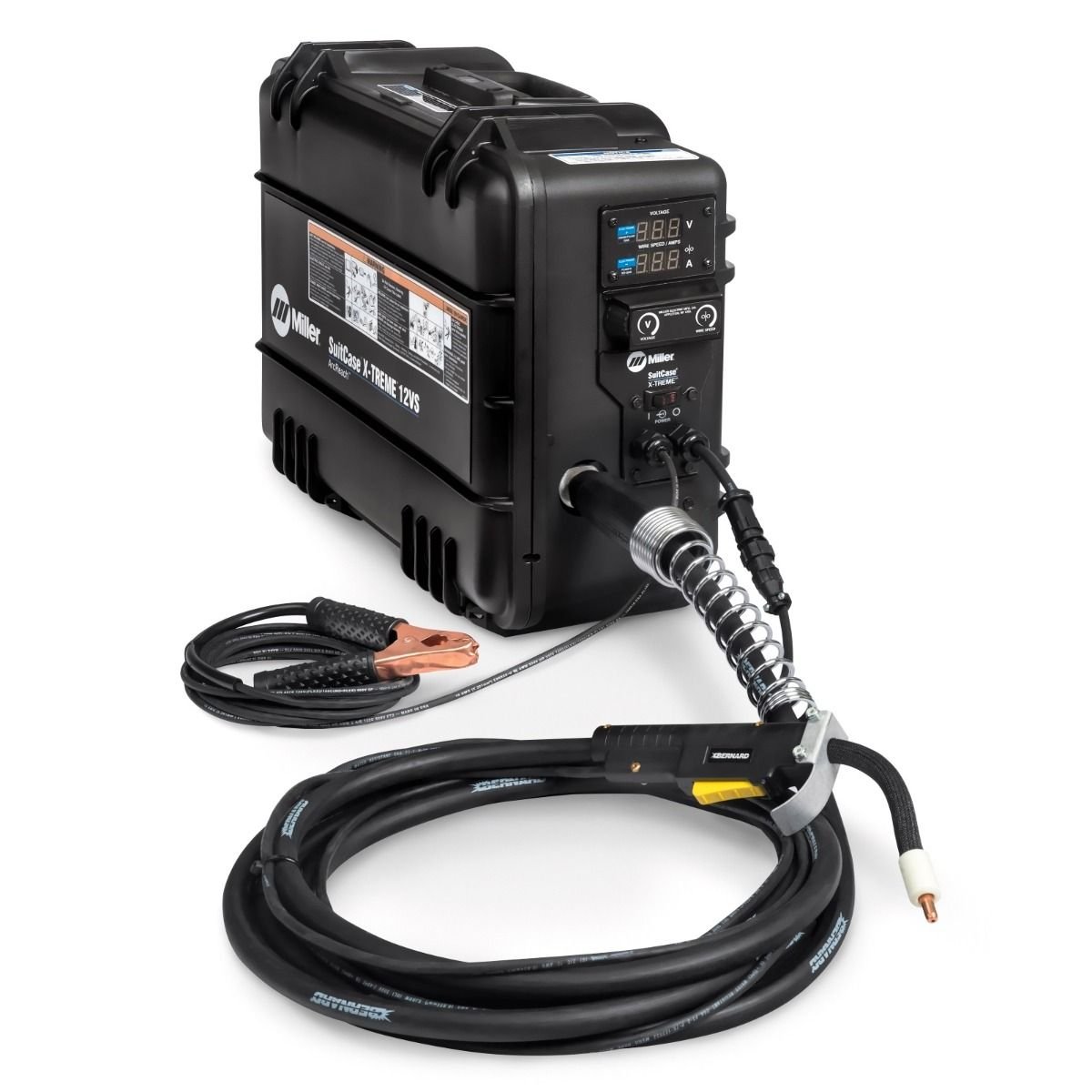

Miller 951731 ArcReach SuitCase 12 Wire Feeder w/ Flux Cored Gun
$2,436.00
In Stock
Miller 951731 ArcReach SuitCase 12 is a rugged, portable wire feeder with a Flux-Cored gun. This unit is built for extreme field conditions.
- ArcReach technology allows the operator to adjust welding parameters at the feeder without walking back to the power source
- Designed for outdoor use with a flame-retardant, high-impact case that protects internal components from dirt and moisture
- Brand New portable feeder including Bernard Flux-Cored gun and Miller’s industrial warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Miller Arcreach Suitcase 12 W/Flux Cored Gun 951731 Specs
- Brand: Miller
- Model: ArcReach SuitCase 12
- MPN: 951731
- Type: Wire Feeder
- Compatible Processes: Flux-Cored (FCAW), MIG (GMAW)
- Input Power: 24V DC (from power source)
- ArcReach Technology: Yes – remote voltage control at the feeder
- Wire Spool Capacity: 12 in. (up to 44 lb spool)
- Drive Roll System: 4-roll gear-driven
- Wire Feed Speed: 50 – 780 IPM
- Included Gun: Flux-Cored Gun
- Enclosure: Flame-retardant, crush-resistant, weather-resistant
- Controls: Digital meters, voltage and wire speed settings
- Applications: Field welding, construction, heavy fabrication
- Dimensions: 21.5 in. L × 7.1 in. W × 14.2 in. H
- Weight: 35 lbs (15.9 kg)
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year True Blue Warranty
Miller ArcReach SuitCase 12 Wire Feeder w/ Flux Cored Gun Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | ArcReach SuitCase 12 w/ Flux Cored Gun (951731) |
| Country of Origin | USA |
| Welding Process | Flux-Cored (FCAW), MIG (GMAW) |
| Inverter/Transformer Technology | ArcReach Communication (Across-the-Arc) |
| Input Voltage | 14 – 110 VDC (Weld Cable Powered) |
| Output Current Range | Up to 425 A Rating |
| Duty Cycle | 100% @ 425 A |
| Open Circuit Voltage (OCV) | N/A |
| Rated Input Capacity | N/A |
| Power Factor & Efficiency | ArcReach Technology for Remote Voltage Control |
| Wire Feed Speed Range | 1.3 – 19.8 m/min (50 – 780 ipm) |
| Protection Class | IP23 (Polycarbonate Flame-Retardant Case) |
| Insulation Class | Class F |
| Cooling System | Passive |
| Dimensions | 394 x 229 x 533 mm |
| Net Weight | 15.9 kg |
| Smart Features | ArcReach Communication, Dura-Flux Gun, Heavy-Duty Drive Roll System |
| Standard Compliance | CSA, CE |
| Primary Application | Heavy Industrial Construction, Shipyards, Structural Steel Field Work |
