Miller 951696 Dynasty 800 AC/DC TIG Water-Cooled Pkg w/ Wired Foot Control
$16,980.00
In Stock

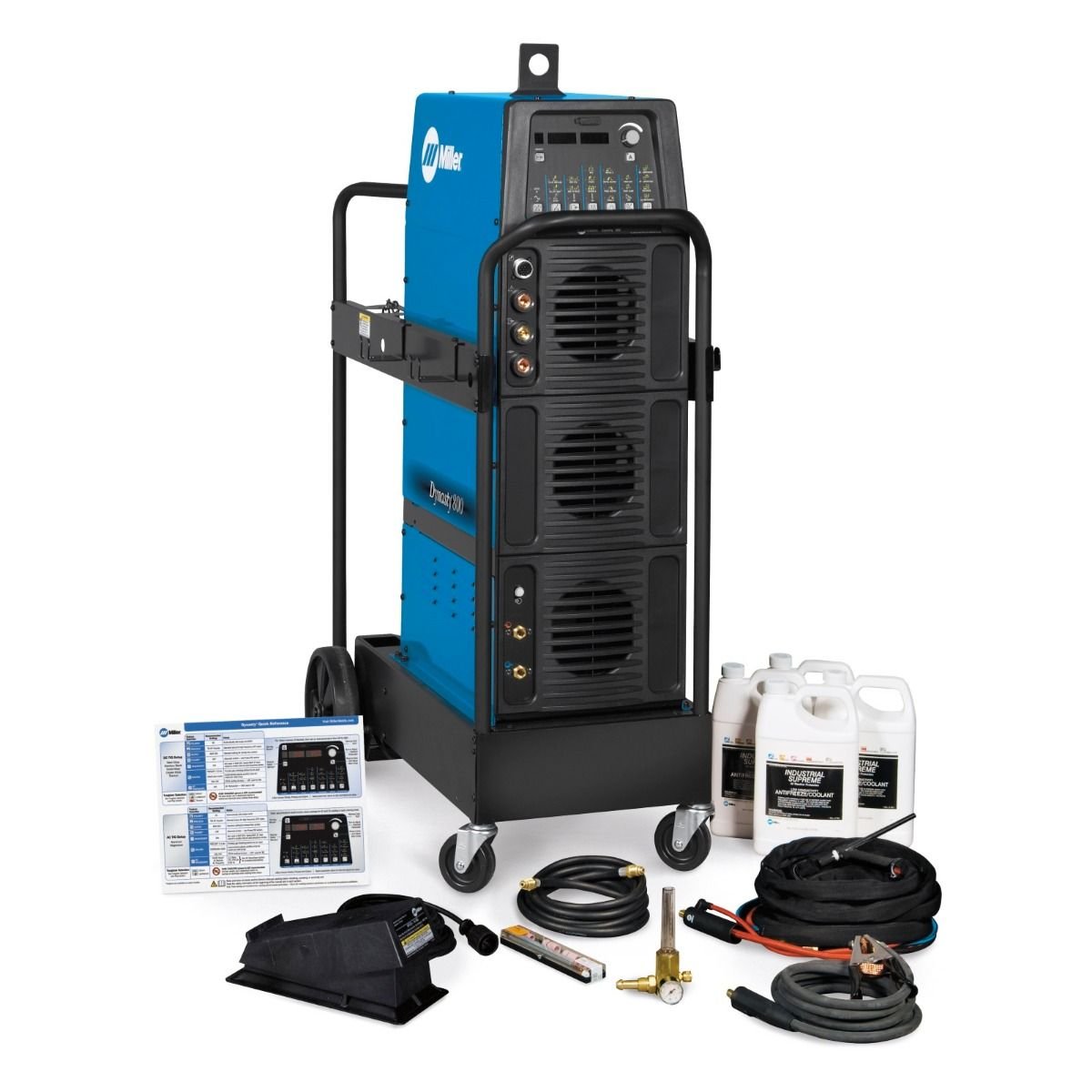

Miller 951696 Dynasty 800 is a water-cooled AC/DC TIG package featuring a wired foot control. This is a massive production-ready TIG station.
- Wired foot control ensures zero interference for critical, high-amperage industrial welds up to 800 Amps
- Complete water-cooled package provides everything needed for continuous, high-output welding on thick-plate aluminum and alloys
- Brand New industrial package including cart, cooler, and professional TIG accessories with Miller’s warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Miller Dynasty 800 Tig Welder And Water-Cooled Package With Foot Control 951696 Specs
- Brand: Miller
- Model: Dynasty 800 TIG Welder Water-Cooled Package with Foot Control
- MPN: 951696
- Process: TIG (GTAW), Stick (SMAW)
- Output Range (TIG): 3 – 800 Amps
- Output Range (Stick): 5 – 800 Amps
- Input Power: 380–575V, 3-Phase, Auto-Line
- Duty Cycle: 100% @ 800A (3-Phase, TIG)
- Cooling: Water-Cooled
- Foot Control: Included (Wireless Compatible)
- Waveforms: Sine, Triangle, Square, Soft Square
- AC Frequency Control: 20–400 Hz
- AC Balance Control: Adjustable
- Arc Start: HF Start, Lift-Arc
- Pulsed Welding: Yes (Adjustable Parameters)
- Memory Settings: Program Storage and Recall
- Display: Digital with Menu Navigation
- Dimensions: 25.6 in H × 13.25 in W × 28.5 in D
- Weight: Approx. 180 lbs (82 kg)
- Applications: Heavy Industrial, Shipyards, Pipe Welding, Structural Steel
- Compliance: CSA, NEMA Rated
- Warranty: 3-Year Miller True Blue Warranty
- Condition: New
- Google Product Category: 2920 (Welding Machines)
Miller Deltaweld 500 Power Source w/ ArcConnect (230/460V) Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Deltaweld 500 Power Source (907785) |
| Country of Origin | USA |
| Welding Process | MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored (FCAW) |
| Inverter/Transformer Technology | Dedicated Inverter MIG Power Source |
| Input Voltage | 230 / 460 V (Three-Phase) |
| Output Current Range | 20 – 600 A |
| Duty Cycle | 100% @ 500 A |
| Open Circuit Voltage (OCV) | 85 VDC |
| Rated Input Capacity | 23.2 kVA |
| Power Factor & Efficiency | 0.91 Power Factor / 86% Efficiency |
| Wire Feed Speed Range | N/A (Power Source Only) |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Fan-On-Demand |
| Dimensions | 714 x 424 x 714 mm |
| Net Weight | 66 kg |
| Smart Features | ArcConnect Digital Communication, Wind Tunnel Technology, Fan-On-Demand |
| Standard Compliance | CSA, CE, IEC 60974-1 |
| Primary Application | Automotive Manufacturing, General Fabrication, Heavy Industrial Production |
