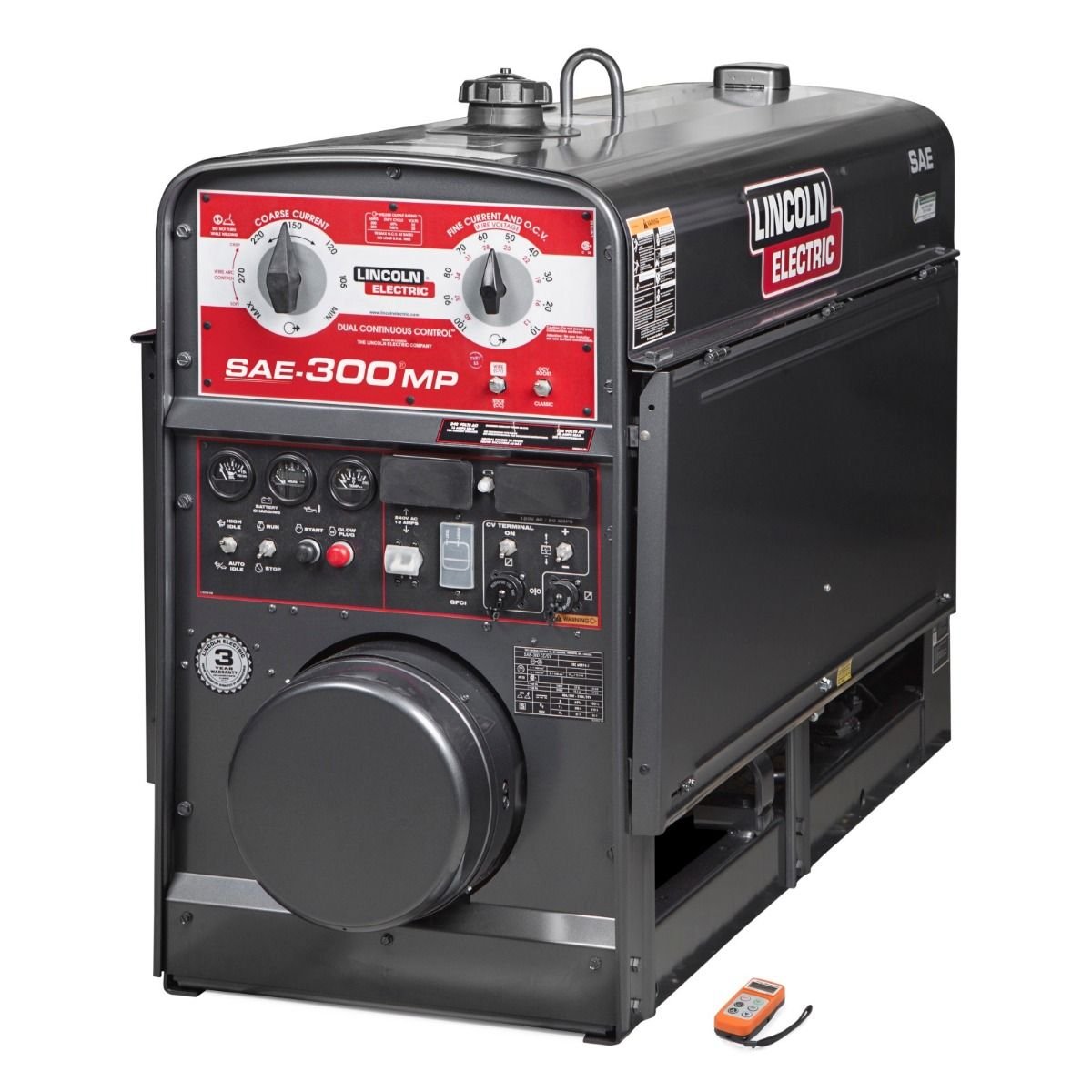

Lincoln SAE 300 MP Welder/Generator w/ Wireless Remote
$17,850.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Lincoln Sae 300 Mp Welder/Generator W/Wireless Remote K4090-2 Specs
- Brand: Lincoln Electric
- Model: SAE-300 MP
- MPN: K4090-2
- Engine: Perkins 403F-15T Tier 4 Diesel, 3-cylinder
- Engine Power: 24.7 HP @ 1,800 RPM
- Fuel Type: Diesel
- Fuel Tank Capacity: 17 gallons (64.3 liters)
- Welding Output: 40 – 300A (DC), 100% Duty Cycle at 250A
- Welding Processes: DC Stick, DC TIG, MIG (CV Mode)
- Arc Control: Variable, with Fine Current Adjustment
- Wireless Remote: Included (K4268-1), up to 100 ft range
- Generator Power: 3,000W Continuous, 120V/240V AC
- Noise Level: ~76 dB @ 23 ft under load
- Dimensions: 66 in L × 24.6 in W × 40 in H
- Weight: Approx. 1,585 lbs (719 kg)
- Enclosure: Stainless steel roof and side panels
- Brushless Alternator: Yes – maintenance-free
- GTIN: 015082669162
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Lincoln Electric Limited Warranty
Lincoln SAE 300 MP Welder/Generator w/ Wireless Remote Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | SAE-300 MP (K4090-1) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW) |
| Inverter/Transformer Technology | DC Generator / Chopper Technology |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 40 – 350 A |
| Duty Cycle | 100% @ 300 A / 32V |
| Open Circuit Voltage (OCV) | 67 VDC |
| Rated Input Capacity | 3,000 Watts (Continuous) AC Generator Power |
| Power Factor & Efficiency | Pure DC Output (Low Ripple) |
| Wire Feed Speed Range | N/A (Compatible with LN-Series Feeders) |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Liquid-Cooled (Perkins 403F-15T Turbo Diesel) |
| Dimensions | 917 x 711 x 1702 mm |
| Net Weight | 632 kg |
| Smart Features | Wireless Remote Control, MP (Multi-Process) Switch, OCV Control |
| Standard Compliance | NEMA, CSA, EPA Tier 4 Final |
| Primary Application | Pipeline Welding, Cross-Country Construction, Heavy Fabrication |
