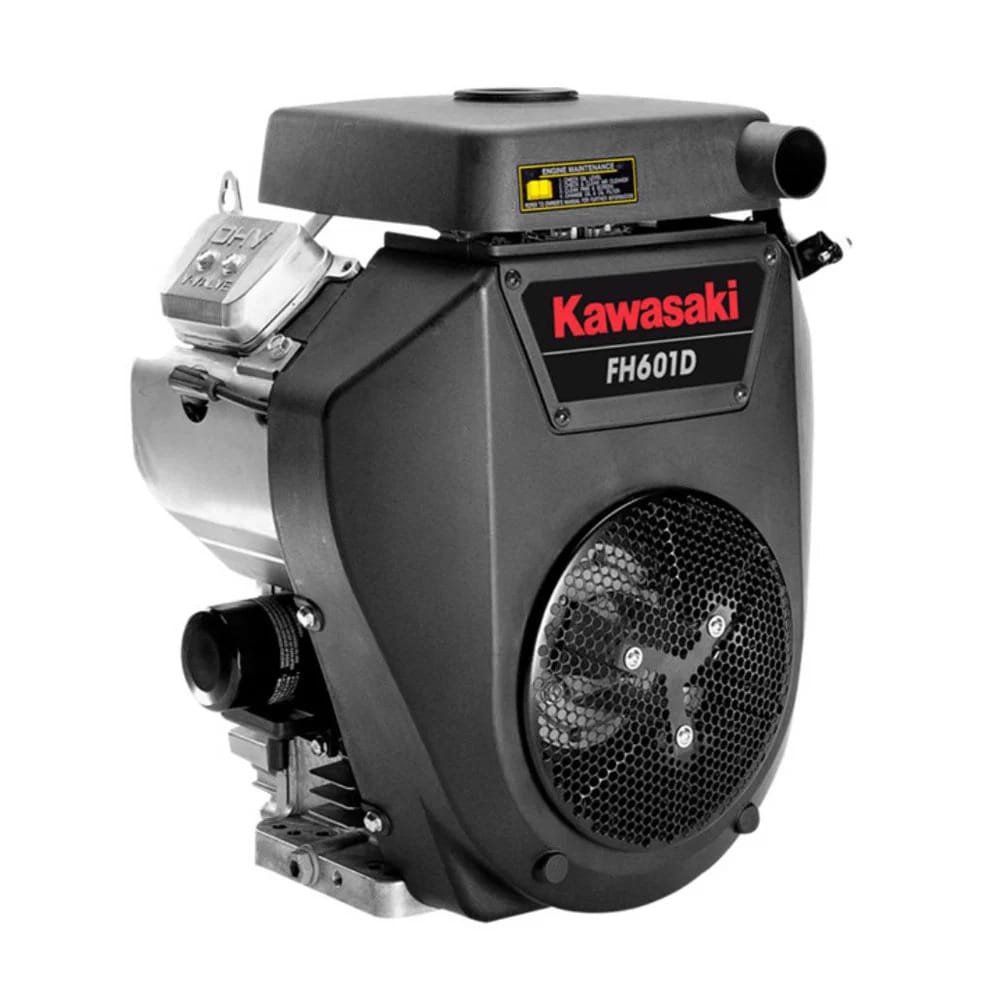

Kawasaki FH601D – 19HP V-Twin Horizontal Engine
$1,049.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Kawasaki FH601D S01 S Horizontal Engine FH601D FS01 S
Kawasaki FH601D S01-S 675cc 16.4 HP OHV 4-Stroke Air-Cooled V-Twin Engine, 1-1/8″ (28.575mm) x 100mm Crankshaft, Electric Start, Standard Muffler. Kawasaki Horizontal Engines World-renowned engineering helps ensure that Kawasaki Engines deliver unmatched power and durability, and most important, reliability.
| BRAND | Kawasaki |
|---|---|
| MODEL NUMBER | FH601D-(F)S01-S |
| WARRANTY | 3 Year |
| SHIPPING WEIGHT | 100 |
| DISPLACEMENT | 675cc |
| STARTER TYPE | Electric |
| CRANKSHAFT ORIENTATION | Horizontal |
| FUEL SYSTEM | Gasoline |
| CRANKSHAFT DIMENSIONS | 1-1/8″ x 100mm |
| CRANKSHAFT DIAMETER | 1-1/8″ |
| CRANKSHAFT LENGTH | 100mm |
| CYLINDERS | 2 |
| CYLINDER BORE TYPE | Cast Iron Liner |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | Yes |
| OIL CAPACITY | 1.7 qt |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Internally Vented |
Honda GX340 - 11HP 337cc Horizontal Electric Start Specs
| Brand | Honda |
| Full Model Code | GX340UT2 |
| Country of Origin | Thailand |
| Engine Series/Family | GX Series (Commercial Grade) |
| Engine Type | Air-cooled 4-stroke OHV cylinder |
| Displacement | 389 cc |
| Net Power Output | 10.7 HP (8.0 kW) @ 3,600 rpm |
| Max. Net Torque | 26.4 Nm (19.5 lbs-ft) @ 2,500 rpm |
| Bore x Stroke | 88 x 64 mm |
| Compression Ratio | 8.2:1 |
| Cooling System | Forced Air |
| Ignition System | Digital CDI |
| Starting System | Electric and Recoil Start |
| Fuel Tank Capacity | 6.1 Liters |
| Fuel Consumption | 3.1 L/h @ 3,600 rpm |
| Oil Capacity & Grade | 1.1 L (SAE 10W-30) |
| PTO Shaft Rotation | Counterclockwise |
| Dry Weight | 31.7 kg (69.9 lbs) |
| Dimensions | 407 x 459 x 437 mm |
| Application | Large industrial pumps and floor grinders. |
