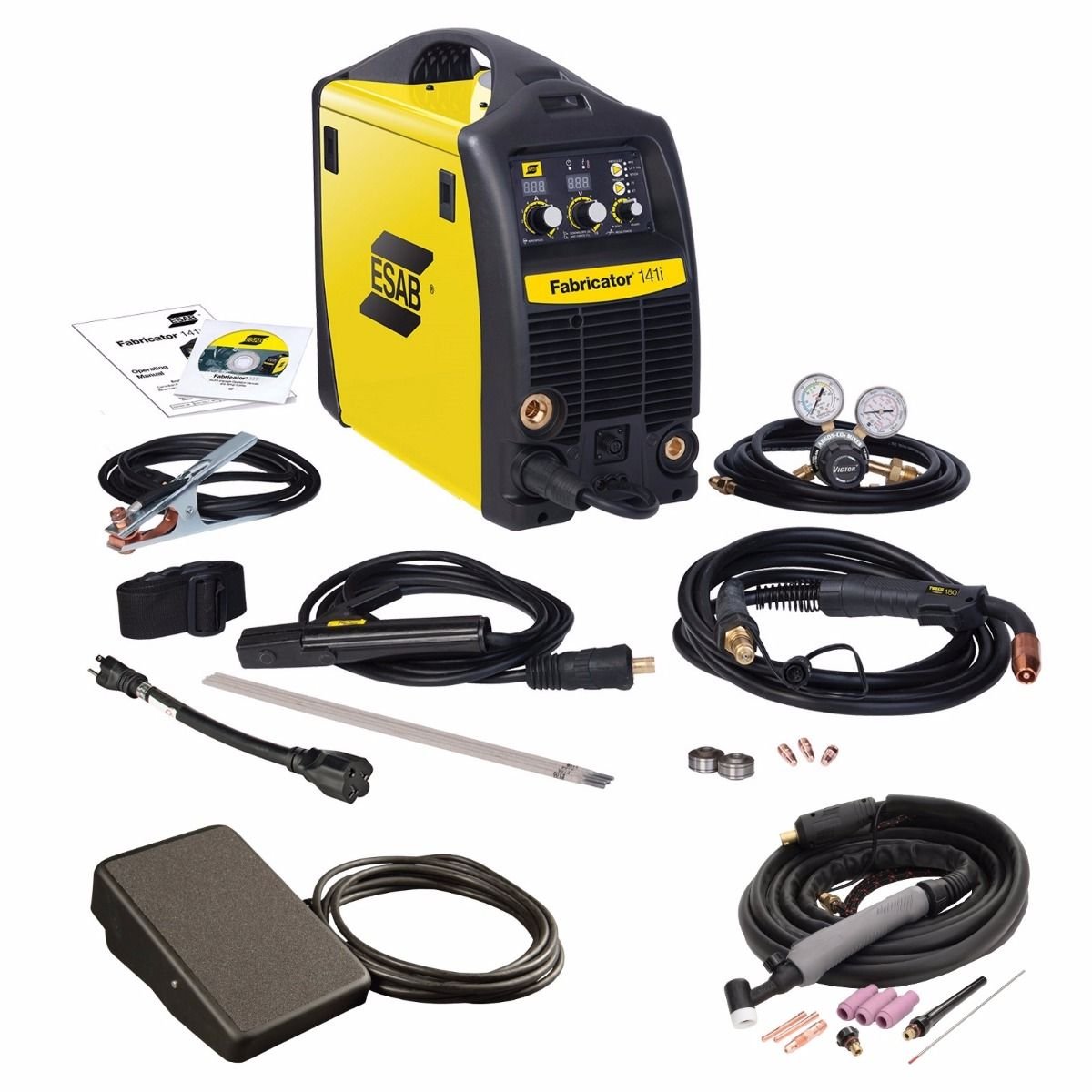

ESAB W1003141 Fabricator 141i Multi-Process Welding System w/ TIG Torch & Foot Control
$720.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Esab Fabricator 141I Multi Process Welding System Tig Torch And Foot Control W1003141 Specs
- Brand: Esab
- Model: Fabricator 141i
- MPN: W1003141
- Process Type: MIG, Stick (SMAW), TIG (GTAW)
- Input Voltage: 120V AC, 50/60 Hz
- Input Phase: Single Phase
- Output Range: 10A – 140A
- Duty Cycle: 20% @ 140A
- Weldable Materials: Steel, Stainless Steel, Aluminum (with spool gun)
- Wire Diameter: 0.023″ – 0.035″ (0.6 – 0.9 mm)
- Electrode Diameter: 1/16″ – 1/8″ (1.6 – 3.2 mm)
- Control Interface: Analog dial with LED indicators
- Included Accessories: TIG torch, foot pedal, electrode holder, ground clamp, MIG gun
- Portability: Yes, includes carrying handle
- Dimensions: 15.6 in L × 7.6 in W × 12.8 in H
- Weight: 33 lbs (15 kg)
- Applications: Auto repair, home DIY, farm/ranch, light industrial
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Limited Warranty
ESAB Fabricator 141i Multi-Process Welding System Technical Specifications
| Brand | ESAB |
|---|---|
| Full Model Name/SKU | Fabricator 141i (W1003141) |
| Country of Origin | China |
| Welding Process | MIG (GMAW), Stick (SMAW), Lift TIG (GTAW) |
| Inverter/Transformer Technology | Single-Phase IGBT Inverter |
| Input Voltage | 120 V (Single Phase) |
| Output Current Range | 10 – 140 A |
| Duty Cycle | 20% @ 140 A |
| Open Circuit Voltage (OCV) | 53 VDC |
| Rated Input Capacity | 4.8 kVA |
| Power Factor & Efficiency | Compact Multi-Process Power Management |
| Wire Feed Speed Range | 1.5 – 12.7 m/min (60 – 500 ipm) |
| Protection Class | IP23S |
| Insulation Class | Class F |
| Cooling System | Fan-Cooled |
| Dimensions | 409 x 211 x 450 mm |
| Net Weight | 14.6 kg |
| Smart Features | TIG Torch and Foot Control Included, Digital Meters, Spool Gun Ready |
| Standard Compliance | CSA, CE, RoHS |
| Primary Application | Hobbyist, Light Maintenance, DIY Projects, Automotive Restoration |
