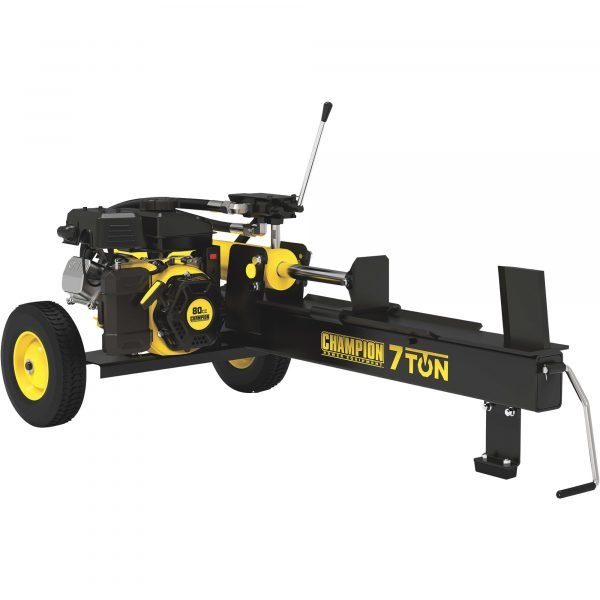

Champion 7-Ton Compact Log Splitter 79cc Engine
The Champion 7-Ton Compact Log Splitter is the perfect portable solution for light-duty firewood processing. Delivering 7 tons of force, this compact unit is powered by a fuel-efficient 79cc engine. Its small size and easy maneuverability make it ideal for quick jobs and tight storage spaces. The Champion 7-Ton Splitter is the efficient, space-saving choice for home users and small volume wood processing.
Description
This gas-powered Champion Log Splitter has 7 tons of ram force to offer the splitting power you need in a compact, portable design. The smart, low-profile construction makes it easier to load heavier logs, while an integrated log cradle keeps them in place. Features a powerful 4-stroke OHV engine and 2-stage pump teamed with a fast 20-second cycle time and dependable auto-return valve to deliver up to 180 cycles per hour. Designed to split logs up to 19in. long and weighing up to 50 lbs.
What’s Included
- (1) Log splitter
| Item# | 110676 |
| Brand | Champion Power Equipment |
| Manufacturer’s Warranty | 2 year commercial limited |
| Ship Weight | 157.0 lbs |
| Product Type | Horizontal splitter |
| Ram Force (Tons) | 7 |
| Max. Log Size L x W (in.) | 19.3 x 50 lbs. |
| Engine | 4-stroke OHV |
| Engine Displacement | 79 |
| Low Oil Shutdown | Yes |
| Wedge | Single, skewed |
| Cycle Time (sec.) | 20 |
| Automatic Cylinder Return | Yes |
| Pump | 2-stage |
| Oil Reservoir (gal.) | 0.4 |
| Fuel Capacity (gal.) | 0.3 |
| Log Cradle | Yes |
| Tire Size | 10 in |
| Lights Included | No |
| Fenders | No |
| Dimensions L x W x H (in.) | 53.1 x 23.6 x 18.1 |
| Product Weight | 148 lb |
Champion 7-Ton Compact Log Splitter 79cc Engine Technical Specifications
| Brand | Champion Power Equipment |
|---|---|
| Full Model Name/SKU | 7-Ton Compact Log Splitter (100430) |
| Country of Origin | China |
| Splitting Force | 7 Tons |
| Engine Specifications | 79cc Champion OHV |
| Cycle Time | 20 Seconds |
| Max Log Length | 48.3 cm (19 in) |
| Max Log Weight | 22.7 kg (50 lb) |
| Hydraulic Capacity | 4.9 Liters (1.3 Gallons) |
| Pump Type | Single-Stage |
| Cooling System | Air-Cooled |
| Dimensions | 1350 x 600 x 480 mm |
| Net Weight | 65 kg |
| Smart Features | Low Profile Design, Never-Flat Tires, Skewed Wedge for Efficient Splitting |
| Standard Compliance | EPA Compliant |
| Primary Application | Light Firewood, Home/Backyard Use, Small Estate Maintenance |
