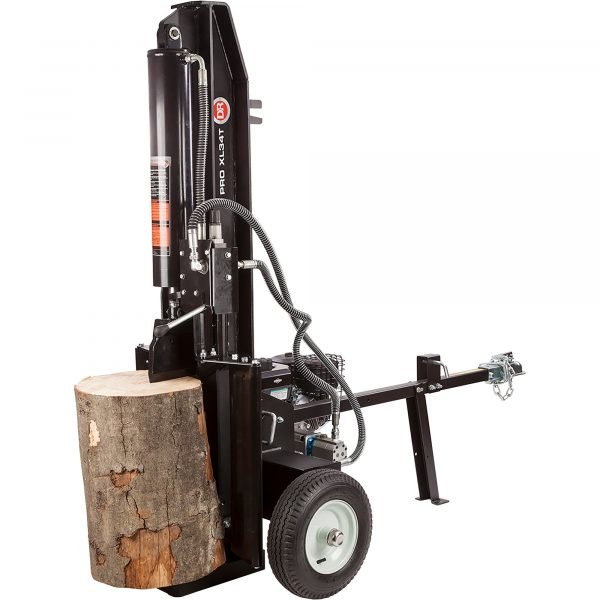

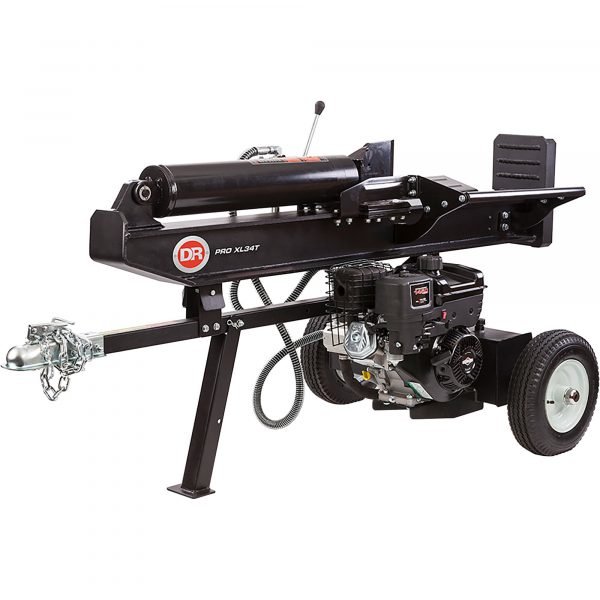

DR Power PRO XL 34-Ton H/V Log Splitter (WH25034DMN) 9.1 HP Engine
Experience superior power and durability with the DR Power PRO XL 34-Ton Log Splitter. This heavy-duty model delivers 34 tons of force, driven by a powerful 9.1 HP engine. The versatile design allows for easy switching between Horizontal and Vertical splitting, making it easy to handle massive logs. The DR Power PRO XL is the professional-grade machine for landowners seeking unmatched performance and reliability.
Description
This DR Power PRO XL 34-Ton Horizontal/Vertical Log Splitter is designed for a quick and easy transition between horizontal and vertical splitting configurations. An easy-starting DR 9.1 HP engine powers the 2-stage, 13.0 GPM pump, generating the splitting force you need. Splits logs up to 30in. diameter and up to 25in. long. A 16-second cycle time makes it an extra fast and efficient hydraulic splitter.
What’s Included
- (1) 34-ton horizontal/vertical log splitter
| Item# | 111077 |
| Brand | DR Power Equipment |
| Manufacturer’s Warranty | 2yr consumer/90 day commercial |
| Ship Weight | 549.0 lbs |
| Product Type | Horizontal/vertical splitter |
| Ram Force (Tons) | 34 |
| Max. Log Size L x W (in.) | 25 x 30 |
| Continuous Force (Tons) | 34 |
| Engine | DR |
| Motor | DR |
| Horsepower | 9.1 |
| Engine Displacement | 200 cc |
| Gross Torque | 15 |
| Low Oil Shutdown | Yes |
| Wedge | 7.94 in |
| Cycle Time (sec.) | 16 |
| Cylinder | 5 in bore, 23.65 in stroke |
| Pump | 2-stage, 13.0 GPM |
| Max. PSI | 3,500 |
| Oil Reservoir (gal.) | 5 |
| Fuel Capacity (gal.) | 1.6 |
| Log Cradle | Yes |
| Log Lift | No |
| Jack Stand | Yes |
| Ball Coupler (in.) | 2 |
| Tire Size | 16 in |
| Pre-assembled | Some assembly required |
| Dimensions L x W x H (in.) | 83.6 x 40.6 x 35.4 in |
| Product Weight | 549 lb |
DR Power PRO XL 34-Ton H/V Log Splitter (WH25034DMN) 9.1 HP Engine Technical Specifications
| Brand | DR Power Equipment |
|---|---|
| Full Model Name/SKU | PRO XL 34-Ton H/V Log Splitter (WH25034DMN) |
| Country of Origin | USA |
| Splitting Force | 34 Tons |
| Engine Specifications | DR PRO-Series 9.1 HP (306cc) OHV |
| Cycle Time | 16 Seconds |
| Max Log Length | 63.5 cm (25 in) |
| Max Log Diameter | 76.2 cm (30 in) |
| Hydraulic Capacity | 24.6 Liters (6.5 Gallons) |
| Pump Type | Two-Stage 17 GPM |
| Cooling System | Air-Cooled |
| Dimensions | 2250 x 1250 x 1200 mm |
| Net Weight | 268 kg |
| Smart Features | XL Force Capacity, Road-Towable Frame, Vertical Mode for Large Rounds |
| Standard Compliance | EPA Compliant |
| Primary Application | Commercial Logging, Heavy Duty Farm Use, Professional Wood Services |
