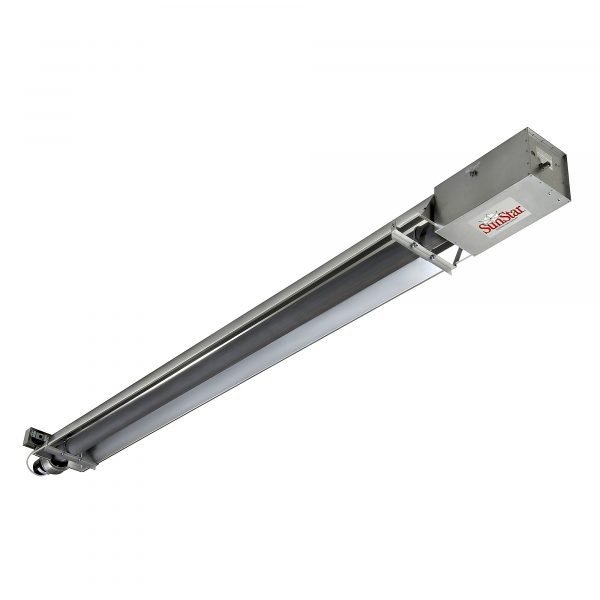

SunStar SIS50-30-TG-L5 Tough Guy Straight Vacuum Infrared Tube Heater 50K BTU
The SunStar SIS50-30-TG-L5 Tough Guy Straight Vacuum Infrared Tube Heater provides 50,000 BTU along a 30-foot straight tube length, engineered for durable, linear radiant coverage in narrow commercial spaces. This Tough Guy model utilizes a vacuum (negative pressure) system, which guarantees maximum heat transfer efficiency and enhances safety by preventing flue gas leaks. Ideal for long service aisles, the straight configuration ensures uniform heat distribution over a specific path. The SunStar SIS50-30-TG-L5 Tough heater offers a resilient, efficient, and safe heating solution, minimizing energy waste while maximizing comfort in industrial settings.
Description
Offers fuel savings up to 50%. Tough Guy Straight Tube heaters ideal for complete building heating and can be installed in high humidity or corrosive environments. The emitter tubes are made of heat treated aluminized steel. Vacuum system pulls products of combustion through combustion chamber for increased radiant efficiency and greater safety. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 50ft. of ducting in fresh air and 75ft. sidewall venting capability. Vacuum system features a totally enclosed combustion chamber. Heavy duty draft inducer assembly features permanently lubricated totally enclosed ball bearing motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA. Installation and service must be performed by a licensed contractor and must conform to local codes and SunStar’s Installation Instructions. Read the Installation and Operating Instructions for specific Installation requirements prior to purchase. To help pick out the heater that’s right for you, view the Heat Loss Estimating Chart for proper model and heater selection.
What’s Included
- (1) Burner Package: Main Burner and hardware Emitter Tubes and Reflectors
| Item# | 4745392 |
| Brand | SunStar |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 162.0 lbs |
| Fuel Type | Propane |
| Heat Output | 50,000 Btu/hour |
| Heat Type | Infrared |
| Heating Capability | 500 ft² |
| Blower Included | Yes |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 360 in |
| Thermostat Included | No |
| Volts | 120 |
| Amps | 3 |
| Product Weight | 129.6000 lb |
| Dimensions L x W x H (in.) | 360.0 x 13.0 x 8.0 in |
SunStar SIS50-30-TG-L5 Tough Guy Straight Tube Heater Specs
| Brand | SunStar |
|---|---|
| Heat Output | 50,000 BTU/hr |
| Heating Capability | 500 sq. ft. |
| Fuel Type | Propane |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 360 in |
| Vacuum Pull Technology | Yes |
| Direct Spark Ignition | Yes |
| Totally Enclosed Chamber | Yes |
| Highly Efficient Aluminum Reflectors | Yes |
| Made in the USA | Yes |
| What's Included | (1) Burner Package: Main Burner, Hardware, Emitter Tubes, Reflectors |
| Product Weight | 129.6 lb |
| Ship Weight | 162.0 lbs |
