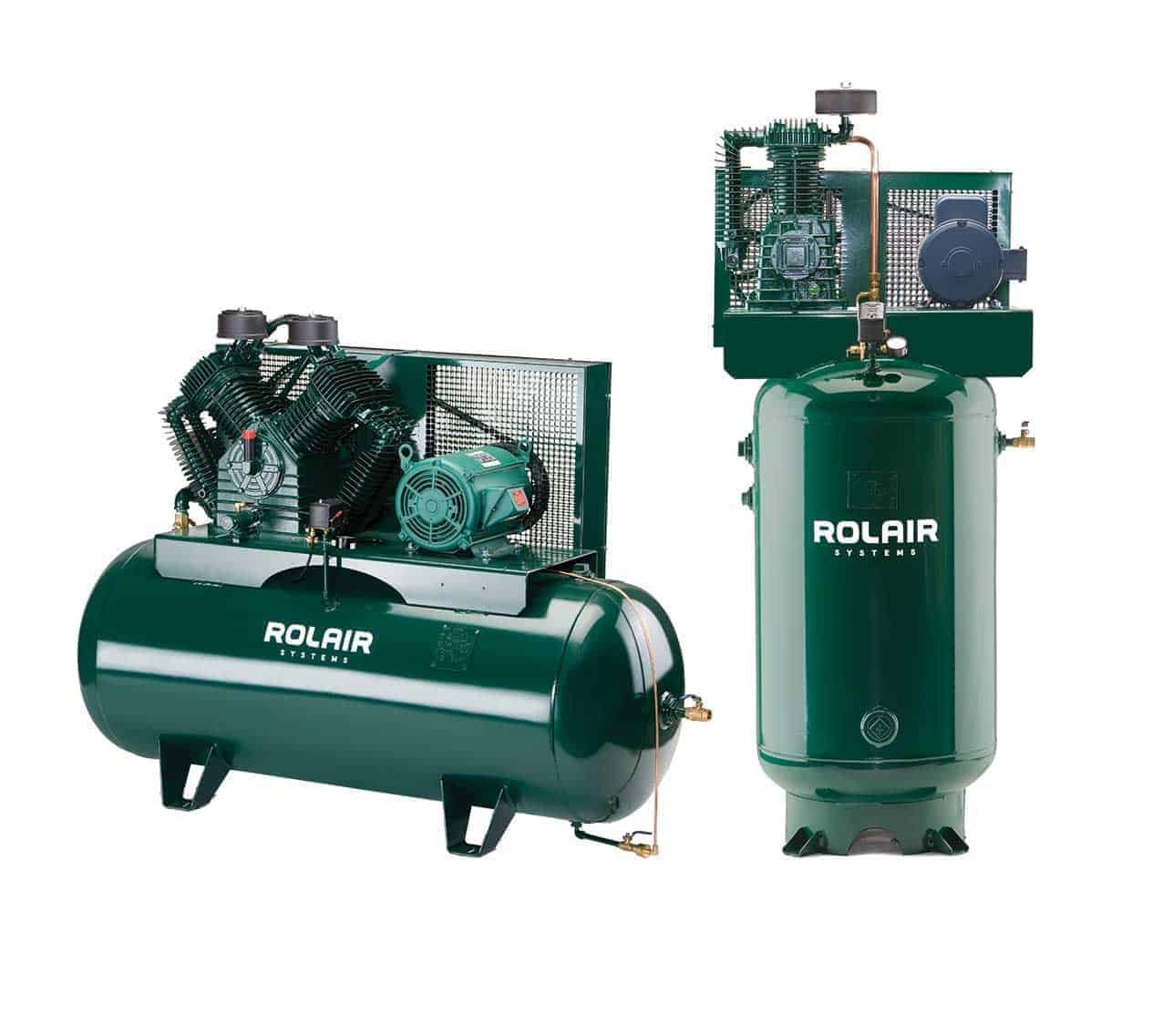

Rolair H10160K60 Air Compressor – 10HP 60Gal
High Volume Airflow: Delivers 34 CFM @175PSI.
Horizontal Storage Configuration: Offers stable heavy-duty mounting.
Rugged Iron Pump: Ensures maximum mechanical reliability.
Three Phase Source: Operates on 230V.
Manufacturing Facility Use: Drives high-demand machinery.
Description
Rolair H10160K60 10HP 60 Gallon Horizontal Compressor
The Rolair H10160K60 is a high-output two-stage industrial compressor engineered for stationary shop applications where a compact horizontal footprint is required without compromising on power. Featuring a 10HP motor and the rugged K60 pump, this unit delivers an impressive 34.4 CFM at 175 PSI, providing sufficient pneumatic volume for heavy-duty impact tools and industrial maintenance machinery.
Operational durability is secured via a 100% cast-iron pump with an aluminum head for rapid heat dissipation and Swedish lamellar reed valves for maximum efficiency. Utilizing industrial reciprocating air compressors from Rolair’s H-series ensures a stable air supply, while the 60-gallon ASME tank acts as a dedicated pressure buffer for consistent performance during intensive work cycles.
Rolair H10160K60 Key Features
- Tank Size: 60 Gallon Horizontal
- Lubrication: Splash Lubrication System
- Starting System: Loadless Auto-Start
- Fuel System: 230V Single Phase
- Max Pressure: 175 PSI Rating
- Air Displacement: 34.4 CFM Delivery
- Warranty: 1 Year Unit
Compact High Pressure Build
The unit features a low-profile horizontal design that is ideal for installation under workbenches or in tight equipment rooms. It includes a totally enclosed steel belt guard, a heavy-duty brass shut-off valve, and a 0-300 PSI pressure gauge for precise system monitoring. The K60 pump’s four-cylinder design provides superior balance and reduced vibration during continuous duty operations.
Automotive and Workshop Utility
Ideally suited for commercial automotive bays and independent repair shops, this model provides industrial-grade pressure in a single-phase electrical configuration. The automatic unloading device ensures smooth starts, protecting the motor from electrical surges. Technicians value the H10160K60 for its fast recovery times and the reliable American-made quality of the Rolair brand.
Deploy the Rolair H10160K60 to secure a dependable and compact 10HP air source for your professional workshop needs. Contact our technical team to Request Technical Quote or Check Availability at Muldepot.com.
Rolair H10160K60 Air Compressor Specs
| Brand | Rolair |
| Full Model Code | H10160K60 |
| Country of Origin | USA |
| Compressor Type | Reciprocating Piston (Two-Stage) |
| Lubrication Style | Splash Lubricated |
| Cooling System | Air Cooled |
| Motor Power | 10 HP |
| Max Working Pressure | 175 Psi |
| Free Air Delivery / Capacity | 34.0 CFM @ 175 Psi |
| Drive Type | Belt Drive (Electric) |
| Noise Level | 84-88 dB(A) |
| Outlet Connection Size | 1 Inch NPT |
| Tank Volume | 60 Gallons (Horizontal) |
| Dimension (LxWxH) | 1168 x 610 x 1067 mm |
| Net Weight | 255 kg |
| Control Panel Type | Magnetic Starter Included |
| Voltage/Phase/Frequency | 460V / 3 Phase / 60 Hz |
| Standard Warranty | 1 Year Limited |
| Maintenance Interval | 500 Hours |
| Application | Primary air supply for industrial manufacturing facilities requiring high-pressure 460V electrical efficiency. |
