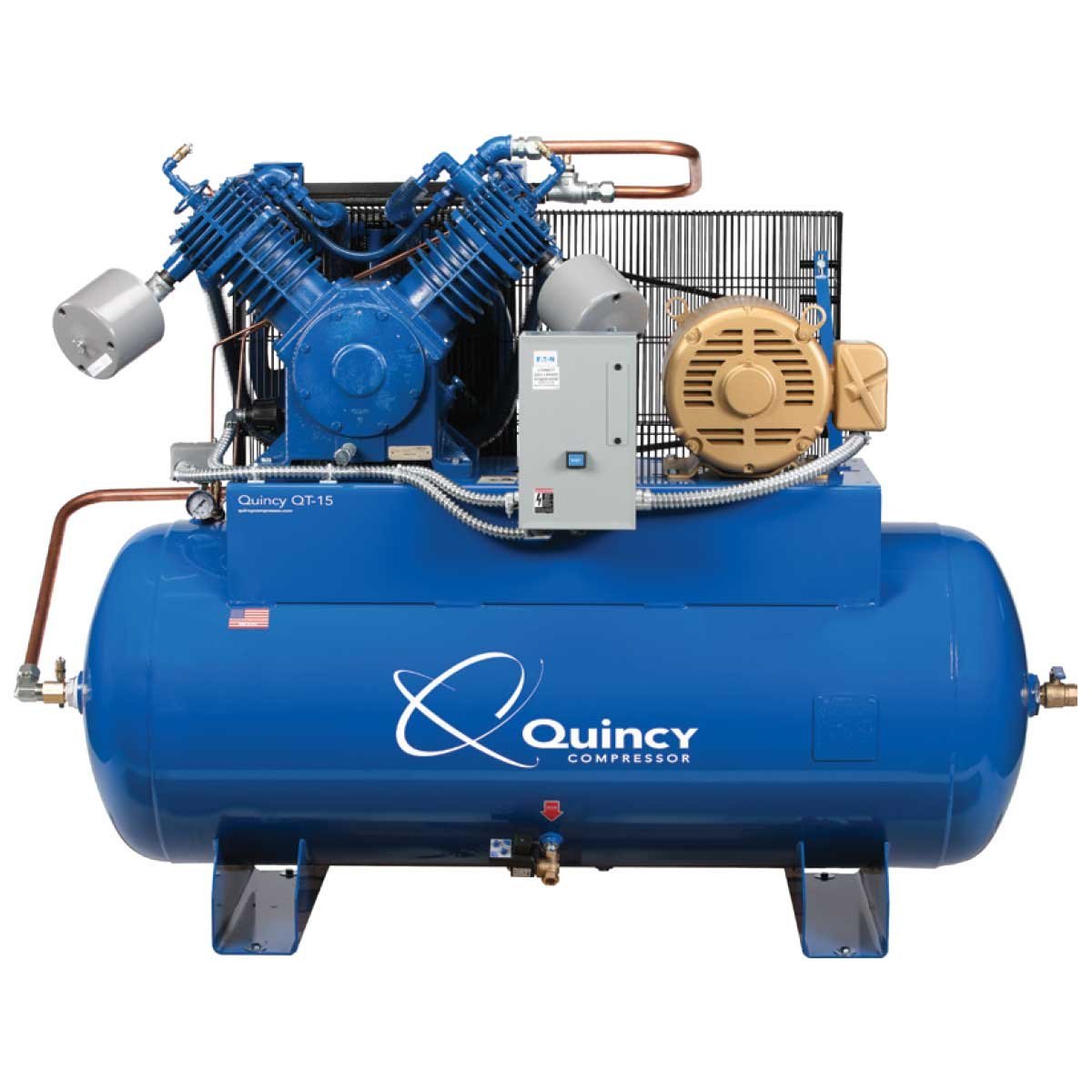

Quincy 2153DS12HCA46 Air Compressor – 15HP 120Gal
In Stock
Quincy 2153DS12HCA46 Air Compressor – 15HP 120Gal This industrial-scale 15 HP duplex system features a massive 120-gallon horizontal configuration built to ensure high-voltage energy efficiency and redundant air supply for manufacturing infrastructures.
Redundant Motor Design: Dual 7.5 HP motor units
Massive Storage Capacity: Industrial 120 gallon horizontal tank
High Voltage Phase: Requires 460V three phase power
Maximum Rated Pressure: Reaches maximum 175 PSI operation
Extended Service Life: Includes pressure lubricated QP pumps
Description
Quincy 2153DS12HCA46 15HP 120 Gallon QR-25
The Quincy 2153DS12HCA46 is a flagship industrial reciprocating compressor from the legendary QR-25 series, engineered for the most demanding 24/7 continuous duty applications. Driven by a massive 15HP 460V motor, this unit delivers an elite 51.0 CFM at 175 PSI. Choosing high-performance air tools and compressors like the QR-25 ensures the lowest total cost of ownership due to its heavy-duty rebuildable design.
Quincy 15HP Key Features
- Tank Size: 120 Gallon Horizontal
- Lubrication: Full Pressure Lubricated
- Starting System: Magnetic Starter Included
- Fuel System: 460V Three Phase
- Max Pressure: 175 PSI Rating
- Air Displacement: 51.0 CFM Delivery
- Warranty: 1 Year Unit
Quincy 2153DS12HCA46 Air Compressor Specs
| Brand | Quincy |
| Full Model Code | 2153DS12HCA46 (QP Series) |
| Country of Origin | USA |
| Compressor Type | Reciprocating Piston (Two-Stage) |
| Lubrication Style | Pressure Lubricated |
| Cooling System | Air Cooled |
| Motor Power | 15 HP |
| Max Working Pressure | 175 Psi |
| Free Air Delivery / Capacity | 51.3 CFM @ 175 Psi |
| Drive Type | Belt Drive (Electric) |
| Noise Level | 80-84 dB(A) |
| Outlet Connection Size | 1 Inch NPT |
| Tank Volume | 120 Gallons (Horizontal) |
| Dimension (LxWxH) | 1981 x 762 x 1219 mm |
| Net Weight | 495 kg |
| Control Panel Type | Magnetic Starter Mounted / Pressure Lube Monitor |
| Voltage/Phase/Frequency | 460V / 3 Phase / 60 Hz |
| Standard Warranty | 1 Year (Extended to 3Y with Kit) |
| Maintenance Interval | 1000 Hours (Synthetics) |
| Application | Elite industrial air supply requiring pressurized pump reliability and 460V electrical efficiency for massive continuous output. |
