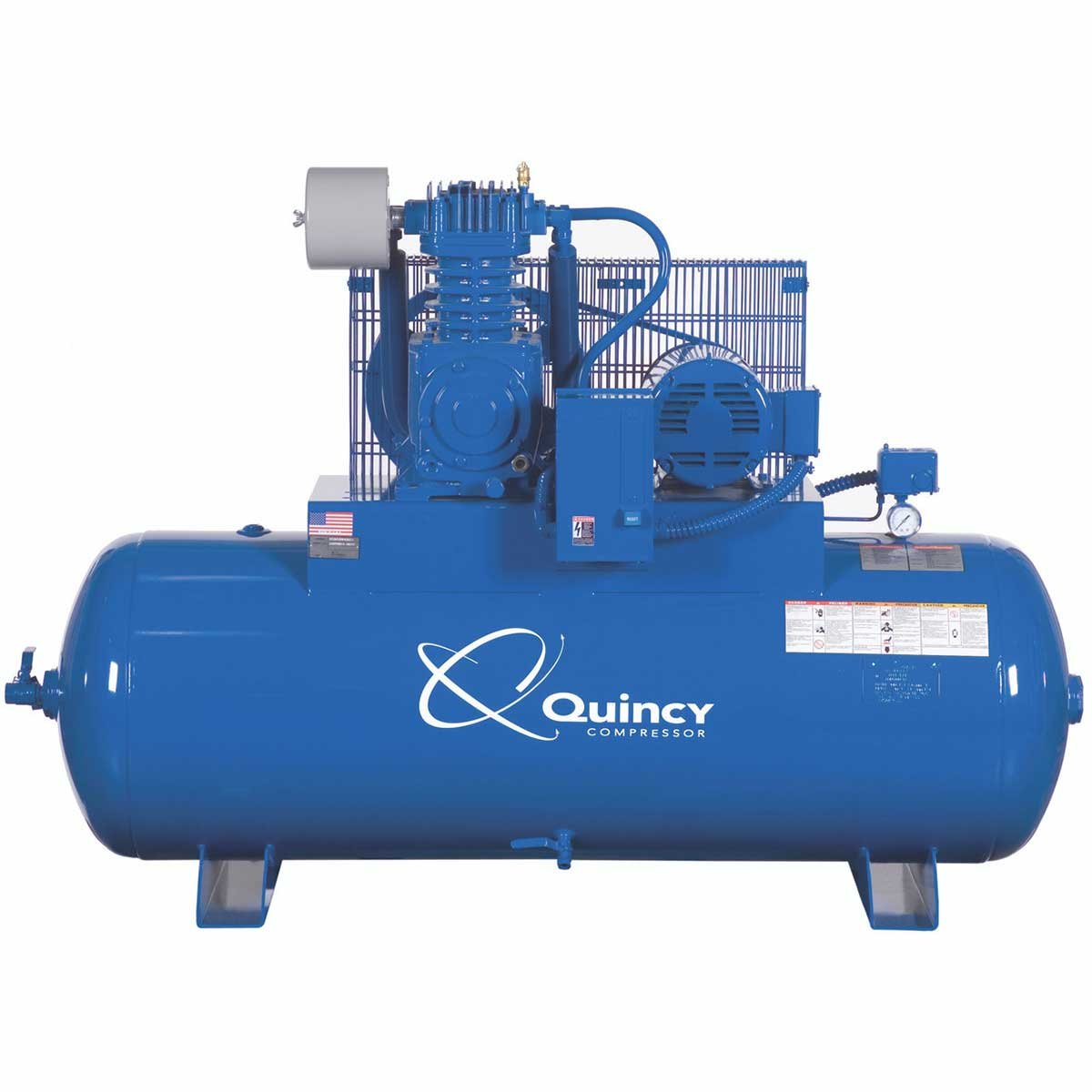

Quincy 251CS80HCB23 Air Compressor – 5HP 80Gal
Reliable Motor Output: Steady 5.0 HP motor performance
High Capacity Receiver: Features 80 gallon horizontal tank
Standard Three Phase: Requires 230V three phase power
Maximum Working Pressure: Stable 175 PSI delivery output
Rugged Material Build: Durable cast iron pump components
Description
Quincy 251CS80HCB23 | 17.2 CFM at 175 PSI Industrial Delivery Analysis
The Quincy 251CS80HCB23 from the QT-5 Series is a heavy-duty two-stage reciprocating compressor engineered for professional workshops requiring high-pressure performance on single-phase power. Delivering 17.2 CFM at 175 PSI, this USA-made unit ensures superior volumetric efficiency for localized manufacturing and automotive stations, providing steady SCFM for high-demand pneumatic tools while utilizing a massive 80-gallon horizontal air reservoir.
Built with a splash-lubricated pump design, this model is engineered for long-term thermal stability during intensive 230V operation cycles. Because this configuration lacks an integrated automatic drain and low oil shutdown sensor, technical operators must prioritize daily moisture evacuation and lubricant audits every 1,000 hours to maintain optimal pump longevity and protect the air-end components from friction-related wear.
Key Features of Quincy 251CS80HCB23
- Robust 5HP motor produces steady 17.2 CFM at 175 PSI.
- Two-stage reciprocating pump enables high-pressure industrial tool applications.
- Large 80-gallon horizontal tank maximizes compressed air storage capacity.
- Splash lubrication system supports a heavy-duty professional duty cycle.
- Single-phase 230V configuration fits standard professional shop power.
- Magnetic starter comes pre-mounted for enhanced motor circuit protection.
- Solid construction ensures superior heat dissipation during intensive use.
- Standard 1/2 inch NPT outlet serves various industrial tool manifolds.
- Belt drive system optimizes power transfer for consistent airflow.
- USA-made quality ensures long-term reliability in demanding shop environments.
Stationary Shop Power Usage
Perfect for automotive repair, medium garages, and localized industrial maintenance. The 251CS80HCB23 is backed by a 1 Year warranty. Explore our two-stage air compressors to find the ideal air volume and tank configuration for your professional facility requirements.
Quincy 251CS80HCB23 Air Compressor Specs
| Brand | Quincy |
| Full Model Code | 251CS80HCB23 (QT-5 Series) |
| Country of Origin | USA |
| Compressor Type | Reciprocating Piston (Two-Stage) |
| Lubrication Style | Splash Lubricated |
| Cooling System | Air Cooled |
| Motor Power | 5 HP |
| Max Working Pressure | 175 Psi |
| Free Air Delivery / Capacity | 17.2 CFM @ 175 Psi |
| Drive Type | Belt Drive (Electric) |
| Noise Level | 76-80 dB(A) |
| Outlet Connection Size | 1/2 Inch NPT |
| Tank Volume | 80 Gallons (Horizontal) |
| Dimension (LxWxH) | 1372 x 559 x 1041 mm |
| Net Weight | 230 kg |
| Control Panel Type | Magnetic Starter Mounted |
| Voltage/Phase/Frequency | 230V / 1 Phase / 60 Hz |
| Standard Warranty | 1 Year (Extended to 3Y with Kit) |
| Maintenance Interval | 1000 Hours (Synthetics) |
| Application | Professional workshops and medium garages requiring a heavy-duty two-stage pump on single-phase power. |
