Mark Aluminair Air Compressor – 5HP Simplex
High Torque Motor: Delivers reliable 5.0 HP output
Aluminum Simplex Design: Features optimized cooling fins for temperature control
Professional Power Source: Requires 230V single-phase electrical connection
Maximum Sustained Pressure: Maintains stable 135 PSI delivery
Rugged Shop Utility: Powers continuous pneumatic tool operations in facilities
Description

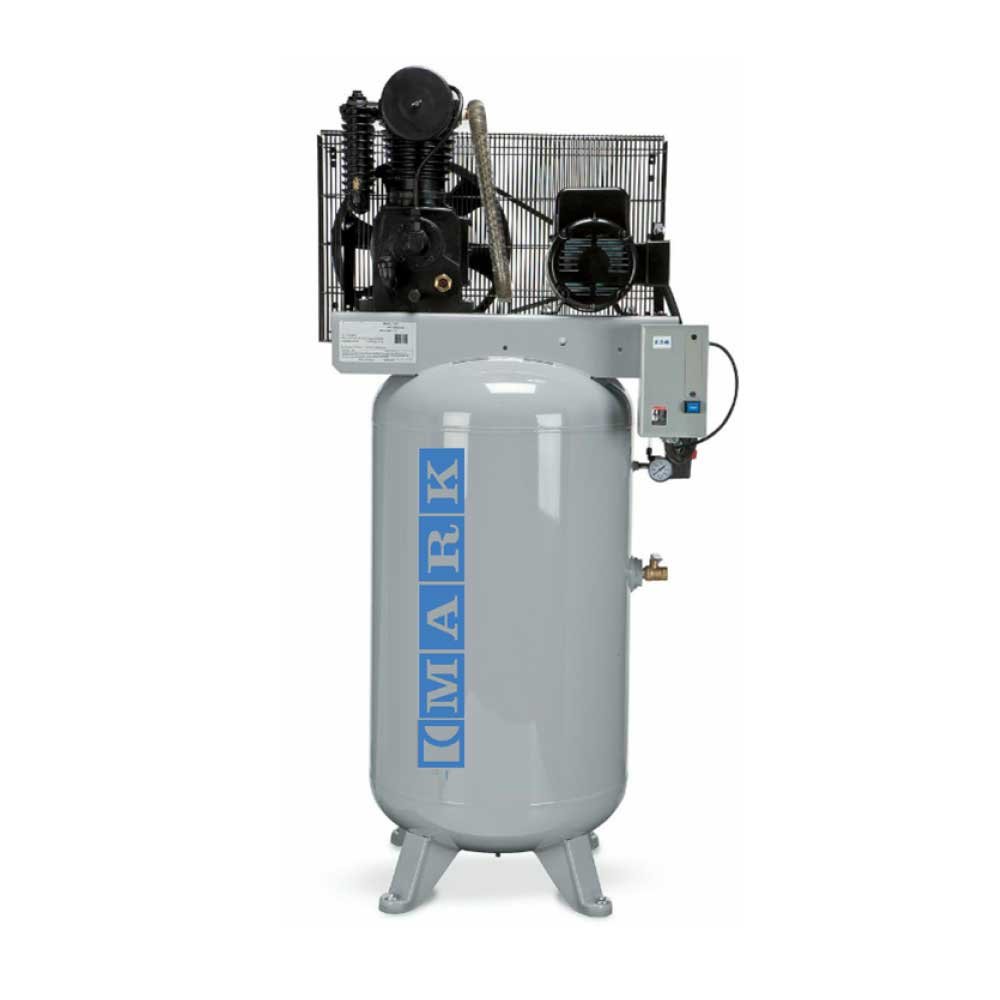

Mark Aluminair 5HP Simplex Air Compressor
The Mark Aluminair 5HP Simplex is an efficient single-stage reciprocating compressor designed for industrial applications that prioritize airflow volume over extreme pressure. This 80-gallon vertical unit is engineered to provide a steady 18.0 CFM for tools and machinery requiring consistent air volume. It offers a versatile solution for operations that integrate air compression into moderate-pressure technical frameworks.
The unit features a high-performance intake filter with a silencer to reduce decibel levels in confined indoor workspace environments. Selecting industrial reciprocating air compressors from the Aluminair series ensures a high volumetric efficiency ratio, which translates to lower energy consumption and reduced mechanical fatigue on the internal motor-drive components during daily operation.
Mark Aluminair 5HP Features
- Tank Size: 80 Gallon Vertical
- Lubrication: Synthetic Oil Splash
- Starting System: Automatic Pressure Switch
- Fuel System: 230V Single Phase
- Max Pressure: 135 PSI Rating
- Air Displacement: 18.0 CFM Delivery
- Warranty: 1 Year Warranty
Precision Machined Internal Components
The internal valves are constructed from stainless steel for maximum corrosion resistance and consistent sealing capabilities throughout the pump’s life. Precision-machined pistons and rings ensure minimal blow-by, maintaining high compression ratios and reducing oil carryover into the air stream. These high-grade components are housed within a vibration-resistant cast iron cylinder frame for enhanced durability.
Facility Maintenance and Small Ops
This model is frequently utilized as a primary air source for small manufacturing cells, facility maintenance shops, and agricultural repair bays. Its reliable single-stage design is simple to maintain and highly effective for continuous operation in moderate-pressure environments. The vertical 80-gallon tank provides a significant air reserve, allowing for multiple simultaneous tool uses without significant pressure drops.
Trust the Mark Aluminair 5HP Simplex to provide steady and efficient air delivery for your specialized industrial machinery needs. Contact our technical team to Request Technical Quote or Check Availability at Muldepot.com.
Mark Aluminair Air Compressor 5HP Specs
| Brand | Mark Aluminair |
| Full Model Code | 5HP Simplex |
| Country of Origin | USA |
| Compressor Type | Reciprocating Piston (Single-Stage) |
| Lubrication Style | Splash Lubricated |
| Cooling System | Air Cooled (High Thermal Conductivity Aluminum) |
| Motor Power | 5 HP |
| Max Working Pressure | 125 Psi |
| Free Air Delivery / Capacity | 16.0 CFM @ 90 Psi |
| Drive Type | Belt Drive (Electric) |
| Noise Level | 74-78 dB(A) |
| Outlet Connection Size | 1/2 Inch NPT |
| Tank Volume | 60 - 80 Gallons (Typical) |
| Dimension (LxWxH) | 1168 x 559 x 889 mm |
| Net Weight | 95 kg |
| Control Panel Type | Pressure Switch Controlled |
| Voltage/Phase/Frequency | 230V / 1 Phase / 60 Hz |
| Standard Warranty | 1 Year Limited |
| Maintenance Interval | 500 Hours |
| Application | Medium industrial fabrication and environments where weight-to-power ratio and corrosion resistance are prioritized. |
