Mark Ironair Air Compressor – 5HP Simplex
Professional HP Rating: Supplies steady 5.0 HP performance
Cast Iron Simplex: Features durable heavy-duty pump construction
Standard Utility Voltage: Requires 230V single-phase electrical power supply
Maximum Rated Pressure: Reaches maximum 175 PSI operation
Extended Operational Life: Includes oil-lubricated reciprocating pump design
Description

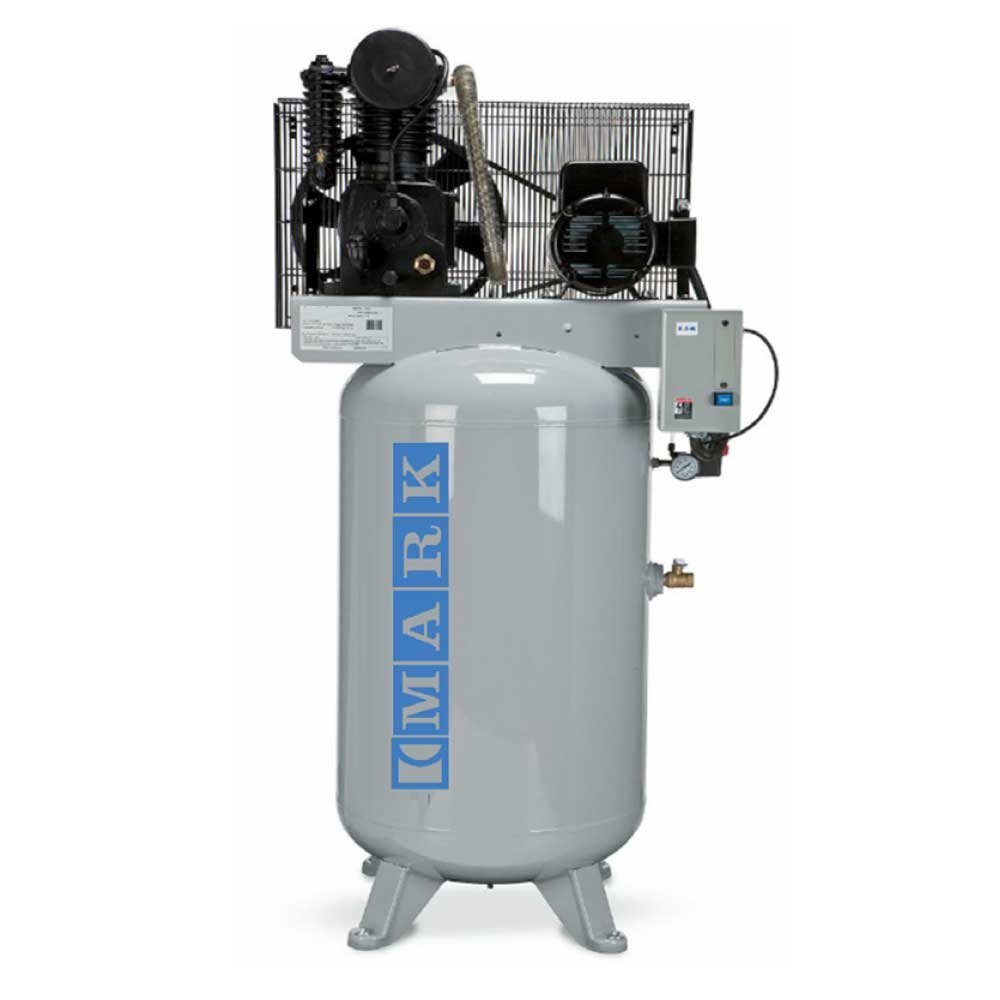

Mark Ironair 5HP Simplex Industrial Compressor
The Mark Ironair 5HP Simplex is a heavy-duty reciprocating compressor engineered for consistent performance in demanding industrial environments. Featuring a 100% cast iron pump, this 80-gallon vertical system is designed to handle high-pressure tasks up to 175 PSI, providing the thermal stability required for continuous operation in automotive shops, small manufacturing plants, and facility maintenance departments.
Operational longevity is secured via a low-RPM pump design that reduces mechanical friction and internal heat buildup. Utilizing industrial reciprocating air compressors from the Ironair series ensures superior air delivery through concentric disc valves, which provide maximum airflow and simplified maintenance access for professional technicians and facility managers.
Mark Ironair 5HP Key Features
- Tank Size: 80 Gallon Vertical
- Lubrication: Splash Lubricated Pump
- Starting System: Magnetic Motor Starter
- Fuel System: 230V Single Phase
- Max Pressure: 175 PSI Rating
- Air Displacement: 16.0 CFM Delivery
- Warranty: 1 Year Limited
Solid Cast Iron Construction
The unit features a robust cast iron cylinder and crankcase to ensure maximum structural integrity under heavy pneumatic loads. This material selection provides excellent vibration dampening and facilitates rapid heat dissipation from the pump assembly. Precision-honed cylinders and a balanced flywheel contribute to the unit’s quiet operation and long-term mechanical reliability in dusty workshop settings.
Industrial Workshop Utility Applications
Ideally suited for impact tool operation, pneumatic lifting, and general shop air, this model offers a high-capacity air reserve. The 80-gallon ASME certified tank minimizes motor cycling, while the pre-wired magnetic starter provides essential thermal overload protection. Industrial users value the Ironair 5HP for its “reliability of iron” and its ability to maintain stable pressure during peak demand.
Deploy the Mark Ironair 5HP Simplex to secure a dependable and high-pressure air source for your critical facility operations. Contact our technical team to Request Technical Quote or Check Availability at Muldepot.com.
Mark Ironair Air Compressor 5HP Specs
| Brand | Mark Ironair |
| Full Model Code | 5HP Simplex Cast Iron |
| Country of Origin | USA |
| Compressor Type | Reciprocating Piston (Two-Stage) |
| Lubrication Style | Splash Lubricated |
| Cooling System | Air Cooled |
| Motor Power | 5 HP |
| Max Working Pressure | 175 Psi |
| Free Air Delivery / Capacity | 17.5 CFM @ 175 Psi |
| Drive Type | Belt Drive (Electric) |
| Noise Level | 76-79 dB(A) |
| Outlet Connection Size | 1/2 Inch NPT |
| Tank Volume | 80 Gallons (Horizontal) |
| Dimension (LxWxH) | 1372 x 559 x 1041 mm |
| Net Weight | 245 kg |
| Control Panel Type | Pressure Switch Controlled |
| Voltage/Phase/Frequency | 230V / 1 Phase / 60 Hz |
| Standard Warranty | 1 Year Limited |
| Maintenance Interval | 500 Hours |
| Application | Heavy-duty automotive service and industrial workshops requiring durable cast iron pump longevity. |
