Mark Ironair Air Compressor – 10HP Duplex
Redundant Motor Design: Supplies powerful 10.0 HP total performance
Ironair Duplex Setup: Features dual cast iron reciprocating pump units
Industrial Power Source: Requires three-phase electrical connection for plant use
Maximum Rated Pressure: Maintains consistent 175 PSI delivery
Rugged Facility Utility: Supports continuous heavy-duty industrial production cycles
Description

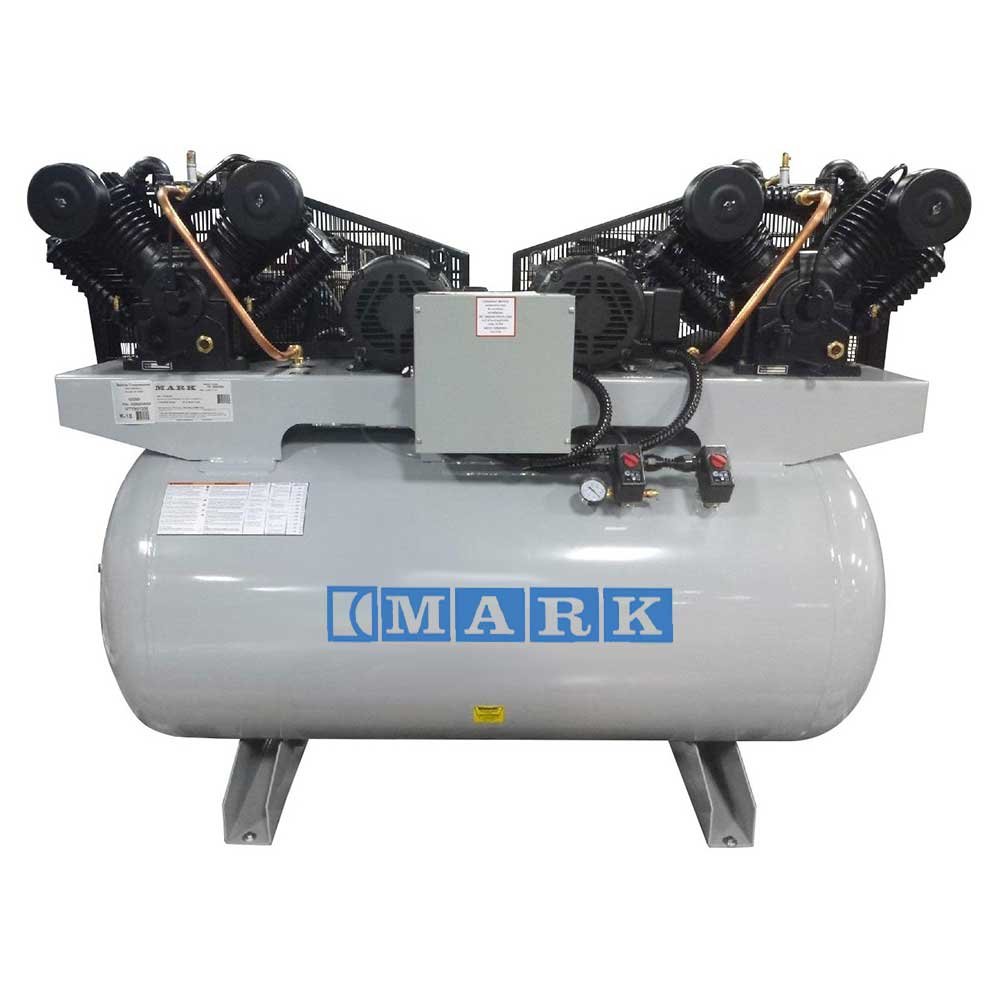

Mark Ironair 10HP Duplex Industrial Compressor
The Mark Ironair 10HP Duplex offers professional-grade redundancy and efficiency for smaller workshops and industrial applications. By pairing two 5HP pumps on a single 120-gallon horizontal tank, this system provides 34 CFM at 175 PSI while ensuring your air supply is never fully interrupted. It is the perfect upgrade for growing shops that have outgrown simplex units but require the reliability of a dual-motor system.
Each pump is constructed from solid cast iron to ensure maximum thermal stability and long-term mechanical integrity. Selecting industrial reciprocating air compressors from the Ironair series guarantees a quiet, low-vibration operation thanks to the dynamically balanced flywheel and precision-machined internal components that promote a longer service life than lightweight aluminum alternatives.
Mark Ironair 10HP Key Features
- Tank Size: 120 Gallon Horizontal
- Lubrication: Splash Lubricated Pump
- Starting System: Automatic Alternating Control
- Fuel System: 230/460V Three Phase
- Max Pressure: 175 PSI Rating
- Air Displacement: 34 CFM Delivery
- Warranty: 1 Year Limited
Engineered for Longevity
This 10HP Duplex system features UL-approved components and high-efficiency motors designed for continuous duty. The inclusion of a finned aftercooler ensures that discharge temperatures remain low, protecting your downstream air tools and piping from excessive heat. The unit is designed for easy serviceability, with accessible oil drains and intake filters that can be changed without specialized tools or equipment.
Small Factory and Workshop Utility
Specifically designed for automotive repair, woodworking shops, and small manufacturing facilities, this model provides a versatile and reliable air source. Its dual-pump design allows for low-amp starting while providing the high-volume air storage needed for intermittent high-flow tasks like impact wrenching or painting. Facility owners value the 10HP Duplex for its compact footprint and legendary Ironair reliability.
Invest in the Mark Ironair 10HP Duplex to ensure consistent, redundant air delivery for your professional workshop needs. Contact our technical team to Request Technical Quote or Check Availability at Muldepot.com.
Mark Ironair Air Compressor 10HP Specs
| Brand | Mark Ironair |
| Full Model Code | 10HP Duplex Cast Iron |
| Country of Origin | USA |
| Compressor Type | Reciprocating Piston (Two-Stage / Duplex) |
| Lubrication Style | Splash Lubricated |
| Cooling System | Air Cooled |
| Motor Power | 5 HP (Per Pump / 10 HP Total) |
| Max Working Pressure | 175 Psi |
| Free Air Delivery / Capacity | 35.0 CFM @ 175 Psi (Combined) |
| Drive Type | Belt Drive (Dual Electric Motors) |
| Noise Level | 80-84 dB(A) |
| Outlet Connection Size | 3/4 Inch NPT |
| Tank Volume | 120 Gallons (Horizontal) |
| Dimension (LxWxH) | 1829 x 711 x 1219 mm |
| Net Weight | 485 kg |
| Control Panel Type | Alternating Duplex Control Panel |
| Voltage/Phase/Frequency | 230-460V / 3 Phase / 60 Hz |
| Standard Warranty | 1 Year Limited |
| Maintenance Interval | 1000 Hours (Synthetics) |
| Application | Industrial facilities requiring built-in redundancy and high CFM for continuous production cycles. |
