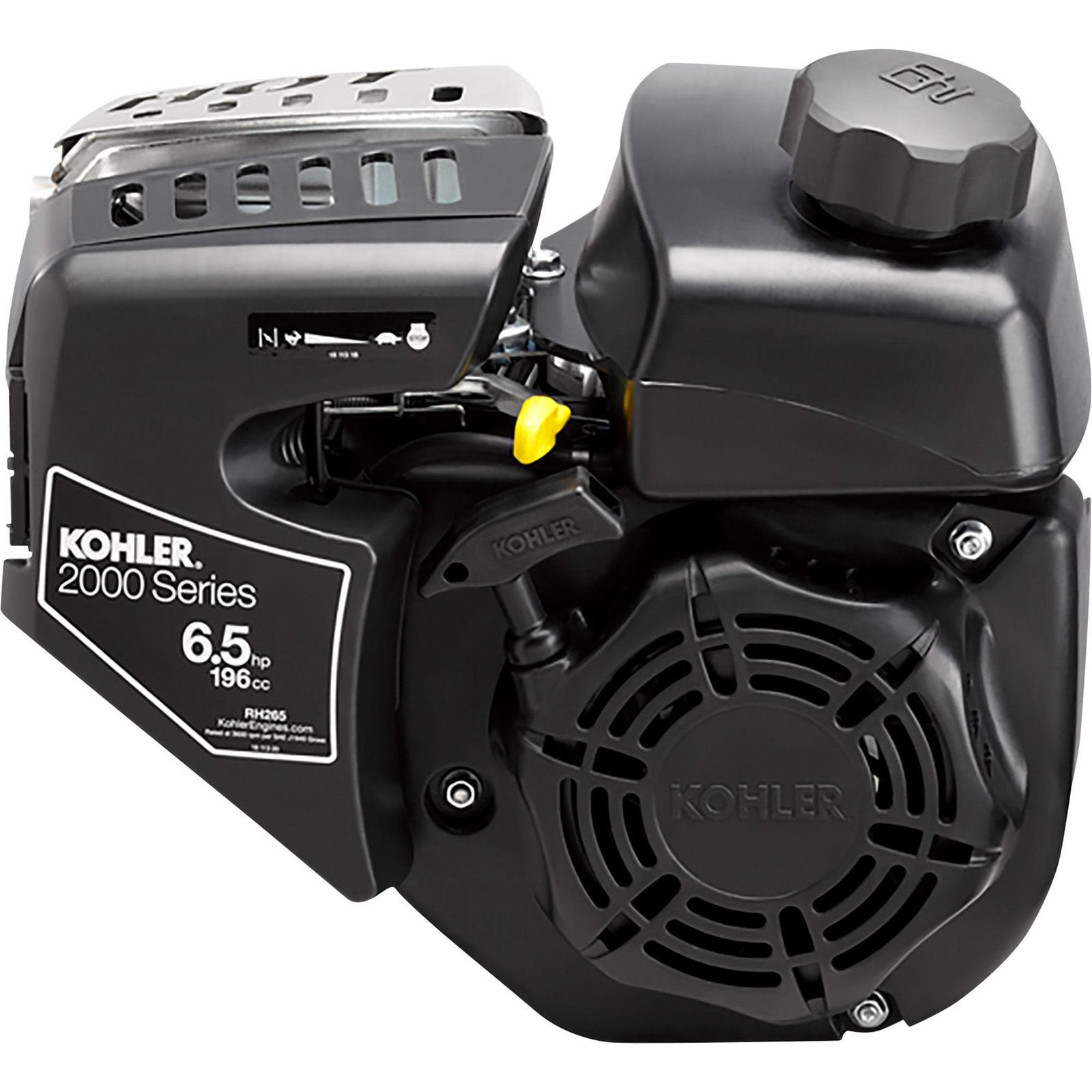

Kohler RH265 2000 Series – 196cc 6.5HP Horizontal Engine
In Stock
$191.00
In Stock
Simplify commercial property maintenance with the Kohler RH265 2000 Series Engine featuring a 196cc design and high-torque output for reliable power in mid-range mechanical tasks.
- Engine: High-performance 196cc single-cylinder horizontal engine
- Output: 6.5HP at 3600 RPM optimized for consistent load handling
- Design: Overhead Valve (OHV) configuration for increased fuel efficiency
- Maintenance: Large fuel tank and accessible oil fill for easy servicing
- Kohler Support: Two year limited commercial warranty
Description
Professional Coffee Equipment
Kohler 2000 Series OHV Horizontal Engine 196cc 3 4in x 2 42in Shaft Model PARH2653103
| Brand | Kohler Engines |
| Manufacturer's Warranty | 2 Year |
| Ship Weight | 33.0 lbs |
| Engine Displacement | 196 cc |
| Engine Type | 2000 Series OHV |
| Start Type | Recoil |
| Shaft Diameter | 3/4 in |
| Shaft Length | 2.42 in |
| Shaft Output | Counterclockwise |
| Shaft Keyway | 0.18 in |
| Shaft End Tapped (Diameter (in.)/Threads per inch) | 5/16-24 UNF 2B |
| Shaft Rotation (From PTO Shaft Side) | Counterclockwise |
| Crankshaft | Hardened |
| PTO Height | 4.17 in |
| Bearing Type | Parent material |
| Cylinders (qty.) | 1 |
| Compression Ratio | 8.5:1 |
| Cooling System | Air cooled |
| Air Cleaner Type | Foam element |
| Fuel Tank | Yes |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 2.21 qt |
| Fuel Filter | Yes |
| Oil Capacity | 0.63 qt |
| Low Oil Alert | Yes |
| Low Oil Shutdown | Yes |
| Lubrication System | Splash |
| Ignition System | Electronic |
| Governor System | Mechanical |
| Carburetor | Choke style w/bowl drain |
| Throttle Control | Easy-access throttle, choke, shutoff |
| Choke Control | On engine |
| Max. RPM | 3,600 |
| Muffler Included | Yes |
| Auto Compression Release | Yes |
| CARB Approval | Yes |
| Bolt Circle | 3.625 in |
| Mounting Base Length | 6.378 in |
| Mounting Base Width | 3.17 in |
| Dimensions L x W x H (in.) | 13.03 x 13 x 12.87 in |
