JET GH-1440ZX ZX Lathe – 14x40in, Collet Closer
$13,170.00
In Stock
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description

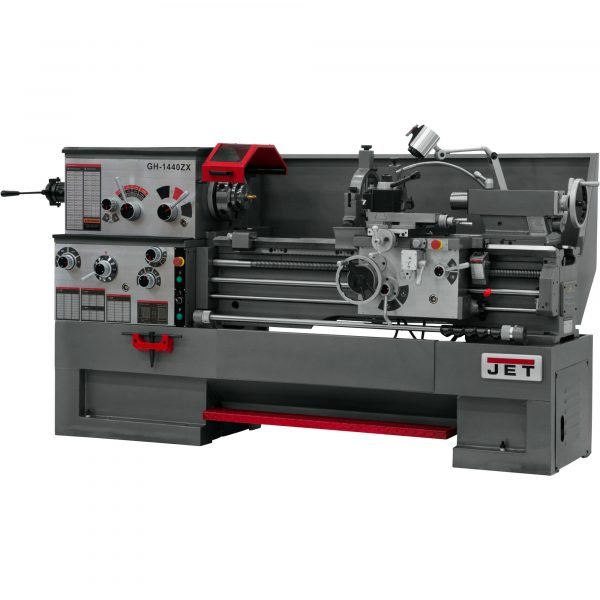

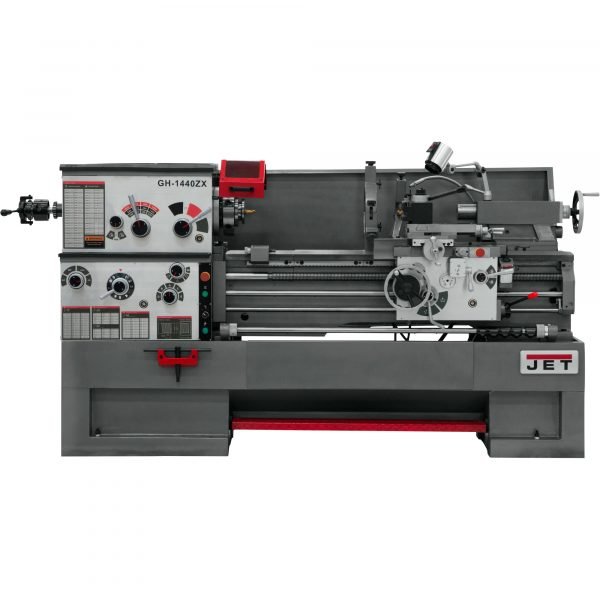

This 14in. x 40in. JET ZX-Series Large Spindle Bore Lathe with Collet Closer provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Includes a collet closer and a host of other features you’ve come to expect in a JET Lathe that is backed by the industry-leading JET 2-year warranty.
What’s Included
- (1) Large spindle bore lathe with collet closer
| Item# | 70592 |
| Brand | Jet |
| Manufacturer’s Warranty | 24 months parts / 24 months labor |
| Ship Weight | 5700.0 lbs |
| Distance Between Centers (in.) | 40 |
| Swing Over Bed (in.) | 14 |
| Volts | 230/460 |
| Horsepower | 7.5 |
| Speed (RPM) | 42–1,800 |
| Spindle Bore (in.) | 3 1/8 |
| Spindle Mount | D1-8 |
| Carriage Travel (in.) | 36 9/16 |
| Thread Cutting (in.) | 1 5/8-72 |
| Thread Cutting (mm) | 0.05–20 |
| Stand Included | Yes |
| Dimensions L x W x H (in.) | 97.5 x 40 x 47 in |
| Product Weight | 5,187 lb |
JET GH-1440ZX ZX Lathe w/ Collet Closer Specs
| Brand | JET |
| Full Model Code | GH-1440ZX (Collet Pack) |
| Country of Origin | Taiwan |
| Lathe Type | Large Spindle Bore Metal Lathe |
| Swing Over Bed | 14 inches |
| Distance Between Centers | 40 inches |
| Spindle Bore | 3-1/8 inches |
| Motor Power | 7.5 HP |
| Electrical Requirement | 230/460 Volts |
| What's Included | (1) Large Spindle Bore Lathe, (1) Collet Closer |
| Product Weight | 5,187 lbs (2,352.78 kg) |
| Machine Dimensions | 97.5 x 40 x 47 in |
| Application | Precision machining in compact footprints requiring rapid repetitive clamping via collet closer. |
