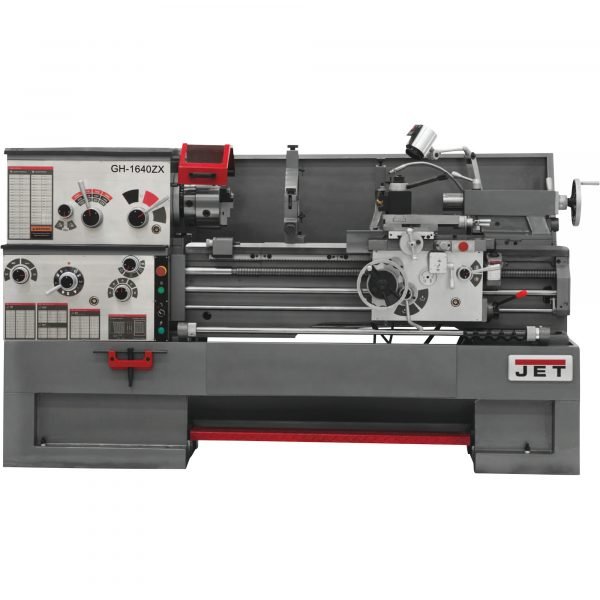

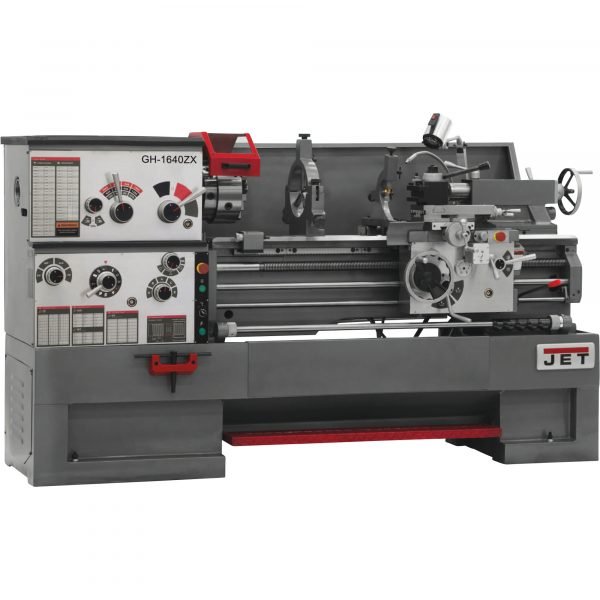

JET GH-1640ZX ZX Large Spindle Bore Metal Lathe – 16in x 40in
$12,068.00
In Stock
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
The 16in. JET ZX Series large spindle bore metal lathe is designed exclusively by with a 3 1/8in. bore spindle supported by two tapered and one ball bearing. Chrome molybdenum headstock gears are hardened, ground and shaved. Universal gearbox allows inch, metric, diametric and module pitch threads, no change gears required. Carriage features one-shot lubrication and Turcite B on bed sliding surfaces.
What’s Included
- (1) Metal lathe
| Item# | 123490 |
| Brand | Jet |
| Manufacturer’s Warranty | 24 months parts / 24 months labor |
| Ship Weight | 5675.0 lbs |
| Distance Between Centers (in.) | 40 |
| Swing Over Bed (in.) | 16 |
| Volts | 230/460 (prewired 230) |
| Horsepower | 7.5 |
| Speed (RPM) | 25–1,800 |
| Spindle Bore (in.) | 3 1/8 |
| Spindle Mount | D1-8 |
| Carriage Travel (in.) | 35 |
| Thread Cutting (in.) | 1 5/8-72 |
| Thread Cutting (mm) | 0.05–20 |
| Stand Included | Yes |
| Dimensions L x W x H (in.) | 96 x 44 x 66 in |
| Product Weight | 5,475 lb |
JET GH-1640ZX ZX Large Spindle Bore Metal Lathe Specs
| Brand | JET |
| Full Model Code | GH-1640ZX |
| Country of Origin | China |
| Lathe Type | ZX Series Large Spindle Bore Lathe |
| Swing Over Bed | 16 inches |
| Distance Between Centers | 40 inches |
| Spindle Bore | 3-1/8 inches |
| Spindle Taper | D1-8 |
| Spindle Speed Range | 25–1,800 RPM |
| Thread Range - Inch | 1-5/8–72 TPI |
| Thread Range - Metric | 0.05–20 mm |
| Bed Coating | Turcite B |
| Motor Power | 7.5 HP |
| Electrical Requirement | 230/460 Volts (Prewired 230) |
| Product Weight | 5,475 lbs (2,483.42 kg) |
| Machine Dimensions | 96 x 44 x 66 in |
| Application | Industrial turning with universal gearbox for complex metric, diametric, and module pitch threading. |
