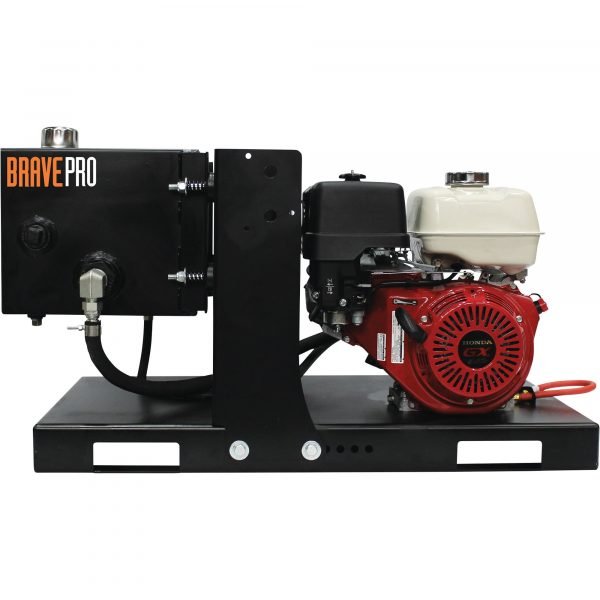

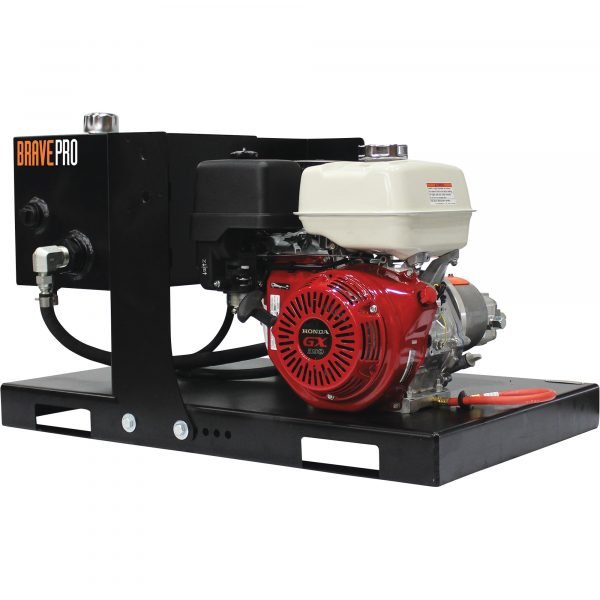

BravePro HBHS300GX Hydraulic Power Pack Honda GX 389cc 5 GPM 3000 PSI 10-Gal.
The BravePro HBHS300GX Hydraulic Power Pack is a skid-frame unit providing extremely high-pressure hydraulic power, utilizing a dependable Honda GX 389cc engine to deliver 5 GPM at a maximum of 3000 PSI. This high-pressure capability is ideal for specialized tasks like jacking, lifting, and tools requiring intense force, all from its compact 10-gallon reservoir. Designed with a durable skid frame, the unit can be easily transported or mounted into equipment as a primary power source, saving wear on existing machinery. The commercial-grade engine and high-pressure rating of the BravePro HBHS300GX Hydraulic unit ensure robust, reliable performance for the most demanding fabrication and construction applications.
Description
This self-contained BravePro Hydraulic Power Pack with Honda GX Series Commercial Engine is compact and offers portable hydraulic power for remotely powering hydraulic equipment. The unit can be mounted into equipment as a primary hydraulic power source. Applications include agriculture, construction, trades, lifting, jacking, equipment repair, fabrication work, and a variety of other attachments and implements to save tractor time and reduce fuel cost. Note: This Hydraulic Power Pack is designed to work in an open center hydraulic system. The pump provided is a fixed displacement gear pump that will deliver flow whenever the engine is running. Not intended to be plumbed into a closed center hydraulic system.
What’s Included
- (1) Hydraulic power pack
| Item# | 73354 |
| Brand | BravePro |
| Manufacturer’s Warranty | 2 years consumer use / 1 year commercial use |
| Ship Weight | 240.0 lbs |
| Flow (GPM) | 5 |
| Max. PSI | 3,000 |
| Max. RPM | 3,600 |
| Inlet Port (in.) | 12 ORB plumbed to reservoir |
| Outlet Port (in.) | 8 Male JIC adapter installed |
| Reservoir Capacity | 9.7-gal. tank |
| Net Power Output (HP) | 11.7 at 3,600 RPM |
| Product Weight | 240 lb |
| Dimensions L x W x H (in.) | 44 x 24.5 x 26 |
BravePro HBHS300GX Hydraulic Power Pack Specs
| Brand | BravePro |
| Full Model Code | HBHS300GX (Item# 73354) |
| Country of Origin | USA |
| Tool Category | Compact Hydraulic Power Pack |
| Action Type | Open Center System |
| Maximum Operating Pressure | 3,000 PSI |
| Capacity Class | 5 GPM Flow Rate |
| Oil Capacity | 9.7 Gallons |
| Coupler Type | 12 ORB (Inlet) / 8 Male JIC (Outlet) |
| Standard Warranty | 2 years consumer / 1 year commercial |
| Product Weight | 240 lbs (108.86 kg) |
| Dimensions | 44 x 24.5 x 26 in |
| Application | Remotely powering heavy equipment in agriculture and fabrication work. |
