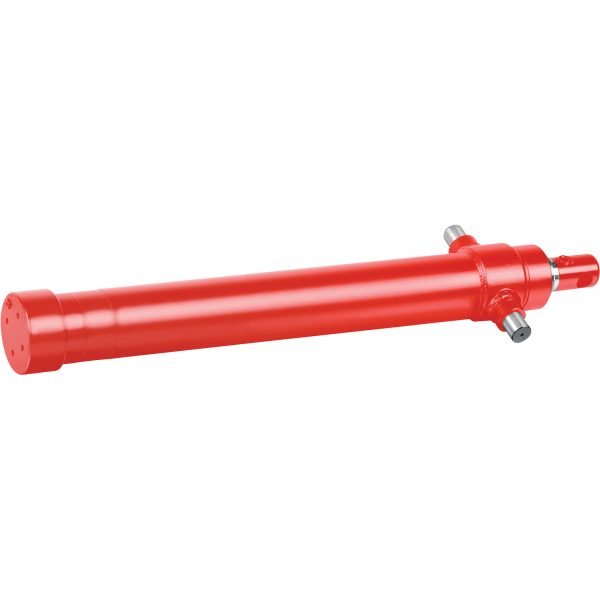

NorTrac 12-Ton Telescopic Hydraulic Cylinder 4.43in. Bore x 144in. Stroke
$559.00
In Stock
The large-scale NorTrac 12-Ton Telescopic Hydraulic Cylinder 4.43in. Bore x 144in. Stroke features an expanded 144-inch stroke configuration engineered to maximize structural tipping angles on elongated trailer chassis. This 12-ton telescopic cylinder relies on induction-hardened chrome-plated sleeves and robust micro-finished sealing surfaces to eliminate fluid bypass hazards under heavy agricultural loads.
In Stock
Wholesale Price
Request for Quotations
NorTrac 12-Ton Telescopic Cylinder w/ Trunnion Specs
| Brand | NorTrac |
| Full Model Code | 66745 |
| Country of Origin | USA |
| Tool Category | Multi-Stage Telescopic Cylinder |
| Maximum Operating Pressure | 2,500 PSI |
| Capacity Class | 12 Ton |
| Stroke / Travel | 144 inches |
| Cylinder Bore Diameter | 4.43 inches |
| Coupler Type | 1/2 in Port / Swivel Trunnion Mount |
| Standard Warranty | Lifetime Limited warranty |
| Product Weight | 166 lbs (75.30 kg) |
| Dimensions | 56.75 x 10.47 x 4.44 in |
| Application | Dump trailer lifting featuring a swivel trunnion mount for improved alignment during long 144" strokes. |
What's Included
- (1) 12-ton telescopic hydraulic cylinder with swivel trunnion mount
