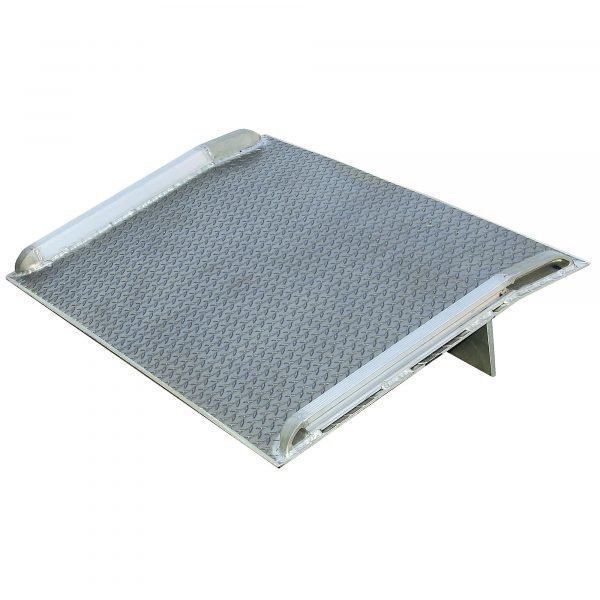

Vestil BTA-07006654 7K Aluminum Dockboard (66in. Wide x 54in. Long)
Vestil BTA-07006654 7K Aluminum Dockboard provides a 7,000lb capacity in a 66-inch wide by 54-inch long format, ideal for compact loading zones.
- Robust 7,000lb Industrial Rating: High-strength aluminum handles heavy industrial machinery and freight.
- Concise 66″ Width: Perfect for mid-sized equipment in narrow bays or restricted dock spaces.
- Safety Side Rails: Painted yellow to improve awareness and guide wheels safely.
- Locking Safety Legs: Essential feature to keep the bridge secure and prevent sliding.
- Diamond Plate Pattern: Provides essential traction for personnel and material handling vehicles.
Description
The Aluminum Truck Dockboard is engineered and built to maximize safety while handling heavy fork trucks and loads. The beveled edge is designed for smooth entry and exit. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbss prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dockboard with capacity at least four times the lifting capacity of fork truck. The width of the dockboard should be at least 15 (in.) wider than the load or equipment passing between the curbss. Bend is 11 degrees and 9in. from the edge and the legs are 12in. from the edge. Manufactured in compliance with OSHA.
What’s Included
- (1) Vestil Aluminum Dockboard BTA Series with both aluminum treadplate and curbs. With Overall Dimensions of 66 X 54 and usable dimenions of 61-1/2 X 54. This dockboard is rated at a 7000 lbs. capacity.
| Item# | 4221636 |
| Brand | Vestil |
| Manufacturer’s Warranty | 3 month limited warranty |
| Ship Weight | 144.0 lbs |
| Capacity | 7,000 lb |
| Ramp Length | 54 in |
| Ramp Width | 66 in |
| Deck Material | Aluminum |
| Dock Thickness | 0.375 in |
| Left Leg Height | 10 in |
| Right Leg Height | 11 in |
| Height Difference | 6 in |
| Usable Ramp Length | 54 in |
| Usable Ramp Width | 61.5 in |
| Curb Material | Aluminum |
| Handle Included | No |
| OSHA Approved | Yes |
| Product Weight | 144.0000 lb |
| Dimensions L x W x H (in.) | 54.0 x 66.0 x 13.75 in |
