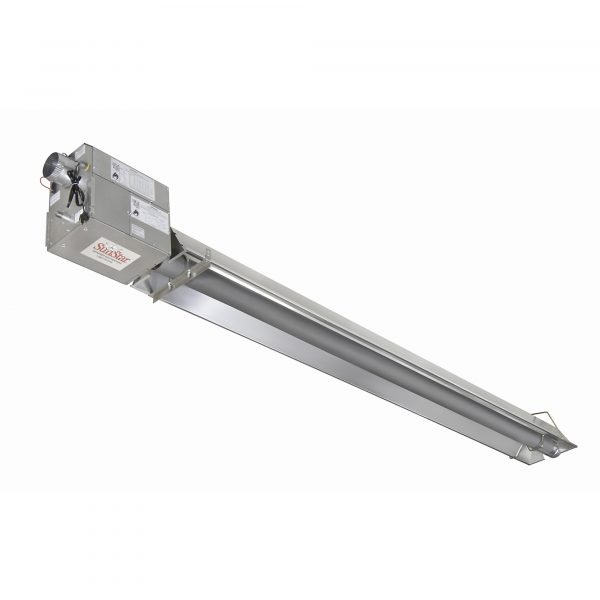

SunStar SPU125-40-N5 U-Tube Positive Pressure Infrared Heater 125,000 BTU Natural Gas
The SunStar SPU125-40-N5 U-Tube Positive Pressure Infrared Heater provides a robust 125,000 BTU output across a 40-foot U-tube length, designed for efficient and durable heating in medium-to-large service facilities using Natural Gas. Utilizing a positive pressure system, the heater maximizes heat transfer to the radiant surface, delivering comfortable, direct warmth to the working area. This model is an excellent, reliable choice for auto repair shops and general commercial facilities. Choose the resilient performance and focused coverage of the SunStar SPU125-40-N5 U-Tube heater for economical and dependable industrial heating solutions.
Description
Offers fuel savings up to 50%. Straight Tube heaters ideal for complete building heating. Positive pressure system pressurizes the combustion chamber. All gas and electrical connection at the same end of the heater. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 40ft. of ducting in fresh air or 40ft. sidewall venting capability. Blower is located inside the burner box. Ideal for applications where minimal noise ( less than 60dB) is desired. Heavy duty permanently lubricated and ball bearing blower motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. External 24V thermostat connection or line voltage operation. Mount heaters as high as possible. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA. Installation and service must be performed by a licensed contractor and must conform to local codes and SunStar’s Installation Instructions. Read the Installation and Operating Instructions for specific Installation requirements prior to purchase. To help pick out the heater that’s right for you, view the Heat Loss Estimating Chart for proper model and heater selection.
What’s Included
- (1) Burner Package: Main Burner and hardware Emitter Tubes and Reflectors
| Item# | 4774564 |
| Brand | SunStar |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 166.0 lbs |
| Fuel Type | Natural Gas |
| Heat Output | 75,000 Btu/hour |
| Heat Type | Infrared |
| Heating Capability | 1,000 ft² |
| Blower Included | Yes |
| Assembled Width | 13 in |
| Assembled Height | 12 in |
| Assembled Depth | 372 in |
| Thermostat Included | No |
| Volts | 120 |
| Amps | 2 |
| Product Weight | 132.8000 lb |
| Dimensions L x W x H (in.) | 372.0 x 13.0 x 8.0 in |
SunStar SPU125-40-N5 Positive Pressure Infrared Heater Specs
| Brand | SunStar |
|---|---|
| Heat Output | 75,000 BTU/hr (Per Table) |
| Heating Capability | 1,000 sq. ft. |
| Fuel Type | Natural Gas |
| Assembled Width | 13 in |
| Assembled Height | 12 in |
| Assembled Depth | 372 in |
| Positive Pressure System | Yes |
| Direct Spark Ignition | Yes |
| 100% Gas Shut-off Safety Control | Yes |
| Internal Blower Included | Yes |
| Diagnostic Monitoring Light System | Yes |
| CSA Certified | Yes |
| What's Included | (1) Burner Package: Main Burner, Hardware, Emitter Tubes, Reflectors |
| Product Weight | 132.8 lb |
| Ship Weight | 166.0 lbs |
| Standard Warranty | 1-Year Limited Warranty |
