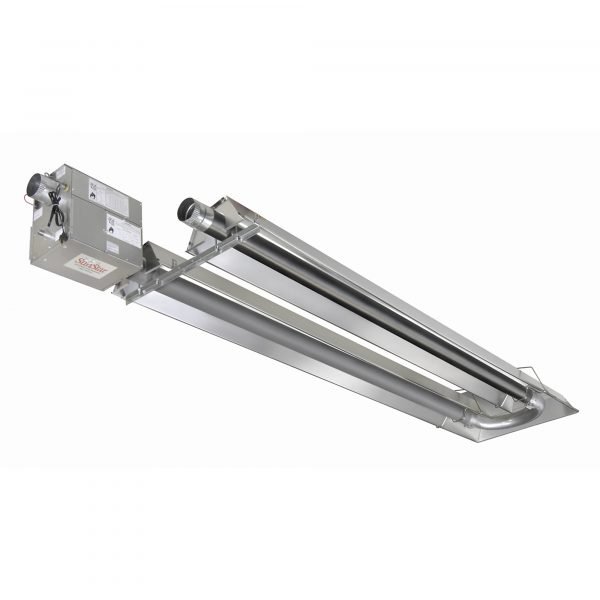

SunStar SPU125-40-TG-N5 Tough Guy U-Tube Positive Pressure Tube Heater 125K BTU
The SunStar SPU125-40-TG-N5 Tough Guy U-Tube Positive Pressure Tube Heater provides a robust 125,000 BTU output across a 40-foot U-tube length, designed for efficient and durable heating in medium-to-large service facilities. The Tough Guy construction ensures resilience against challenging industrial conditions, providing component longevity where standard heaters might fail. Utilizing a positive pressure system, the heater maximizes heat transfer to the radiant surface, delivering comfortable, direct warmth to the working area. This model is an excellent, reliable choice for auto repair shops and general commercial facilities. Choose the resilient performance and focused coverage of the SunStar SPU125-40-TG-N5 Tough heater for economical and dependable industrial heating.
Description
Offers fuel savings up to 50%. Tough Guy U-Tube heaters are ideal for high heat loss areas or spot heating. Positive pressure system pressurizes the combustion chamber. The emitter tubes are made of heat treated aluminized steel. All gas, electrical and flue connections are located at the same end of the heater. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 40ft. of ducting in fresh air or 40ft. sidewall venting capability. Blower is located inside the burner box. Ideal for applications where minimal noise (less than 60dB) is desired. Heavy duty permanently lubricated and ball bearing blower motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. External 24V thermostat connection or line voltage operation. Tough Guy Series is ideal for Car Washes, Greenhouses, Swimming Pools, Waste Water Treatment plants, Dairy Barns and other high humidity environments. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA. Installation and service must be performed by a licensed contractor and must conform to local codes and SunStar’s Installation Instructions. Read the Installation and Operating Instructions for specific Installation requirements prior to purchase. To help pick out the heater and the model that’s right for you, view the Heat Loss Estimating Chart for proper model and heater selection.
What’s Included
- (1) Burner Package: Main Burner and hardware Emitter Tubes and Reflectors
| Item# | 4744824 |
| Brand | SunStar |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 222.0 lbs |
| Fuel Type | Natural Gas |
| Heat Output | 125,000 Btu/hour |
| Heat Type | Infrared |
| Heating Capability | 1,500 ft² |
| Blower Included | Yes |
| Assembled Width | 31 in |
| Assembled Height | 12 in |
| Assembled Depth | 264 in |
| Thermostat Included | No |
| Volts | 120 |
| Amps | 2 |
| Product Weight | 177.6000 lb |
| Dimensions L x W x H (in.) | 264.0 x 31.0 x 8.0 in |
SunStar SIS175-50-TG-L5 Tough Guy Straight Tube Heater Specs
| Brand | SunStar |
|---|---|
| Heat Output | 175,000 BTU/hr |
| Heating Capability | 3,000 sq. ft. |
| Fuel Type | Propane |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 600 in |
| Tough Guy Series High Humidity Build | Yes |
| Straight Tube Configuration | Yes |
| Reliable Direct Spark Ignition | Yes |
| Maintenance-free Ball Bearing Blower | Yes |
| Diagnostic Monitoring Light System | Yes |
| CSA Certified | Yes |
| What's Included | (1) Burner Package: Main Burner, Hardware, Emitter Tubes, Reflectors |
| Product Weight | 187.2 lb |
| Ship Weight | 234.0 lbs |
