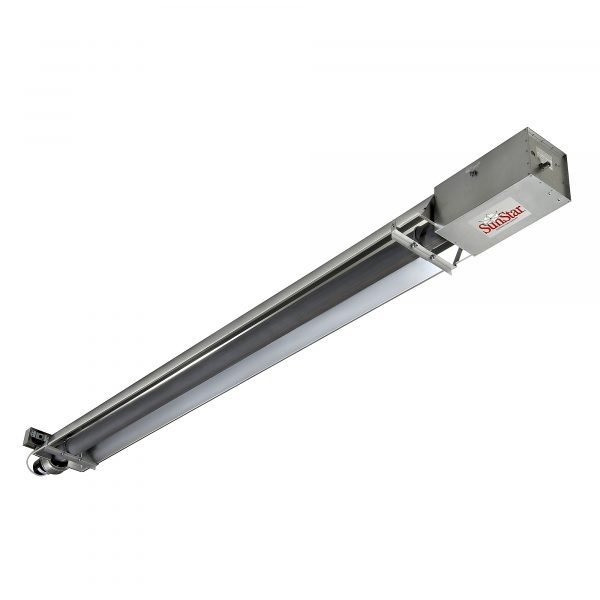

SunStar SIU150-50-N5 U-Tube Vacuum Infrared Heater 150,000 BTU Natural Gas
The SunStar SIU150-50-N5 U-Tube Vacuum Infrared Heater offers a strong 150,000 BTU output across a long 50-foot U-tube, designed for efficient heating in expansive commercial environments. This Natural Gas unit uses a vacuum (negative pressure) system, ensuring superior heat transfer efficiency and enhancing safety by preventing flue gas leakage. The U-tube configuration ensures uniform radiant coverage across large work areas. The robust construction and balanced output of the SunStar SIU150-50-N5 U-Tube heater make it a dependable, cost-effective solution for consistent, long-term heating performance in industrial facilities.
Description
Offers fuel savings up to 50%. Straight Tube heaters ideal for complete building heating. Vacuum system pulls products of combustion through combustion chamber for increased radiant efficiency and greater safety. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 50ft. of ducting in fresh air and 75ft. sidewall venting capability. Vacuum system features a totally enclosed combustion chamber. Heavy duty draft inducer assembly features permanently lubricated totally enclosed ball bearing motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA. Installation and service must be performed by a licensed contractor and must conform to local codes and SunStar’s Installation Instructions. Read the Installation and Operating Instructions for specific Installation requirements prior to purchase. To help pick out the heater that’s right for you, view the Heat Loss Estimating Chart for proper model and heater selection.
What’s Included
- (1) Burner Package: Main Burner and hardware Emitter Tubes and Reflectors
| Item# | 4745472 |
| Brand | SunStar |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 198.0 lbs |
| Fuel Type | Natural Gas |
| Heat Output | 150,000 Btu/hour |
| Heat Type | Infrared |
| Heating Capability | 2,000 ft² |
| Blower Included | Yes |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 480 in |
| Thermostat Included | No |
| Volts | 120 |
| Amps | 3 |
| Product Weight | 158.4000 lb |
| Dimensions L x W x H (in.) | 480.0 x 13.0 x 8.0 in |
SunStar SIU150-50-N5 Vacuum Infrared Heater Specs
| Brand | SunStar |
|---|---|
| Heat Output | 150,000 BTU/hr (Per Table) |
| Heating Capability | 2,000 sq. ft. |
| Fuel Type | Natural Gas |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 480 in |
| Vacuum Combustion System | Yes |
| Reliable Direct Spark Ignition | Yes |
| 100% Gas Shut-off Safety Control | Yes |
| Diaphragm Air Switch Included | Yes |
| CSA Certified | Yes |
| Made in the USA | Yes |
| What's Included | (1) Burner Package: Main Burner, Hardware, Emitter Tubes, Reflectors |
| Product Weight | 158.4 lb |
| Ship Weight | 198.0 lbs |
