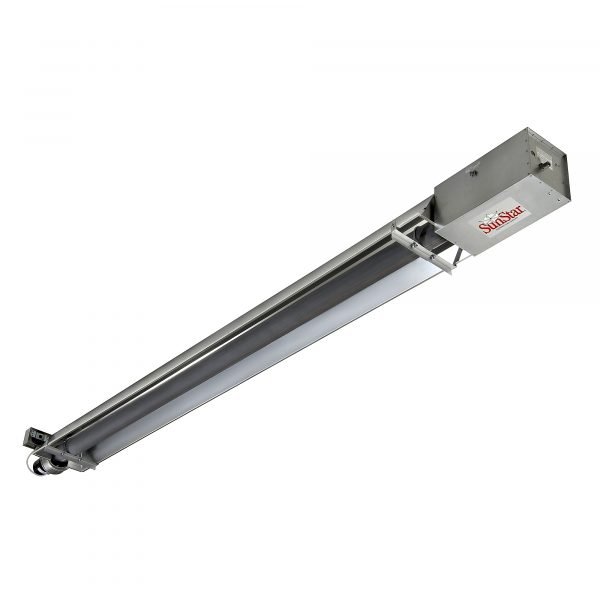

SunStar SIU150-50-TG-L5 Tough Guy U-Tube Vacuum Infrared Heater 150,000 BTU Propane
In Stock
$752.00
In Stock
The SunStar SIU150-50-TG-L5 Tough Guy U-Tube Vacuum Infrared Heater offers a strong 150,000 BTU output across a long 50-foot U-tube, designed for durable and efficient heating in expansive commercial environments. This Propane-fired Tough Guy model uses a vacuum (negative pressure) system, ensuring superior heat transfer efficiency and enhancing safety by preventing flue gas leakage. The U-tube configuration ensures uniform radiant coverage across large work areas. The robust construction and balanced output of the SunStar SIU150-50-TG-L5 Tough heater make it a dependable, cost-effective solution for consistent, long-term heating performance in demanding industrial facilities.
Description
Offers fuel savings up to 50%. Straight Tube heaters ideal for complete building heating. Vacuum system pulls products of combustion through combustion chamber for increased radiant efficiency and greater safety. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 50ft. of ducting in fresh air and 75ft. sidewall venting capability. Vacuum system features a totally enclosed combustion chamber. Heavy duty draft inducer assembly features permanently lubricated totally enclosed ball bearing motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA. Installation and service must be performed by a licensed contractor and must conform to local codes and SunStar’s Installation Instructions. Read the Installation and Operating Instructions for specific Installation requirements prior to purchase. To help pick out the heater that’s right for you, view the Heat Loss Estimating Chart for proper model and heater selection.
What’s Included
- (1) Burner Package: Main Burner and hardware Emitter Tubes and Reflectors
| Item# | 4745018 |
| Brand | SunStar |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 198.0 lbs |
| Fuel Type | Propane |
| Heat Output | 100,000 Btu/hour |
| Heat Type | Infrared |
| Heating Capability | 1,250 ft² |
| Blower Included | Yes |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 480 in |
| Thermostat Included | No |
| Volts | 120 |
| Amps | 3 |
| Product Weight | 158.4000 lb |
| Dimensions L x W x H (in.) | 480.0 x 13.0 x 8.0 in |
SunStar SIU150-50-TG Tough Guy Vacuum Infrared Heater Specs
| Brand | SunStar |
|---|---|
| Heat Output | 100,000 BTU/hr (Per Table) |
| Heating Capability | 1,250 sq. ft. |
| Fuel Type | Propane (Per Table) |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 480 in |
| Positive Pressure System | Yes |
| Direct Spark Ignition | Yes |
| 100% Gas Shut-off Safety Control | Yes |
| Internal Blower Included | Yes |
| Ball Bearing Blower Motor | Yes |
| CSA Certified | Yes |
| Made in the USA | Yes |
| What's Included | (1) Burner Package: Main Burner, Hardware, Emitter Tubes, Reflectors |
| Product Weight | 158.4 lb |
| Ship Weight | 198.0 lbs |
Reviews
There are no reviews yet.
