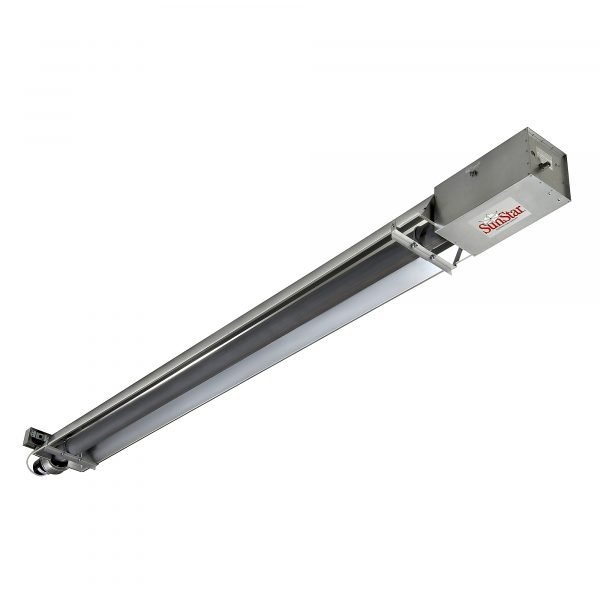

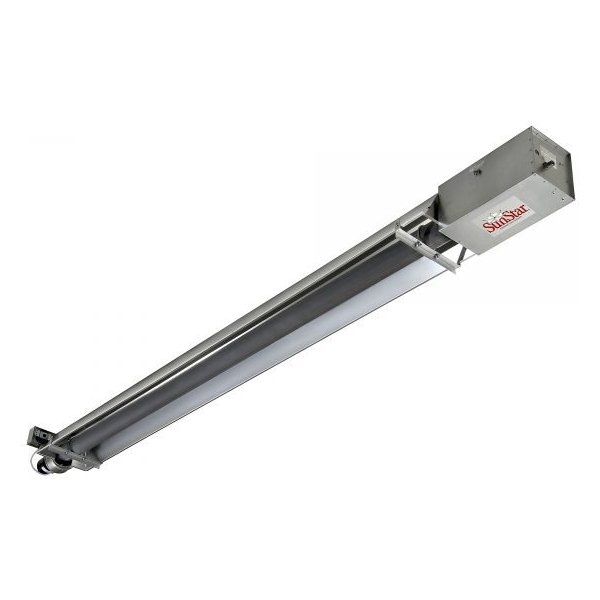

SunStar SIS125-40-TG-N5 Tough Guy Straight Vacuum Infrared Tube Heater 125K BTU
The SunStar SIS125-40-TG-N5 Tough Guy Straight Vacuum Infrared Tube Heater provides 125,000 BTU across a 40-foot straight tube, engineered for durable, linear radiant coverage in medium-to-large service facilities. This Tough Guy model incorporates the safety and superior thermal efficiency of a vacuum (negative pressure) system, maximizing heat transfer and minimizing heat loss. The straight tube configuration is perfect for uniform heating along long work bays and machinery areas. The robust construction and balanced output of the SunStar SIS125-40-TG-N5 Tough heater ensure reliable, long-lasting performance and significant energy savings in demanding industrial environments.
Description
Offers fuel savings up to 50%. Tough Guy Straight Tube heaters ideal for complete building heating and can be installed in high humidity or corrosive environments. The emitter tubes are made of heat treated aluminized steel. Vacuum system pulls products of combustion through combustion chamber for increased radiant efficiency and greater safety. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 50ft. of ducting in fresh air and 75ft. sidewall venting capability. Vacuum system features a totally enclosed combustion chamber. Heavy duty draft inducer assembly features permanently lubricated totally enclosed ball bearing motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA. Installation and service must be performed by a licensed contractor and must conform to local codes and SunStar’s Installation Instructions. Read the Installation and Operating Instructions for specific Installation requirements prior to purchase. To help pick out the heater that’s right for you, view the Heat Loss Estimating Chart for proper model and heater selection.
What’s Included
- (1) Burner Package: Main Burner and hardware Emitter Tubes and Reflectors
| Item# | 4745106 |
| Brand | SunStar |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 198.0 lbs |
| Fuel Type | Natural Gas |
| Heat Output | 125,000 Btu/hour |
| Heat Type | Infrared |
| Heating Capability | 1,500 ft² |
| Blower Included | Yes |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 480 in |
| Thermostat Included | No |
| Volts | 120 |
| Amps | 3 |
| Product Weight | 158.4000 lb |
| Dimensions L x W x H (in.) | 480.0 x 13.0 x 8.0 in |
SunStar SIS125-40-TG-N5 Tough Guy Vacuum Heater Specs
| Brand | SunStar |
|---|---|
| Heat Output | 175,000 BTU/hr (Per Table) |
| Heating Capability | 3,000 sq. ft. |
| Fuel Type | Natural Gas |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 600 in |
| Vacuum Pull System | Yes |
| Totally Enclosed Combustion Chamber | Yes |
| Reliable Direct Spark Ignition | Yes |
| 100% Gas Shut-off Safety Control | Yes |
| Maintenance-Free Draft Inducer | Yes |
| Tough Guy Corrosive Resistant Build | Yes |
| What's Included | (1) Burner Package: Main Burner, Hardware, Emitter Tubes, Reflectors |
| Product Weight | 187.2 lb |
| Ship Weight | 234.0 lbs |
