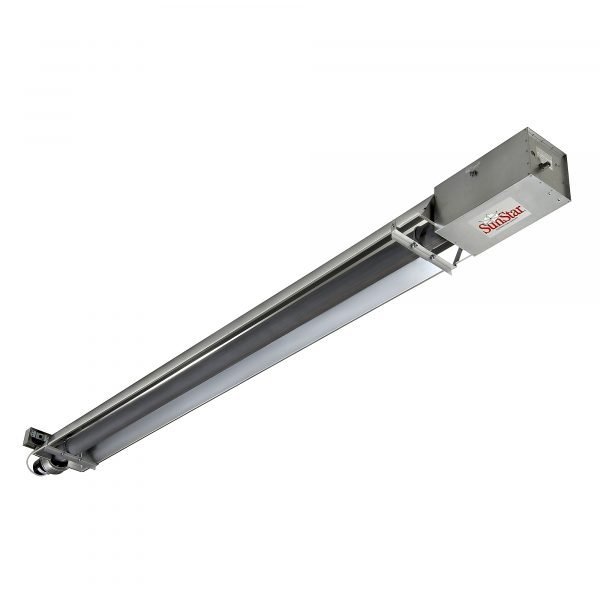

SunStar SIS100-40-TG-N5 Tough Guy Straight Vacuum Infrared Tube Heater 100K BTU
The SunStar SIS100-40-TG-N5 Tough Guy Straight Vacuum Infrared Tube Heater delivers 100,000 BTU across a 40-foot straight tube, providing excellent linear radiant coverage for medium-sized commercial spaces. This Tough Guy model utilizes a vacuum (negative pressure) system, which maximizes heat transfer efficiency and offers enhanced safety by containing combustion products. Ideal for long service aisles, the straight configuration ensures focused, uniform warmth directly to the floor. Choose the durable construction, efficiency, and reliable performance of the SunStar SIS100-40-TG-N5 Tough heater for cost-effective and comfortable commercial heating solutions.
Description
Offers fuel savings up to 50%. Tough Guy Straight Tube heaters ideal for complete building heating and can be installed in high humidity or corrosive environments. The emitter tubes are made of heat treated aluminized steel. Vacuum system pulls products of combustion through combustion chamber for increased radiant efficiency and greater safety. Reliable direct spark ignition and 100% gas shut-off safety control. Up to 50ft. of ducting in fresh air and 75ft. sidewall venting capability. Vacuum system features a totally enclosed combustion chamber. Heavy duty draft inducer assembly features permanently lubricated totally enclosed ball bearing motor for maintenance-free operation. Highly efficient aluminum reflectors. Includes diaphragm air switch, heavy duty cast iron burner and burner inspection sight glass. Diagnostic monitoring light system. 120V supply required. CSA certified. 5 Year Limited Warranty on tubes. 1 Year Limited Warranty on unit. Made in the USA. Installation and service must be performed by a licensed contractor and must conform to local codes and SunStar’s Installation Instructions. Read the Installation and Operating Instructions for specific Installation requirements prior to purchase. To help pick out the heater that’s right for you, view the Heat Loss Estimating Chart for proper model and heater selection.
What’s Included
- (1) Burner Package: Main Burner and hardware Emitter Tubes and Reflectors
| Item# | 4745237 |
| Brand | SunStar |
| Manufacturer’s Warranty | 1 year limited warranty |
| Ship Weight | 198.0 lbs |
| Fuel Type | Natural Gas |
| Heat Output | 100,000 Btu/hour |
| Heat Type | Infrared |
| Heating Capability | 1,250 ft² |
| Blower Included | Yes |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 480 in |
| Thermostat Included | No |
| Volts | 120 |
| Amps | 3 |
| Product Weight | 158.4000 lb |
| Dimensions L x W x H (in.) | 480.0 x 13.0 x 8.0 in |
SunStar SIS100-40-TG-N5 Tough Guy Straight Vacuum Tube Heater Specs
| Brand | SunStar |
|---|---|
| Heat Output | 100,000 BTU/hr |
| Heating Capability | 1,250 sq. ft. |
| Fuel Type | Natural Gas |
| Assembled Width | 13 in |
| Assembled Height | 8 in |
| Assembled Depth | 480 in |
| Vacuum Radiant Efficiency Pull | Yes |
| Heat Treated Aluminized Steel Tubes | Yes |
| Direct Spark Ignition | Yes |
| 100% Gas Shut-off Safety | Yes |
| Sidewall Venting Capability (75ft) | Yes |
| Made in the USA | Yes |
| What's Included | (1) Burner Package: Main Burner, Hardware, Emitter Tubes, Reflectors |
| Product Weight | 158.4 lb |
| Ship Weight | 198.0 lbs |
