Rolair 13GR60HK30 Air Compressor – 13HP 60Gal
Rapid Air Displacement: Supplies 23 CFM @90PSI.
Large Horizontal Reservoir: Provides massive air storage.
Industrial Honda Engine: Ensures reliable worksite performance.
Rugged Cast Iron: Promotes superior heat dissipation.
Remote Production Focus: Drives large pneumatic machinery.
Description

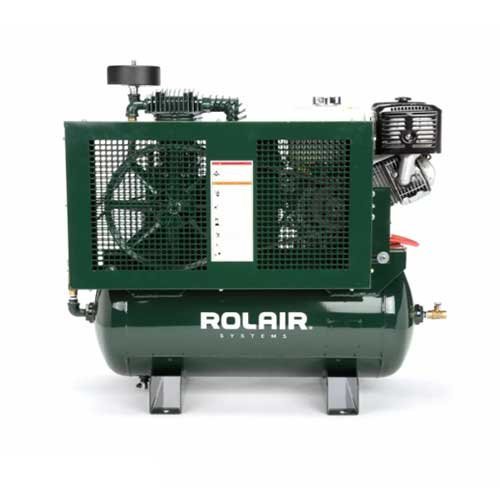

Rolair 13GR60HK30 13HP 60 Gallon Truck Mount
The Rolair 13GR60HK30 is a premier gasoline-powered truck-mounted compressor designed for heavy-duty mobile service and agricultural maintenance. Driven by a powerful 13HP Honda GX390 OHV engine with electric start, this 60-gallon horizontal unit delivers 23.0 CFM at 175 PSI, providing the high-volume airflow required for multiple impact tools in remote field environments.
Mechanical longevity is secured through a two-stage cast-iron pump with an aluminum head for rapid heat dissipation. Selecting industrial reciprocating air compressors from the Rolair Truck Mount series provides automatic engine idle control and an atmospheric unloading system to increase fuel efficiency during demanding outdoor service cycles.
Rolair 13GR60HK30 Key Features
- Tank Size: 60 Gallon ASME
- Lubrication: Splash Lubricated Pump
- Starting System: Electric Start Engine
- Fuel System: Gasoline Honda GX390
- Max Pressure: 175 PSI Rating
- Air Displacement: 23.0 CFM Delivery
- Warranty: 1 Year Unit
Heavy Duty Truck Build
The unit features a 100% cast-iron cylinder pump with ball bearings and bearing inserts on the connecting rods to ensure maximum structural integrity. The 60-gallon horizontal tank is ASME certified and features a heavy-duty powder-coated finish to withstand truck-bed vibration. A totally enclosed steel belt guard protects the drive system from environmental debris and mechanical impact.
Field Service and Agriculture
Ideally suited for roadside assistance vehicles, heavy construction sites, and large-scale farming operations, this model provides the airflow of a stationary shop in a mobile package. The automatic pilot valve operation and Schmidt belt tightening device simplify field maintenance and ensure consistent pressure delivery. Technical users value the 13GR60HK30 for its reliable starting power and durability.
Deploy the Rolair 13GR60HK30 to secure industrial-grade pneumatic power for your mobile service fleet. Contact our technical team to Request Technical Quote or Check Availability at Muldepot.com.
Rolair 13GR60HK30 Air Compressor Specs
| Brand | Rolair |
| Full Model Code | 13GR60HK30 |
| Country of Origin | USA |
| Compressor Type | Reciprocating Piston (Two-Stage) |
| Lubrication Style | Splash Lubricated |
| Cooling System | Air Cooled |
| Motor Power | 13 HP |
| Max Working Pressure | 175 Psi |
| Free Air Delivery / Capacity | 24.0 CFM @ 175 Psi |
| Drive Type | Belt Drive (Gasoline Engine - Honda GX390) |
| Noise Level | 84-88 dB(A) |
| Outlet Connection Size | 3/4 Inch NPT |
| Tank Volume | 60 Gallons (Horizontal) |
| Dimension (LxWxH) | 1168 x 610 x 1143 mm |
| Net Weight | 215 kg |
| Control Panel Type | Engine Mounted Controls / Electric Start |
| Voltage/Phase/Frequency | N/A (Gasoline Engine) |
| Standard Warranty | 1 Year Limited |
| Maintenance Interval | 500 Hours |
| Application | Remote industrial maintenance and heavy-duty field service trucks requiring high-pressure gasoline-powered air. |
