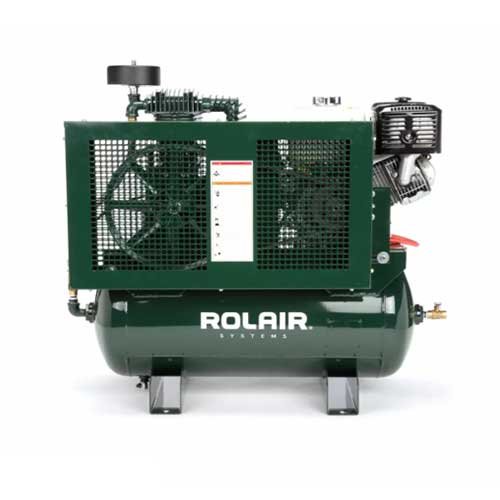

Rolair 13GRBMHK30 Air Compressor – 13HP Base Mount
In Stock
$2,100.00
In Stock
Rolair 13GRBMHK30 Air Compressor is a 13 HP gasoline-powered 175 PSI base-mount system delivering high-volume airflow for heavy-duty service truck and industrial field applications.
Extreme Flow Output: Delivers 23.0 CFM @175PSI.
Compact Base Mount: Optimizes service truck space.
Honda GX390 Engine: Ensures reliable worksite performance.
Atmospheric Unloading System: Promotes superior fuel efficiency.
Field Service Application: Powers heavy pneumatic tools.
Description
Rolair 13GRBMHK30 13HP Base Mount Compressor
The Rolair 13GRBMHK30 is a high-output gasoline-powered base-mount compressor designed for seamless integration into service vehicle bodies and specialized machinery skids. Driven by a 13HP Honda GX390 engine, this unit delivers a potent 23.0 CFM at 175 PSI. This base-mounted configuration is ideal for applications where space is at a premium or where an external air receiver is already integrated into the vehicle’s chassis.
Mechanical reliability is secured through a two-stage, splash-lubricated pump featuring cast-iron cylinders and Swedish lamellar reed valves for maximum efficiency. Selecting industrial reciprocating air compressors like the 13GR series ensures a high volumetric efficiency ratio, providing the cool, dry air needed for high-demand pneumatic tools without the added weight of an integrated tank receiver.
Rolair 13GRBMHK30 Key Features
- Tank Size: Base Mount Configuration
- Lubrication: Splash Lubrication System
- Starting System: Electric Start Honda
- Fuel System: Gasoline Honda GX390
- Max Pressure: 175 PSI Rating
- Air Displacement: 23.0 CFM Delivery
- Warranty: 1 Year Limited
Modular Service Skid Design
The unit features a heavy steel base plate and a totally enclosed steel belt guard, making it ready for bolt-down installation on service trucks or mobile power units. It includes an automatic pilot valve operation and a Schmidt belt tightening device to simplify maintenance in field environments. The Honda GX390 engine provides an integrated alternator and a low-oil shutdown feature to protect the system during operations.
Specialized Mobile Maintenance
Ideally suited for custom mobile repair units, bridge painting skids, and agricultural service trucks, this base-mount model offers maximum installation flexibility. The aluminum head and crankcase facilitate rapid heat dissipation, ensuring the pump remains cool even during continuous-duty field work. Technical technicians value the 13GRBMHK30 for its compact footprint and the massive airflow provided by its 13HP power plant.
Equip your custom service machinery with the rugged power and modular efficiency of the Rolair 13GRBMHK30 base-mount compressor. Contact our technical team to Request Technical Quote or Check Availability at Muldepot.com.
Rolair 13GRBMHK30 Air Compressor Specs
| Brand | Rolair |
| Full Model Code | 13GRBMHK30 |
| Country of Origin | USA |
| Compressor Type | Reciprocating Piston (Two-Stage) |
| Lubrication Style | Splash Lubricated |
| Cooling System | Air Cooled |
| Motor Power | 13 HP |
| Max Working Pressure | 175 Psi |
| Free Air Delivery / Capacity | 24.0 CFM @ 175 Psi |
| Drive Type | Belt Drive (Gasoline Engine - Honda GX390) |
| Noise Level | 84-88 dB(A) |
| Outlet Connection Size | 3/4 Inch NPT |
| Tank Volume | N/A (Base Mount) |
| Dimension (LxWxH) | 1016 x 559 x 610 mm |
| Net Weight | 145 kg |
| Control Panel Type | Engine Mounted Controls / Electric Start |
| Voltage/Phase/Frequency | N/A (Gasoline Engine) |
| Standard Warranty | 1 Year Limited |
| Maintenance Interval | 500 Hours |
| Application | Integration into custom service truck bodies or remote industrial air systems where space is optimized. |
